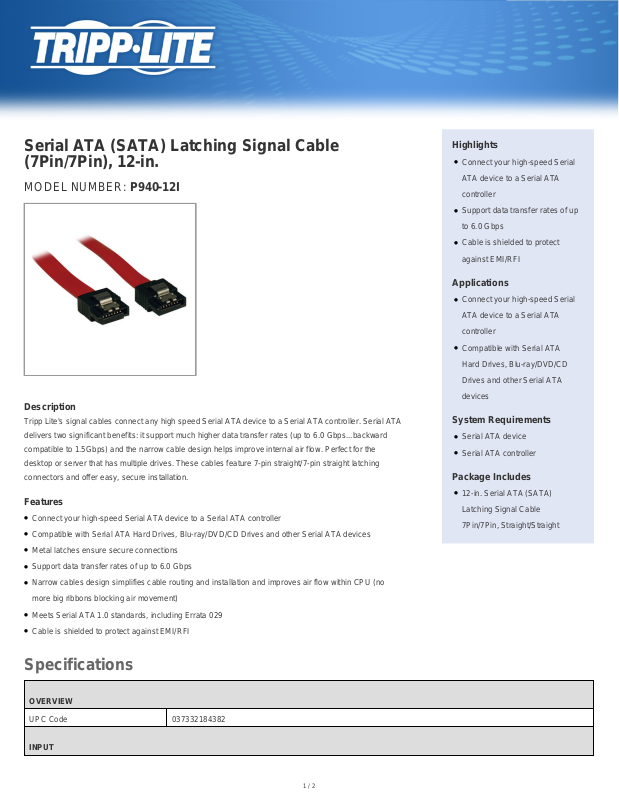

Tripp-Lite P940-12I Data Sheet

Serial ATA (SATA) Latching Signal Cable
(7Pin/7Pin), 12-in.

MODEL NUMBER: P940-12I

Description

Tripp Lite's signal cables connect any high speed Serial ATA device to a Serial ATA controller. Serial ATA
delivers two significant benefits: it support much higher data transfer rates (up to 6.0 Gbps...backward
compatible to 1.5Gbps) and the narrow cable design helps improve internal air flow. Perfect for the
desktop or server that has multiple drives. These cables feature 7-pin straight/7-pin straight latching
connectors and offer easy, secure installation.

Features

●

Connect your high-speed Serial ATA device to a Serial ATA controller

●

Compatible with Serial ATA Hard Drives, Blu-ray/DVD/CD Drives and other Serial ATA devices

●

Metal latches ensure secure connections

●

Support data transfer rates of up to 6.0 Gbps

●

Narrow cables design simplifies cable routing and installation and improves air flow within CPU (no
more big ribbons blocking air movement)

●

Meets Serial ATA 1.0 standards, including Errata 029

●

Cable is shielded to protect against EMI/RFI

Highlights

●

Connect your high-speed Serial
ATA device to a Serial ATA
controller

●

Support data transfer rates of up
to 6.0 Gbps

●

Cable is shielded to protect
against EMI/RFI

Applications

●

Connect your high-speed Serial
ATA device to a Serial ATA
controller

●

Compatible with Serial ATA
Hard Drives, Blu-ray/DVD/CD
Drives and other Serial ATA
devices

System Requirements

●

Serial ATA device

●

Serial ATA controller

Package Includes

●

12-in. Serial ATA (SATA)
Latching Signal Cable
7Pin/7Pin, Straight/Straight

Specifications

OVERVIEW

UPC Code 037332184382

INPUT

1 / 2

Cable Length (ft.) 1
Cable Length (m) 0.3
Cable Length (in.) 12
Cable Length (cm) 30.48

PHYSICAL

Cable Outer Diameter (OD) 2.4/8.0mm
Color Red
Shipping Dimensions (hwd / cm) 0.32 x 10.16 x 15.24
Shipping Dimensions (hwd / in.) 0.12 x 4.00 x 6.00
Shipping Weight (kg) 0.02
Shipping Weight (lbs.) 0.04
Wire Gauge (AWG) 26

CONNECTIONS

Side A - Connector 1 7 PIN SATA STRAIGHT (MALE)
Side B - Connector 1 7 PIN SATA STRAIGHT (MALE)

FEATURES & SPECIFICATIONS

Technology SATA/eSATA

STANDARDS & COMPLIANCE

Certifications ROHS

WARRANTY

Product Warranty Period
(Worldwide)

Lifetime limited warranty
