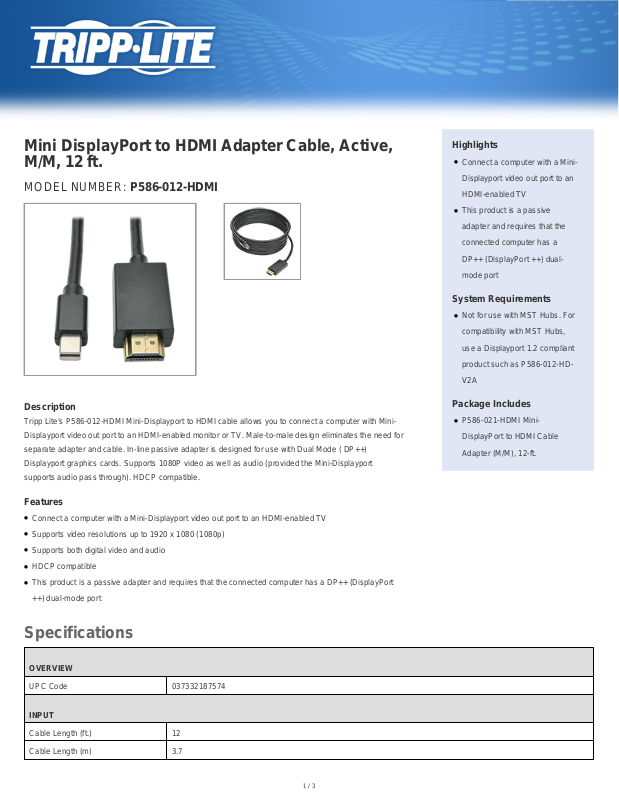

Tripp-Lite P586-012-HDMI Data Sheet

Mini DisplayPort to HDMI Adapter Cable, Active,
M/M, 12 ft.

MODEL NUMBER: P586-012-HDMI

Highlights

●

Connect a computer with a Mini­Displayport video out port to an
HDMI-enabled TV

●

This product is a passive
adapter and requires that the
connected computer has a
DP++ (DisplayPort ++) dual­mode port

System Requirements

●

Not for use with MST Hubs. For
compatibility with MST Hubs,
use a Displayport 1.2 compliant
product such as P586-012-HD­V2A

Description

Tripp Lite's P586-012-HDMI Mini-Displayport to HDMI cable allows you to connect a computer with Mini­Displayport video out port to an HDMI-enabled monitor or TV. Male-to-male design eliminates the need for
separate adapter and cable. In-line passive adapter is designed for use with Dual Mode ( DP++)
Displayport graphics cards. Supports 1080P video as well as audio (provided the Mini-Displayport
supports audio pass through). HDCP compatible.

Features

●

Connect a computer with a Mini-Displayport video out port to an HDMI-enabled TV

●

Supports video resolutions up to 1920 x 1080 (1080p)

●

Supports both digital video and audio

●

HDCP compatible

●

This product is a passive adapter and requires that the connected computer has a DP++ (DisplayPort
++) dual-mode port

Specifications

OVERVIEW

UPC Code 037332187574

Package Includes

●

P586-021-HDMI Mini­DisplayPort to HDMI Cable
Adapter (M/M), 12-ft.

INPUT

Cable Length (ft.) 12
Cable Length (m) 3.7

1 / 3

Cable Length (in.) 144

PHYSICAL

Cable Jacket Rating VW-1
Cable Outer Diameter (OD) 4.8mm
Color Black
Material of Construction ABS, PVC
Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 1.27
Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Weight (kg) 0.20
Shipping Weight (lbs.) 0.44
Wire Gauge (AWG) 32

ENVIRONMENTAL

Operating Temperature Range 32 to 113 F (0 to 45 C)
Storage Temperature Range 14 to 158 F (-10 to 70 C)
Operating Humidity Range 10 to 85%, Non-Condensing
Storage Humidity Range 5 to 90%, Non-Condensing

CONNECTIONS

Side A - Connector 1 MINI DISPLAYPORT (MALE)
Side B - Connector 1 HDMI (MALE)
Connector Plating Gold; Nickel
Contact Plating Gold

FEATURES & SPECIFICATIONS

Max Supported Video Resolution 1920 x 1080 (1080p)
Displayport Specification 1.1a
HDMI Specification 1.3
HDCP Specification 1.3
Max Supported Color Depth 12-bit True Color
Technology HDMI; DisplayPort
Chroma Sub Sampling 4:4:4

STANDARDS & COMPLIANCE

Certifications CE, FCC, RoHS, REACH

2 / 3

WARRANTY

Product Warranty Period
(Worldwide)

Product Warranty Period (U.S. &
Canada)

3-year limited warranty

3-year limited warranty
