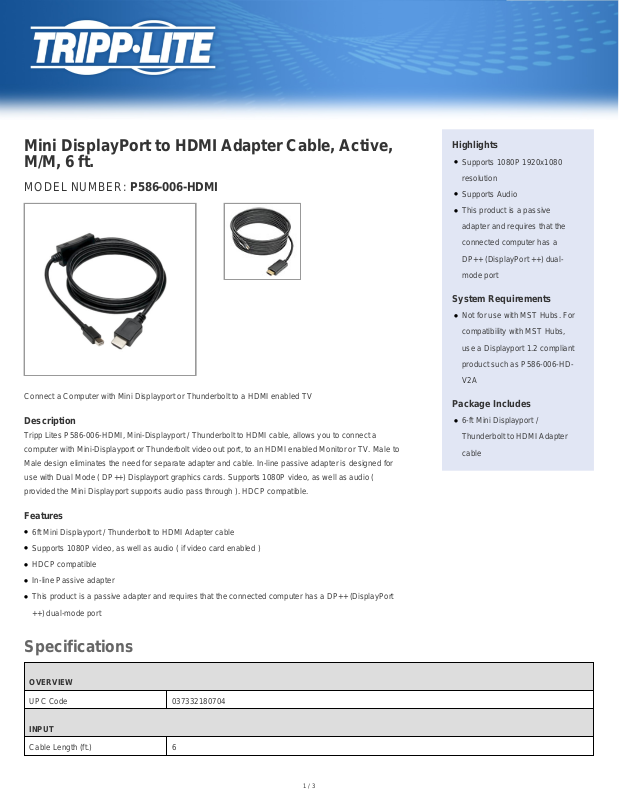

Tripp-Lite P586-006-HDMI Data Sheet

Mini DisplayPort to HDMI Adapter Cable, Active,
M/M, 6 ft.

MODEL NUMBER: P586-006-HDMI

Connect a Computer with Mini Displayport or Thunderbolt to a HDMI enabled TV

Description

Tripp Lites P586-006-HDMI, Mini-Displayport / Thunderbolt to HDMI cable, allows you to connect a
computer with Mini-Displayport or Thunderbolt video out port, to an HDMI enabled Monitor or TV. Male to
Male design eliminates the need for separate adapter and cable. In-line passive adapter is designed for
use with Dual Mode ( DP++) Displayport graphics cards. Supports 1080P video, as well as audio (
provided the Mini Displayport supports audio pass through ). HDCP compatible.

Highlights

●

Supports 1080P 1920x1080
resolution

●

Supports Audio

●

This product is a passive
adapter and requires that the
connected computer has a
DP++ (DisplayPort ++) dual­mode port

System Requirements

●

Not for use with MST Hubs. For
compatibility with MST Hubs,
use a Displayport 1.2 compliant
product such as P586-006-HD­V2A

Package Includes

●

6-ft Mini Displayport /
Thunderbolt to HDMI Adapter
cable

Features

●

6ft Mini Displayport / Thunderbolt to HDMI Adapter cable

●

Supports 1080P video, as well as audio ( if video card enabled )

●

HDCP compatible

●

In-line Passive adapter

●

This product is a passive adapter and requires that the connected computer has a DP++ (DisplayPort
++) dual-mode port

Specifications

OVERVIEW

UPC Code 037332180704

INPUT

Cable Length (ft.) 6

1 / 3

Cable Length (m) 1.8
Cable Length (in.) 72

PHYSICAL

Cable Jacket Rating VW-1
Cable Outer Diameter (OD) 4.8mm
Color Black
Material of Construction ABS, PVC
Shipping Dimensions (hwd / cm) 0.64 x 12.70 x 21.08
Shipping Dimensions (hwd / in.) 0.25 x 5.00 x 8.30
Shipping Weight (kg) 0.05
Shipping Weight (lbs.) 0.10
Wire Gauge (AWG) 32

ENVIRONMENTAL

Operating Temperature Range 32 to 113 F (0 to 45 C)
Storage Temperature Range 14 to 158 F (-10 to 70 C)
Operating Humidity Range 10 to 85%, Non-Condensing
Storage Humidity Range 5 to 90%, Non-Condensing

CONNECTIONS

Side A - Connector 1 MINI DISPLAYPORT (MALE)
Side B - Connector 1 HDMI (MALE)
Connector Plating Gold; Nickel
Contact Plating Gold

FEATURES & SPECIFICATIONS

Max Supported Video Resolution 1920 x 1080 (1080p)
Displayport Specification 1.1a
HDMI Specification 1.3
HDCP Specification 1.3
Max Supported Color Depth 12-bit True Color
Technology HDMI; DisplayPort
Chroma Sub Sampling 4:4:4

STANDARDS & COMPLIANCE

Certifications CE, FCC, RoHS, REACH

2 / 3

WARRANTY

Product Warranty Period
(Worldwide)

Product Warranty Period (U.S. &
Canada)

3-year limited warranty

3-year limited warranty
