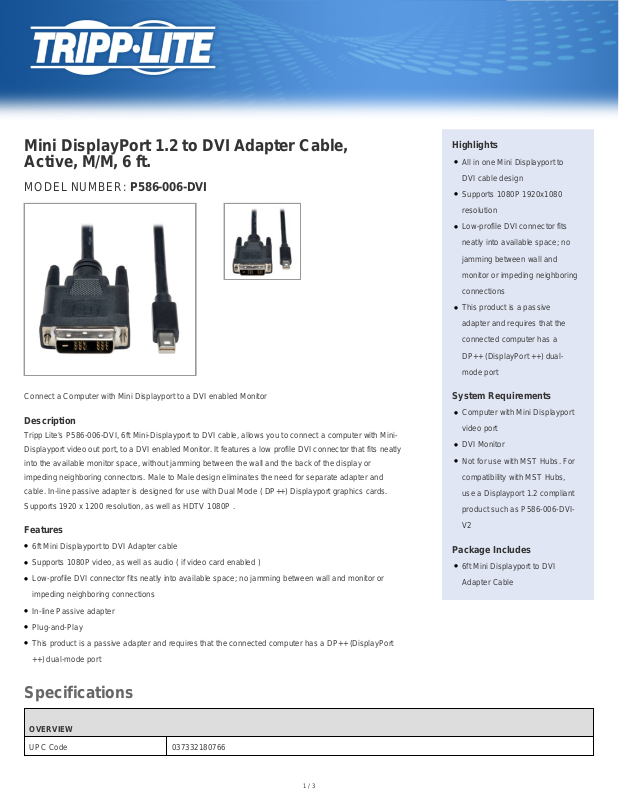

Tripp-Lite P586-006-DVI Data Sheet

Mini DisplayPort 1.2 to DVI Adapter Cable,
Active, M/M, 6 ft.

MODEL NUMBER: P586-006-DVI

Highlights

●

All in one Mini Displayport to
DVI cable design

●

Supports 1080P 1920x1080
resolution

●

Low-profile DVI connector fits
neatly into available space; no
jamming between wall and
monitor or impeding neighboring
connections

●

This product is a passive
adapter and requires that the
connected computer has a
DP++ (DisplayPort ++) dual­mode port

Connect a Computer with Mini Displayport to a DVI enabled Monitor

Description

Tripp Lite's P586-006-DVI, 6ft Mini-Displayport to DVI cable, allows you to connect a computer with Mini­Displayport video out port, to a DVI enabled Monitor. It features a low profile DVI connector that fits neatly
into the available monitor space, without jamming between the wall and the back of the display or
impeding neighboring connectors. Male to Male design eliminates the need for separate adapter and
cable. In-line passive adapter is designed for use with Dual Mode ( DP++) Displayport graphics cards.
Supports 1920 x 1200 resolution, as well as HDTV 1080P .

Features

●

6ft Mini Displayport to DVI Adapter cable

●

Supports 1080P video, as well as audio ( if video card enabled )

●

Low-profile DVI connector fits neatly into available space; no jamming between wall and monitor or
impeding neighboring connections

●

In-line Passive adapter

●

Plug-and-Play

●

This product is a passive adapter and requires that the connected computer has a DP++ (DisplayPort
++) dual-mode port

Specifications

System Requirements

●

Computer with Mini Displayport
video port

●

DVI Monitor

●

Not for use with MST Hubs. For
compatibility with MST Hubs,
use a Displayport 1.2 compliant
product such as P586-006-DVI­V2

Package Includes

●

6ft Mini Displayport to DVI
Adapter Cable

OVERVIEW

UPC Code 037332180766

1 / 3

INPUT

Cable Length (ft.) 6
Cable Length (m) 1.8
Cable Length (in.) 72

PHYSICAL

Cable Jacket Rating VW-1
Cable Outer Diameter (OD) 5.0 +/- 15mm
Color Black
Material of Construction ABS, PVC
Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 1.27
Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Weight (kg) 0.11
Shipping Weight (lbs.) 0.25
Wire Gauge (AWG) 32

ENVIRONMENTAL

Operating Temperature Range 32 to 104 F (0 to 40 C)
Storage Temperature Range 5 to 122 F (-15 to 50 C)
Relative Humidity 0 ~ 85%, NON-CONDENSING
Operating Humidity Range 0 to 85%, Non-Condensing
Storage Humidity Range 0 to 85%, Non-Condensing

CONNECTIONS

Side A - Connector 1 MINI DISPLAYPORT (MALE)
Side B - Connector 1 DVI-D SINGLE LINK (MALE)
Connector Plating Nickel
Contact Plating Gold

FEATURES & SPECIFICATIONS

Max Supported Video Resolution 1920 x 1200 (1080p)
Displayport Specification 1.2
Max Supported Color Depth 24-bit True Color
Technology DVI; DisplayPort

STANDARDS & COMPLIANCE
