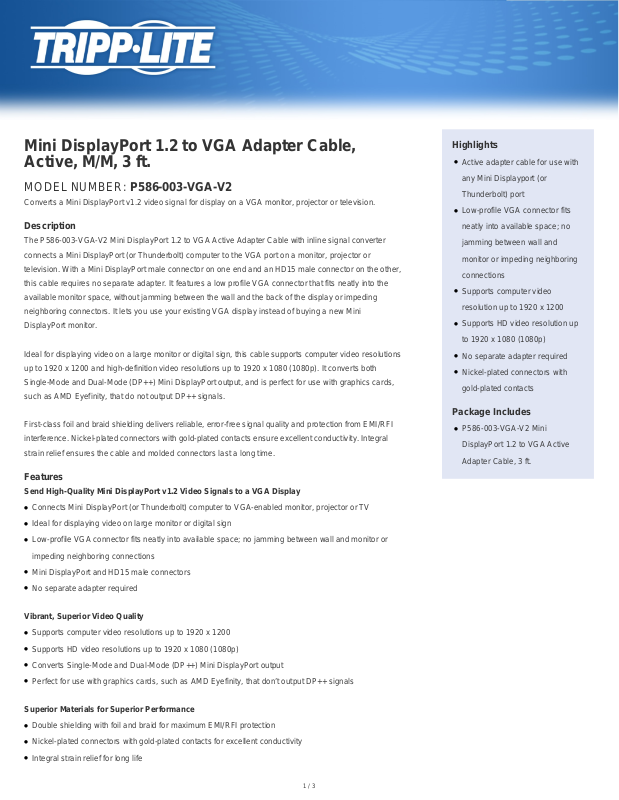

Tripp-Lite P586-003-VGA-V2 Data Sheet

Mini DisplayPort 1.2 to VGA Adapter Cable,
Active, M/M, 3 ft.

MODEL NUMBER: P586-003-VGA-V2

Converts a Mini DisplayPort v1.2 video signal for display on a VGA monitor, projector or television.

Description

The P586-003-VGA-V2 Mini DisplayPort 1.2 to VGA Active Adapter Cable with inline signal converter
connects a Mini DisplayPort (or Thunderbolt) computer to the VGA port on a monitor, projector or
television. With a Mini DisplayPort male connector on one end and an HD15 male connector on the other,
this cable requires no separate adapter. It features a low profile VGA connector that fits neatly into the
available monitor space, without jamming between the wall and the back of the display or impeding
neighboring connectors. It lets you use your existing VGA display instead of buying a new Mini
DisplayPort monitor.

Ideal for displaying video on a large monitor or digital sign, this cable supports computer video resolutions
up to 1920 x 1200 and high-definition video resolutions up to 1920 x 1080 (1080p). It converts both
Single-Mode and Dual-Mode (DP++) Mini DisplayPort output, and is perfect for use with graphics cards,
such as AMD Eyefinity, that do not output DP++ signals.

First-class foil and braid shielding delivers reliable, error-free signal quality and protection from EMI/RFI
interference. Nickel-plated connectors with gold-plated contacts ensure excellent conductivity. Integral
strain relief ensures the cable and molded connectors last a long time.

Features

Send High-Quality Mini DisplayPort v1.2 Video Signals to a VGA Display

●

Connects Mini DisplayPort (or Thunderbolt) computer to VGA-enabled monitor, projector or TV

●

Ideal for displaying video on large monitor or digital sign

●

Low-profile VGA connector fits neatly into available space; no jamming between wall and monitor or
impeding neighboring connections

●

Mini DisplayPort and HD15 male connectors

●

No separate adapter required

Highlights

●

Active adapter cable for use with
any Mini Displayport (or
Thunderbolt) port

●

Low-profile VGA connector fits
neatly into available space; no
jamming between wall and
monitor or impeding neighboring
connections

●

Supports computer video
resolution up to 1920 x 1200

●

Supports HD video resolution up
to 1920 x 1080 (1080p)

●

No separate adapter required

●

Nickel-plated connectors with
gold-plated contacts

Package Includes

●

P586-003-VGA-V2 Mini
DisplayPort 1.2 to VGA Active
Adapter Cable, 3 ft.

Vibrant, Superior Video Quality

●

Supports computer video resolutions up to 1920 x 1200

●

Supports HD video resolutions up to 1920 x 1080 (1080p)

●

Converts Single-Mode and Dual-Mode (DP++) Mini DisplayPort output

●

Perfect for use with graphics cards, such as AMD Eyefinity, that don’t output DP++ signals

Superior Materials for Superior Performance

●

Double shielding with foil and braid for maximum EMI/RFI protection

●

Nickel-plated connectors with gold-plated contacts for excellent conductivity

●

Integral strain relief for long life

1 / 3

Specifications

OVERVIEW

UPC Code 037332191847

INPUT

Cable Length (ft.) 3
Cable Length (m) 0.9
Cable Length (in.) 36

PHYSICAL

Cable Jacket Rating VW-1
Cable Outer Diameter (OD) 5.0 +/- 15mm
Color Black
Material of Construction ABS, PVC
Shipping Dimensions (hwd / cm) 17.78 x 22.86 x 1.27
Shipping Dimensions (hwd / in.) 7.00 x 9.00 x 0.50
Shipping Weight (kg) 0.07
Shipping Weight (lbs.) 0.15
Wire Gauge (AWG) 32

ENVIRONMENTAL

Operating Temperature Range 32 to 104 F (0 to 40 C)
Storage Temperature Range 5 to 122 F (-15 to 50 C)
Operating Humidity Range 0 to 85%, Non-Condensing
Storage Humidity Range 0 to 85%, Non-Condensing

CONNECTIONS

Side A - Connector 1 MINI DISPLAYPORT (MALE)
Side B - Connector 1 HD15 (MALE)
Connector Plating Nickel
Contact Plating Gold

FEATURES & SPECIFICATIONS

Max Supported Video Resolution 1920 x 1200 (1080p)
Displayport Specification 1.2

2 / 3
