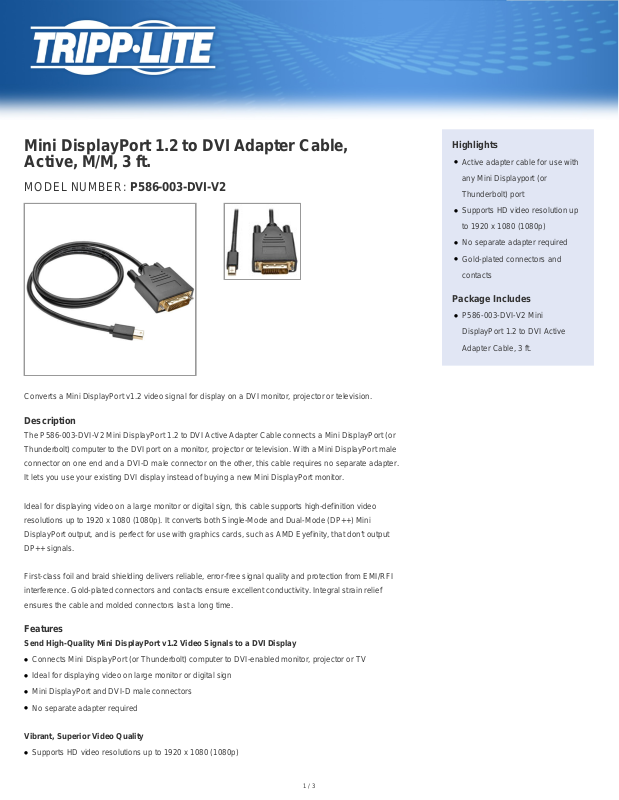

Tripp-Lite P586-003-DVI-V2 Data Sheet

Mini DisplayPort 1.2 to DVI Adapter Cable,
Active, M/M, 3 ft.

MODEL NUMBER: P586-003-DVI-V2

Converts a Mini DisplayPort v1.2 video signal for display on a DVI monitor, projector or television.

Description

The P586-003-DVI-V2 Mini DisplayPort 1.2 to DVI Active Adapter Cable connects a Mini DisplayPort (or
Thunderbolt) computer to the DVI port on a monitor, projector or television. With a Mini DisplayPort male
connector on one end and a DVI-D male connector on the other, this cable requires no separate adapter.
It lets you use your existing DVI display instead of buying a new Mini DisplayPort monitor.

Highlights

●

Active adapter cable for use with
any Mini Displayport (or
Thunderbolt) port

●

Supports HD video resolution up
to 1920 x 1080 (1080p)

●

No separate adapter required

●

Gold-plated connectors and
contacts

Package Includes

●

P586-003-DVI-V2 Mini
DisplayPort 1.2 to DVI Active
Adapter Cable, 3 ft.

Ideal for displaying video on a large monitor or digital sign, this cable supports high-definition video
resolutions up to 1920 x 1080 (1080p). It converts both Single-Mode and Dual-Mode (DP++) Mini
DisplayPort output, and is perfect for use with graphics cards, such as AMD Eyefinity, that don’t output
DP++ signals.

First-class foil and braid shielding delivers reliable, error-free signal quality and protection from EMI/RFI
interference. Gold-plated connectors and contacts ensure excellent conductivity. Integral strain relief
ensures the cable and molded connectors last a long time.

Features

Send High-Quality Mini DisplayPort v1.2 Video Signals to a DVI Display

●

Connects Mini DisplayPort (or Thunderbolt) computer to DVI-enabled monitor, projector or TV

●

Ideal for displaying video on large monitor or digital sign

●

Mini DisplayPort and DVI-D male connectors

●

No separate adapter required

Vibrant, Superior Video Quality

●

Supports HD video resolutions up to 1920 x 1080 (1080p)

1 / 3

●

Converts Single-Mode and Dual-Mode (DP++) Mini DisplayPort output

●

Perfect for use with graphics cards, such as AMD Eyefinity, that don’t output DP++ signals

Superior Materials for Superior Performance

●

Double shielding with foil and braid for maximum EMI/RFI protection

●

Gold-plated connectors and contacts for excellent conductivity

●

Integral strain relief for long life

Specifications

OVERVIEW

UPC Code 037332192004

INPUT

Cable Length (ft.) 3
Cable Length (m) 0.9
Cable Length (in.) 36

PHYSICAL

Cable Jacket Rating VW-1
Cable Outer Diameter (OD) 4.8mm
Color Black
Material of Construction ABS, PVC
Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 1.27
Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Weight (kg) 0.10
Shipping Weight (lbs.) 0.21
Wire Gauge (AWG) 32

ENVIRONMENTAL

Operating Temperature Range 32 to 113 F (0 to 45 C)
Storage Temperature Range 14 to 176 F (-10 to 80 C)
Operating Humidity Range 10 to 85%, Non-Condensing
Storage Humidity Range 5 to 90%, Non-Condensing

CONNECTIONS

Side A - Connector 1 MINI DISPLAYPORT (MALE)
