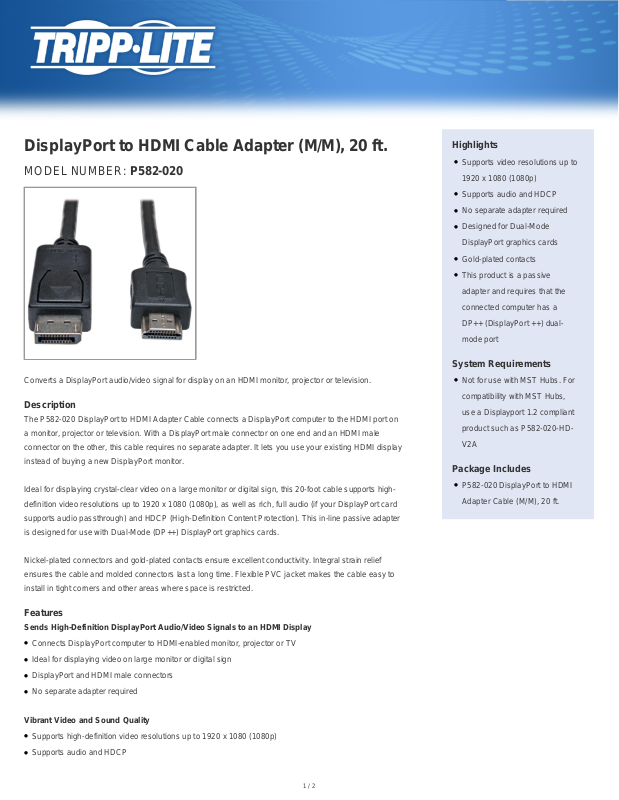

Tripp-Lite P582-020 Data Sheet

DisplayPort to HDMI Cable Adapter (M/M), 20 ft.

MODEL NUMBER: P582-020

Converts a DisplayPort audio/video signal for display on an HDMI monitor, projector or television.

Description

The P582-020 DisplayPort to HDMI Adapter Cable connects a DisplayPort computer to the HDMI port on
a monitor, projector or television. With a DisplayPort male connector on one end and an HDMI male
connector on the other, this cable requires no separate adapter. It lets you use your existing HDMI display
instead of buying a new DisplayPort monitor.

Ideal for displaying crystal-clear video on a large monitor or digital sign, this 20-foot cable supports high­definition video resolutions up to 1920 x 1080 (1080p), as well as rich, full audio (if your DisplayPort card
supports audio passthrough) and HDCP (High-Definition Content Protection). This in-line passive adapter
is designed for use with Dual-Mode (DP++) DisplayPort graphics cards.

Highlights

●

Supports video resolutions up to
1920 x 1080 (1080p)

●

Supports audio and HDCP

●

No separate adapter required

●

Designed for Dual-Mode
DisplayPort graphics cards

●

Gold-plated contacts

●

This product is a passive
adapter and requires that the
connected computer has a
DP++ (DisplayPort ++) dual­mode port

System Requirements

●

Not for use with MST Hubs. For
compatibility with MST Hubs,
use a Displayport 1.2 compliant
product such as P582-020-HD­V2A

Package Includes

●

P582-020 DisplayPort to HDMI
Adapter Cable (M/M), 20 ft.

Nickel-plated connectors and gold-plated contacts ensure excellent conductivity. Integral strain relief
ensures the cable and molded connectors last a long time. Flexible PVC jacket makes the cable easy to
install in tight corners and other areas where space is restricted.

Features

Sends High-Definition DisplayPort Audio/Video Signals to an HDMI Display

●

Connects DisplayPort computer to HDMI-enabled monitor, projector or TV

●

Ideal for displaying video on large monitor or digital sign

●

DisplayPort and HDMI male connectors

●

No separate adapter required

Vibrant Video and Sound Quality

●

Supports high-definition video resolutions up to 1920 x 1080 (1080p)

●

Supports audio and HDCP

1 / 2

●

This product is a passive adapter and requires that the connected computer has a DP++ (DisplayPort
++) dual-mode port

Superior Materials for Superior Performance

●

Nickel-plated connectors and gold-plated contacts for excellent conductivity

●

Integral strain relief for long life

●

Flexible PVC jacket for easy installation in tight corners

Specifications

OVERVIEW

UPC Code 037332192875

INPUT

Cable Length (ft.) 20
Cable Length (m) 6.1

PHYSICAL

Color Black
Shipping Dimensions (hwd / cm) 3.18 x 27.18 x 13.21
Shipping Dimensions (hwd / in.) 1.25 x 10.70 x 5.20
Shipping Weight (kg) 0.36
Shipping Weight (lbs.) 0.80

CONNECTIONS

Side A - Connector 1 DISPLAYPORT (MALE)
Side B - Connector 1 HDMI (MALE)

FEATURES & SPECIFICATIONS

Technology HDMI; DisplayPort

WARRANTY

Product Warranty Period
(Worldwide)

3-year limited warranty
