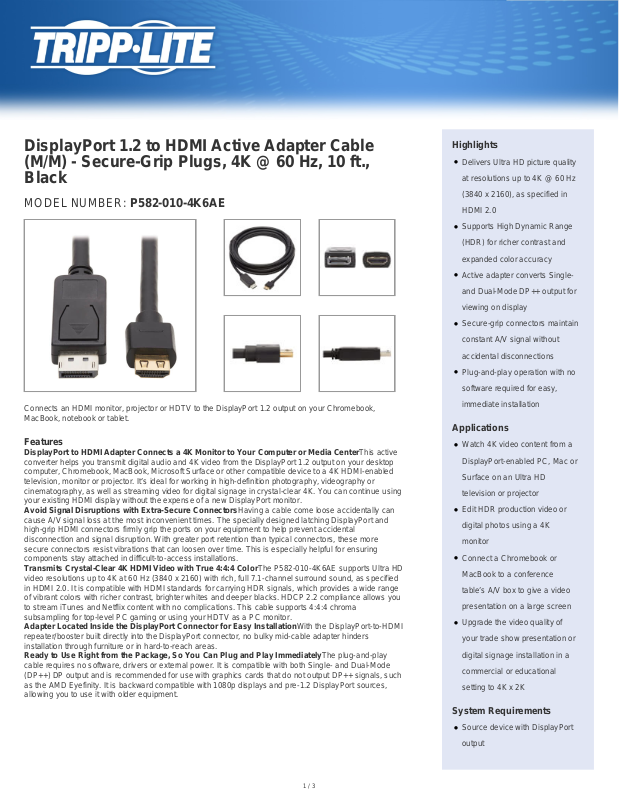

Tripp-Lite P582-010-4K6AE Data Sheet
DisplayPort 1.2 to HDMI Active Adapter Cable
(M/M) - Secure-Grip Plugs, 4K @ 60 Hz, 10 ft.,
Black
MODEL NUMBER: P582-010-4K6AE
Connects an HDMI monitor, projector or HDTV to the DisplayPort 1.2 output on your Chromebook,
MacBook, notebook or tablet.
Features
DisplayPort to HDMI Adapter Connects a 4K Monitor to Your Computer or Media CenterThis active
converter helps you transmit digital audio and 4K video from the DisplayPort 1.2 output on your desktop
computer, Chromebook, MacBook, Microsoft Surface or other compatible device to a 4K HDMI-enabled
television, monitor or projector. It’s ideal for working in high-definition photography, videography or
cinematography, as well as streaming video for digital signage in crystal-clear 4K. You can continue using
your existing HDMI display without the expense of a new DisplayPort monitor.
Avoid Signal Disruptions with Extra-Secure ConnectorsHaving a cable come loose accidentally can
cause A/V signal loss at the most inconvenient times. The specially designed latching DisplayPort and
high-grip HDMI connectors firmly grip the ports on your equipment to help prevent accidental
disconnection and signal disruption. With greater port retention than typical connectors, these more
secure connectors resist vibrations that can loosen over time. This is especially helpful for ensuring
components stay attached in difficult-to-access installations.
Transmits Crystal-Clear 4K HDMI Video with True 4:4:4 ColorThe P582-010-4K6AE supports Ultra HD
video resolutions up to 4K at 60 Hz (3840 x 2160) with rich, full 7.1-channel surround sound, as specified
in HDMI 2.0. It is compatible with HDMI standards for carrying HDR signals, which provides a wide range
of vibrant colors with richer contrast, brighter whites and deeper blacks. HDCP 2.2 compliance allows you
to stream iTunes and Netflix content with no complications. This cable supports 4:4:4 chroma
subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Adapter Located Inside the DisplayPort Connector for Easy InstallationWith the DisplayPort-to-HDMI
repeater/booster built directly into the DisplayPort connector, no bulky mid-cable adapter hinders
installation through furniture or in hard-to-reach areas.
Ready to Use Right from the Package, So You Can Plug and Play ImmediatelyThe plug-and-play
cable requires no software, drivers or external power. It is compatible with both Single- and Dual-Mode
(DP++) DP output and is recommended for use with graphics cards that do not output DP++ signals, such
as the AMD Eyefinity. It is backward compatible with 1080p displays and pre-1.2 DisplayPort sources,
allowing you to use it with older equipment.
Highlights
●
Delivers Ultra HD picture quality
at resolutions up to 4K @ 60 Hz
(3840 x 2160), as specified in
HDMI 2.0
●
Supports High Dynamic Range
(HDR) for richer contrast and
expanded color accuracy
●
Active adapter converts Singleand Dual-Mode DP++ output for
viewing on display
●
Secure-grip connectors maintain
constant A/V signal without
accidental disconnections
●
Plug-and-play operation with no
software required for easy,
immediate installation
Applications
●
Watch 4K video content from a
DisplayPort-enabled PC, Mac or
Surface on an Ultra HD
television or projector
●
Edit HDR production video or
digital photos using a 4K
monitor
●
Connect a Chromebook or
MacBook to a conference
table’s A/V box to give a video
presentation on a large screen
●
Upgrade the video quality of
your trade show presentation or
digital signage installation in a
commercial or educational
setting to 4K x 2K
System Requirements
●
Source device with DisplayPort
output
1 / 3
Specifications
OVERVIEW
UPC Code 037332243171
INPUT
Cable Length (ft.) 10
Cable Length (m) 3.05
Cable Length (in.) 120
Cable Length (cm) 305
●
Display device with HDMI input
Package Includes
●
P582-010-4K6AE DisplayPort to
HDMI 4K Cable - M/M, 10 ft.,
Black
USER INTERFACE, ALERTS & CONTROLS
LED Indicators N/A
PHYSICAL
Cable Jacket Type PVC
Cable Outer Diameter (OD) 7.3mm
Color Black
Material of Construction ABS, PVC
Unit Weight (kg) 0.19
Unit Weight (lbs.) 0.4142
ENVIRONMENTAL
Operating Temperature Range 32 to 104 °F (0 to 40 °C)
Storage Temperature Range -4 to 140 °F (-20 to 60 °C)
Relative Humidity 10% ~ 90% RH, Non-Condensing
CONNECTIONS
Side A - Connector 1 (1) DISPLAYPORT (MALE)
Side B - Connector 1 (1) HDMI (MALE) - GRIPPING
