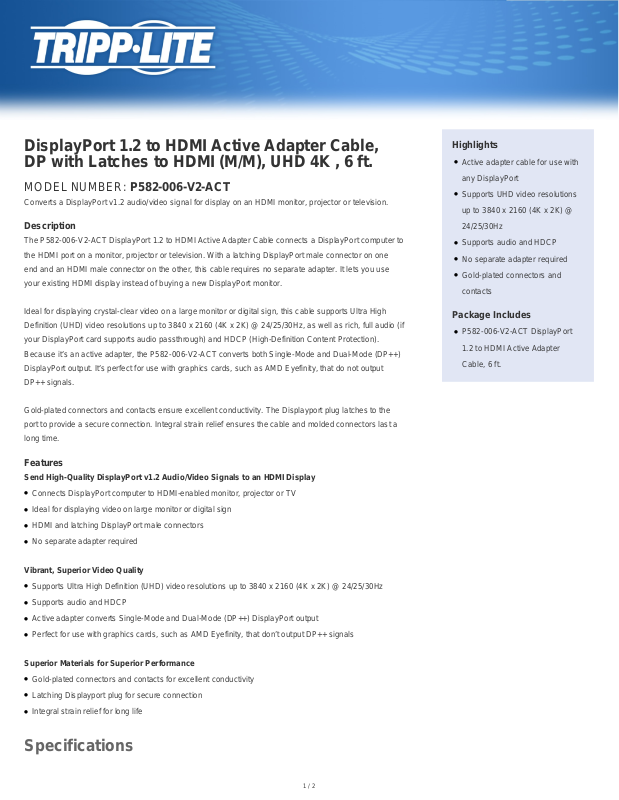

Tripp-Lite P582-006-V2-ACT Data Sheet
DisplayPort 1.2 to HDMI Active Adapter Cable,
DP with Latches to HDMI (M/M), UHD 4K , 6 ft.
MODEL NUMBER: P582-006-V2-ACT
Converts a DisplayPort v1.2 audio/video signal for display on an HDMI monitor, projector or television.
Description
The P582-006-V2-ACT DisplayPort 1.2 to HDMI Active Adapter Cable connects a DisplayPort computer to
the HDMI port on a monitor, projector or television. With a latching DisplayPort male connector on one
end and an HDMI male connector on the other, this cable requires no separate adapter. It lets you use
your existing HDMI display instead of buying a new DisplayPort monitor.
Highlights
●
Active adapter cable for use with
any DisplayPort
●
Supports UHD video resolutions
up to 3840 x 2160 (4K x 2K) @
24/25/30Hz
●
Supports audio and HDCP
●
No separate adapter required
●
Gold-plated connectors and
contacts
Ideal for displaying crystal-clear video on a large monitor or digital sign, this cable supports Ultra High
Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) @ 24/25/30Hz, as well as rich, full audio (if
your DisplayPort card supports audio passthrough) and HDCP (High-Definition Content Protection).
Because it’s an active adapter, the P582-006-V2-ACT converts both Single-Mode and Dual-Mode (DP++)
DisplayPort output. It’s perfect for use with graphics cards, such as AMD Eyefinity, that do not output
DP++ signals.
Gold-plated connectors and contacts ensure excellent conductivity. The Displayport plug latches to the
port to provide a secure connection. Integral strain relief ensures the cable and molded connectors last a
long time.
Features
Send High-Quality DisplayPort v1.2 Audio/Video Signals to an HDMI Display
●
Connects DisplayPort computer to HDMI-enabled monitor, projector or TV
●
Ideal for displaying video on large monitor or digital sign
●
HDMI and latching DisplayPort male connectors
●
No separate adapter required
Vibrant, Superior Video Quality
●
Supports Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) @ 24/25/30Hz
●
Supports audio and HDCP
●
Active adapter converts Single-Mode and Dual-Mode (DP++) DisplayPort output
●
Perfect for use with graphics cards, such as AMD Eyefinity, that don’t output DP++ signals
Package Includes
●
P582-006-V2-ACT DisplayPort
1.2 to HDMI Active Adapter
Cable, 6 ft.
Superior Materials for Superior Performance
●
Gold-plated connectors and contacts for excellent conductivity
●
Latching Displayport plug for secure connection
●
Integral strain relief for long life
Specifications
1 / 2
OVERVIEW
UPC Code 037332192066
INPUT
Cable Length (ft.) 6
Cable Length (m) 1.8
PHYSICAL
Color Black
Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 1.27
Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Weight (kg) 0.14
Shipping Weight (lbs.) 0.30
CONNECTIONS
Side A - Connector 1 DISPLAYPORT (MALE)
Side B - Connector 1 HDMI (MALE)
FEATURES & SPECIFICATIONS
Technology HDMI; DisplayPort
WARRANTY
Product Warranty Period
(Worldwide)
3-year limited warranty
© 2020 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https:// products/product-certification-agencies
2 / 2
