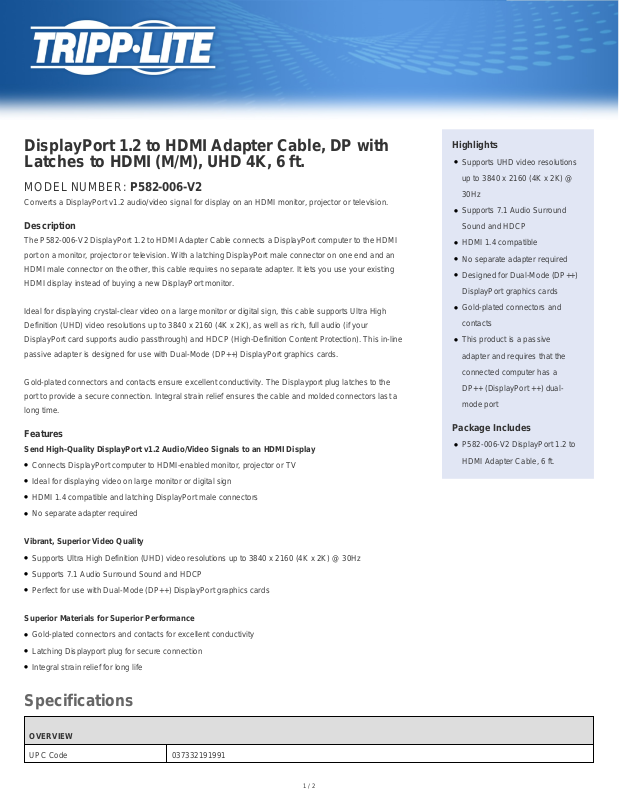

Tripp-Lite P582-006-V2 Data Sheet
DisplayPort 1.2 to HDMI Adapter Cable, DP with
Latches to HDMI (M/M), UHD 4K, 6 ft.
MODEL NUMBER: P582-006-V2
Converts a DisplayPort v1.2 audio/video signal for display on an HDMI monitor, projector or television.
Description
The P582-006-V2 DisplayPort 1.2 to HDMI Adapter Cable connects a DisplayPort computer to the HDMI
port on a monitor, projector or television. With a latching DisplayPort male connector on one end and an
HDMI male connector on the other, this cable requires no separate adapter. It lets you use your existing
HDMI display instead of buying a new DisplayPort monitor.
Ideal for displaying crystal-clear video on a large monitor or digital sign, this cable supports Ultra High
Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K), as well as rich, full audio (if your
DisplayPort card supports audio passthrough) and HDCP (High-Definition Content Protection). This in-line
passive adapter is designed for use with Dual-Mode (DP++) DisplayPort graphics cards.
Gold-plated connectors and contacts ensure excellent conductivity. The Displayport plug latches to the
port to provide a secure connection. Integral strain relief ensures the cable and molded connectors last a
long time.
Highlights
●
Supports UHD video resolutions
up to 3840 x 2160 (4K x 2K) @
30Hz
●
Supports 7.1 Audio Surround
Sound and HDCP
●
HDMI 1.4 compatible
●
No separate adapter required
●
Designed for Dual-Mode (DP++)
DisplayPort graphics cards
●
Gold-plated connectors and
contacts
●
This product is a passive
adapter and requires that the
connected computer has a
DP++ (DisplayPort ++) dualmode port
Features
Send High-Quality DisplayPort v1.2 Audio/Video Signals to an HDMI Display
●
Connects DisplayPort computer to HDMI-enabled monitor, projector or TV
●
Ideal for displaying video on large monitor or digital sign
●
HDMI 1.4 compatible and latching DisplayPort male connectors
●
No separate adapter required
Vibrant, Superior Video Quality
●
Supports Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) @ 30Hz
●
Supports 7.1 Audio Surround Sound and HDCP
●
Perfect for use with Dual-Mode (DP++) DisplayPort graphics cards
Superior Materials for Superior Performance
●
Gold-plated connectors and contacts for excellent conductivity
●
Latching Displayport plug for secure connection
●
Integral strain relief for long life
Specifications
Package Includes
●
P582-006-V2 DisplayPort 1.2 to
HDMI Adapter Cable, 6 ft.
OVERVIEW
UPC Code 037332191991
1 / 2
INPUT
Cable Length (ft.) 6
Cable Length (m) 1.8
PHYSICAL
Color Black
Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 1.27
Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Weight (kg) 0.14
Shipping Weight (lbs.) 0.30
CONNECTIONS
Side A - Connector 1 DISPLAYPORT (MALE)
Side B - Connector 1 HDMI (MALE)
FEATURES & SPECIFICATIONS
Technology HDMI; DisplayPort
WARRANTY
Product Warranty Period
(Worldwide)
3-year limited warranty
