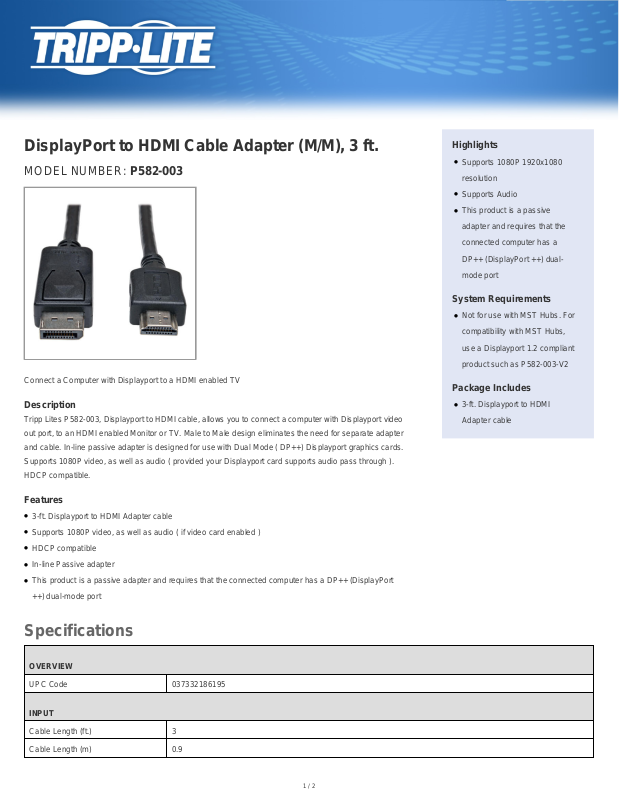

Tripp-Lite P582-003 Data Sheet

DisplayPort to HDMI Cable Adapter (M/M), 3 ft.

MODEL NUMBER: P582-003

Connect a Computer with Displayport to a HDMI enabled TV

Description

Tripp Lites P582-003, Displayport to HDMI cable, allows you to connect a computer with Displayport video
out port, to an HDMI enabled Monitor or TV. Male to Male design eliminates the need for separate adapter
and cable. In-line passive adapter is designed for use with Dual Mode ( DP++) Displayport graphics cards.
Supports 1080P video, as well as audio ( provided your Displayport card supports audio pass through ).
HDCP compatible.

Highlights

●

Supports 1080P 1920x1080
resolution

●

Supports Audio

●

This product is a passive
adapter and requires that the
connected computer has a
DP++ (DisplayPort ++) dual­mode port

System Requirements

●

Not for use with MST Hubs. For
compatibility with MST Hubs,
use a Displayport 1.2 compliant
product such as P582-003-V2

Package Includes

●

3-ft. Displayport to HDMI
Adapter cable

Features

●

3-ft. Displayport to HDMI Adapter cable

●

Supports 1080P video, as well as audio ( if video card enabled )

●

HDCP compatible

●

In-line Passive adapter

●

This product is a passive adapter and requires that the connected computer has a DP++ (DisplayPort
++) dual-mode port

Specifications

OVERVIEW

UPC Code 037332186195

INPUT

Cable Length (ft.) 3
Cable Length (m) 0.9

1 / 2

PHYSICAL

Color Black
Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 1.27
Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Weight (kg) 0.08
Shipping Weight (lbs.) 0.17

CONNECTIONS

Side A - Connector 1 DISPLAYPORT (MALE)
Side B - Connector 1 HDMI (MALE)

FEATURES & SPECIFICATIONS

Technology HDMI; DisplayPort

WARRANTY

Product Warranty Period
(Worldwide)

3-year limited warranty
