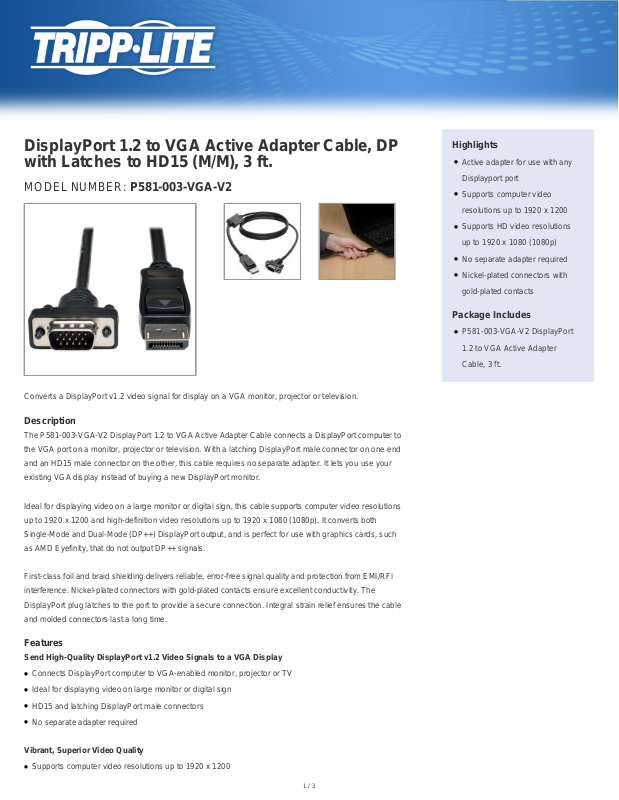

Tripp-Lite P581-003-VGA-V2 Data Sheet

DisplayPort 1.2 to VGA Active Adapter Cable, DP
with Latches to HD15 (M/M), 3 ft.

MODEL NUMBER: P581-003-VGA-V2

Converts a DisplayPort v1.2 video signal for display on a VGA monitor, projector or television.

Description

The P581-003-VGA-V2 DisplayPort 1.2 to VGA Active Adapter Cable connects a DisplayPort computer to
the VGA port on a monitor, projector or television. With a latching DisplayPort male connector on one end
and an HD15 male connector on the other, this cable requires no separate adapter. It lets you use your
existing VGA display instead of buying a new DisplayPort monitor.

Highlights

●

Active adapter for use with any
Displayport port

●

Supports computer video
resolutions up to 1920 x 1200

●

Supports HD video resolutions
up to 1920 x 1080 (1080p)

●

No separate adapter required

●

Nickel-plated connectors with
gold-plated contacts

Package Includes

●

P581-003-VGA-V2 DisplayPort

1.2 to VGA Active Adapter
Cable, 3 ft.

Ideal for displaying video on a large monitor or digital sign, this cable supports computer video resolutions
up to 1920 x 1200 and high-definition video resolutions up to 1920 x 1080 (1080p). It converts both
Single-Mode and Dual-Mode (DP++) DisplayPort output, and is perfect for use with graphics cards, such
as AMD Eyefinity, that do not output DP++ signals.

First-class foil and braid shielding delivers reliable, error-free signal quality and protection from EMI/RFI
interference. Nickel-plated connectors with gold-plated contacts ensure excellent conductivity. The
DisplayPort plug latches to the port to provide a secure connection. Integral strain relief ensures the cable
and molded connectors last a long time.

Features

Send High-Quality DisplayPort v1.2 Video Signals to a VGA Display

●

Connects DisplayPort computer to VGA-enabled monitor, projector or TV

●

Ideal for displaying video on large monitor or digital sign

●

HD15 and latching DisplayPort male connectors

●

No separate adapter required

Vibrant, Superior Video Quality

●

Supports computer video resolutions up to 1920 x 1200

1 / 3

●

Supports HD video resolutions up to 1920 x 1080 (1080p)

●

Converts Single-Mode and Dual-Mode (DP++) DisplayPort output

●

Perfect for use with graphics cards, such as AMD Eyefinity, that do not output DP++ signals

Superior Materials for Superior Performance

●

Double shielding with foil and braid for maximum EMI/RFI protection

●

Nickel-plated connectors with gold-plated contacts for excellent conductivity

●

Latching DisplayPort plug for secure connection

●

Integral strain relief for long life

Specifications

OVERVIEW

UPC Code 037332191922

INPUT

Cable Length (ft.) 3
Cable Length (m) 0.9

PHYSICAL

Color Black
Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 1.27
Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Weight (kg) 0.07
Shipping Weight (lbs.) 0.15

CONNECTIONS

Side A - Connector 1 DISPLAYPORT (MALE)
Side B - Connector 1 HD15 (MALE)

FEATURES & SPECIFICATIONS

Technology VGA/SVGA; DisplayPort

WARRANTY

Product Warranty Period
(Worldwide)

3-year limited warranty
