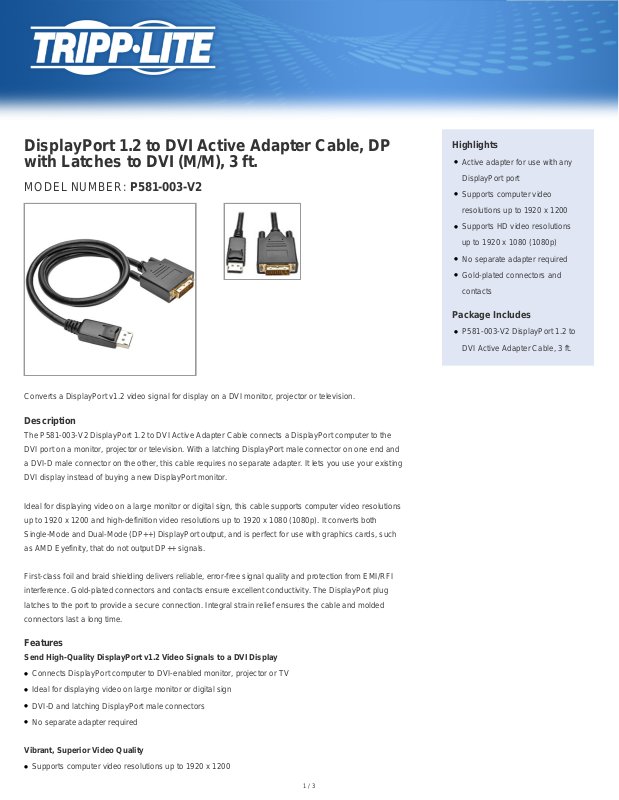

Tripp-Lite P581-003-V2 Data Sheet

DisplayPort 1.2 to DVI Active Adapter Cable, DP
with Latches to DVI (M/M), 3 ft.

MODEL NUMBER: P581-003-V2

Converts a DisplayPort v1.2 video signal for display on a DVI monitor, projector or television.

Description

The P581-003-V2 DisplayPort 1.2 to DVI Active Adapter Cable connects a DisplayPort computer to the
DVI port on a monitor, projector or television. With a latching DisplayPort male connector on one end and
a DVI-D male connector on the other, this cable requires no separate adapter. It lets you use your existing
DVI display instead of buying a new DisplayPort monitor.

Highlights

●

Active adapter for use with any
DisplayPort port

●

Supports computer video
resolutions up to 1920 x 1200

●

Supports HD video resolutions
up to 1920 x 1080 (1080p)

●

No separate adapter required

●

Gold-plated connectors and
contacts

Package Includes

●

P581-003-V2 DisplayPort 1.2 to
DVI Active Adapter Cable, 3 ft.

Ideal for displaying video on a large monitor or digital sign, this cable supports computer video resolutions
up to 1920 x 1200 and high-definition video resolutions up to 1920 x 1080 (1080p). It converts both
Single-Mode and Dual-Mode (DP++) DisplayPort output, and is perfect for use with graphics cards, such
as AMD Eyefinity, that do not output DP++ signals.

First-class foil and braid shielding delivers reliable, error-free signal quality and protection from EMI/RFI
interference. Gold-plated connectors and contacts ensure excellent conductivity. The DisplayPort plug
latches to the port to provide a secure connection. Integral strain relief ensures the cable and molded
connectors last a long time.

Features

Send High-Quality DisplayPort v1.2 Video Signals to a DVI Display

●

Connects DisplayPort computer to DVI-enabled monitor, projector or TV

●

Ideal for displaying video on large monitor or digital sign

●

DVI-D and latching DisplayPort male connectors

●

No separate adapter required

Vibrant, Superior Video Quality

●

Supports computer video resolutions up to 1920 x 1200

1 / 3

●

Supports HD video resolutions up to 1920 x 1080 (1080p)

●

Converts Single-Mode and Dual-Mode (DP++) DisplayPort output

●

Perfect for use with graphics cards, such as AMD Eyefinity, that do not output DP++ signals

Superior Materials for Superior Performance

●

Double shielding with foil and braid for maximum EMI/RFI protection

●

Gold-plated connectors and contacts for excellent conductivity

●

Latching DisplayPort plug for secure connection

●

Integral strain relief for long life

Specifications

OVERVIEW

UPC Code 037332191960

INPUT

Cable Length (ft.) 3
Cable Length (m) 0.9

PHYSICAL

Color Black
Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 1.27
Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Weight (kg) 0.13
Shipping Weight (lbs.) 0.28

ENVIRONMENTAL

Operating Temperature Range 32~113°F (0~45°C)
Storage Temperature Range 14~158°F (-10~70°C)
Operating Humidity Range 10%~85% RH, Non-Condensing
Storage Humidity Range 5%~90% RH, Non-Condensing

CONNECTIONS

Side A - Connector 1 DISPLAYPORT (MALE)
Side B - Connector 1 DVI-D DUAL-LINK (MALE) (WIRED TO DVI-D SINGLE-LINK)

FEATURES & SPECIFICATIONS

Max Supported Video Resolution 1920 x 1200 @60Hz
