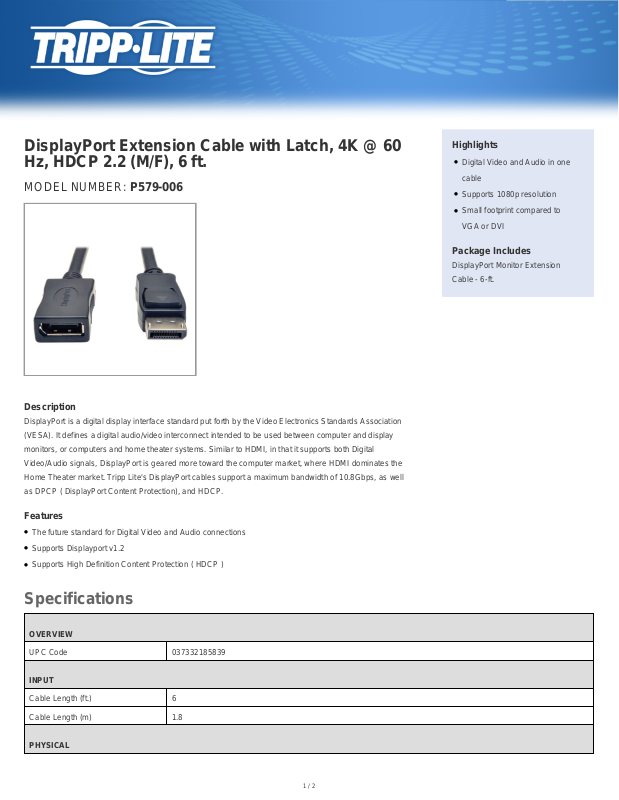

Tripp-Lite P579-006 Data Sheet

DisplayPort Extension Cable with Latch, 4K @ 60
Hz, HDCP 2.2 (M/F), 6 ft.

MODEL NUMBER: P579-006

Description

DisplayPort is a digital display interface standard put forth by the Video Electronics Standards Association
(VESA). It defines a digital audio/video interconnect intended to be used between computer and display
monitors, or computers and home theater systems. Similar to HDMI, in that it supports both Digital
Video/Audio signals, DisplayPort is geared more toward the computer market, where HDMI dominates the
Home Theater market. Tripp Lite's DisplayPort cables support a maximum bandwidth of 10.8Gbps, as well
as DPCP ( DisplayPort Content Protection), and HDCP.

Highlights

●

Digital Video and Audio in one
cable

●

Supports 1080p resolution

●

Small footprint compared to
VGA or DVI

Package Includes

DisplayPort Monitor Extension
Cable - 6-ft.

Features

●

The future standard for Digital Video and Audio connections

●

Supports Displayport v1.2

●

Supports High Definition Content Protection ( HDCP )

Specifications

OVERVIEW

UPC Code 037332185839

INPUT

Cable Length (ft.) 6
Cable Length (m) 1.8

PHYSICAL

1 / 2

Color Black
Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 1.27
Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Weight (kg) 0.11
Shipping Weight (lbs.) 0.23

ENVIRONMENTAL

Operating Temperature Range -4F to 140F (-20C to 60C)
Storage Temperature Range 5F to 122F (-15C to 50C)
Relative Humidity 10% to 80% RH, NON-CONDENSING

CONNECTIONS

Side A - Connector 1 DISPLAYPORT (MALE)
Side B - Connector 1 DISPLAYPORT (FEMALE)

FEATURES & SPECIFICATIONS

Technology DisplayPort

WARRANTY

Product Warranty Period
(Worldwide)

Lifetime limited warranty
