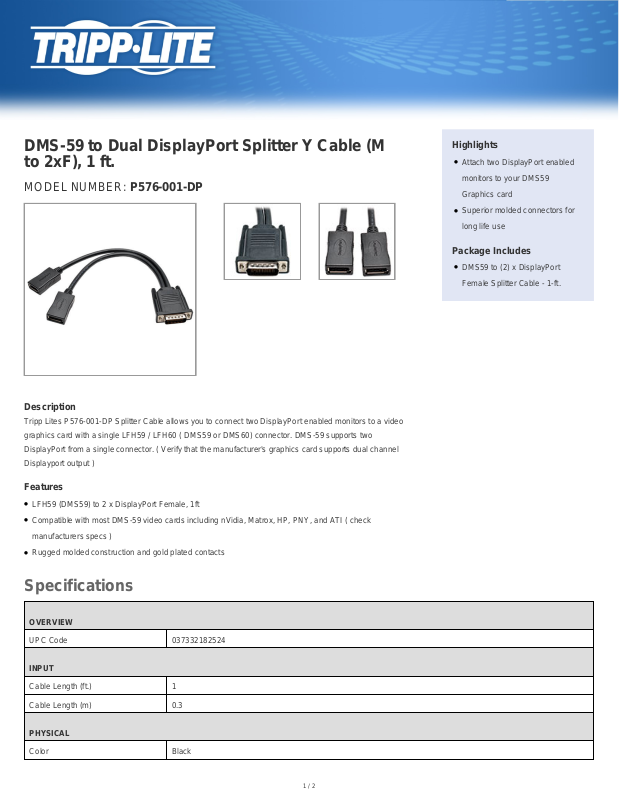

Tripp-Lite P576-001-DP Data Sheet

DMS-59 to Dual DisplayPort Splitter Y Cable (M
to 2xF), 1 ft.

MODEL NUMBER: P576-001-DP

Description

Tripp Lites P576-001-DP Splitter Cable allows you to connect two DisplayPort enabled monitors to a video
graphics card with a single LFH59 / LFH60 ( DMS59 or DMS60) connector. DMS-59 supports two
DisplayPort from a single connector. ( Verify that the manufacturer's graphics card supports dual channel
Displayport output )

Highlights

●

Attach two DisplayPort enabled
monitors to your DMS59
Graphics card

●

Superior molded connectors for
long life use

Package Includes

●

DMS59 to (2) x DisplayPort
Female Splitter Cable - 1-ft.

Features

●

LFH59 (DMS59) to 2 x DisplayPort Female, 1ft

●

Compatible with most DMS-59 video cards including nVidia, Matrox, HP, PNY, and ATI ( check
manufacturers specs )

●

Rugged molded construction and gold plated contacts

Specifications

OVERVIEW

UPC Code 037332182524

INPUT

Cable Length (ft.) 1
Cable Length (m) 0.3

PHYSICAL

Color Black

1 / 2

Shipping Dimensions (hwd / cm) 1.27 x 12.45 x 21.34
Shipping Dimensions (hwd / in.) 0.50 x 4.90 x 8.40
Shipping Weight (kg) 0.07
Shipping Weight (lbs.) 0.15

CONNECTIONS

Side A - Connector 1 DMS59 (MALE)
Side B - Connector 1 (2) DISPLAYPORT (FEMALE)

FEATURES & SPECIFICATIONS

Technology DisplayPort

WARRANTY

Product Warranty Period
(Worldwide)

Lifetime limited warranty
