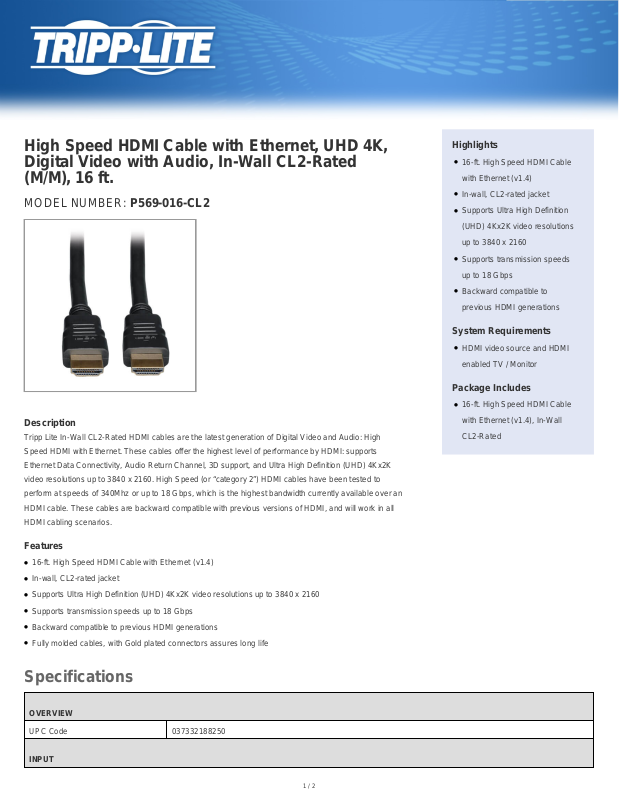

Tripp-Lite P569-016-CL2 Data Sheet

High Speed HDMI Cable with Ethernet, UHD 4K,
Digital Video with Audio, In-Wall CL2-Rated
(M/M), 16 ft.

MODEL NUMBER: P569-016-CL2

Description

Tripp Lite In-Wall CL2-Rated HDMI cables are the latest generation of Digital Video and Audio: High
Speed HDMI with Ethernet. These cables offer the highest level of performance by HDMI: supports
Ethernet Data Connectivity, Audio Return Channel, 3D support, and Ultra High Definition (UHD) 4Kx2K
video resolutions up to 3840 x 2160. High Speed (or “category 2”) HDMI cables have been tested to
perform at speeds of 340Mhz or up to 18 Gbps, which is the highest bandwidth currently available over an
HDMI cable. These cables are backward compatible with previous versions of HDMI, and will work in all
HDMI cabling scenarios.

Highlights

●

16-ft. High Speed HDMI Cable
with Ethernet (v1.4)

●

In-wall, CL2-rated jacket

●

Supports Ultra High Definition
(UHD) 4Kx2K video resolutions
up to 3840 x 2160

●

Supports transmission speeds
up to 18 Gbps

●

Backward compatible to
previous HDMI generations

System Requirements

●

HDMI video source and HDMI
enabled TV / Monitor

Package Includes

●

16-ft. High Speed HDMI Cable
with Ethernet (v1.4), In-Wall
CL2-Rated

Features

●

16-ft. High Speed HDMI Cable with Ethernet (v1.4)

●

In-wall, CL2-rated jacket

●

Supports Ultra High Definition (UHD) 4Kx2K video resolutions up to 3840 x 2160

●

Supports transmission speeds up to 18 Gbps

●

Backward compatible to previous HDMI generations

●

Fully molded cables, with Gold plated connectors assures long life

Specifications

OVERVIEW

UPC Code 037332188250

INPUT

1 / 2

Cable Length (ft.) 16
Cable Length (m) 4.9

PHYSICAL

Color Black
Shipping Dimensions (hwd / cm) 30.48 x 25.40 x 1.83
Shipping Dimensions (hwd / in.) 12.00 x 10.00 x 0.72
Shipping Weight (kg) 0.27
Shipping Weight (lbs.) 0.60

CONNECTIONS

Side A - Connector 1 HDMI (MALE)
Side B - Connector 1 HDMI (MALE)

FEATURES & SPECIFICATIONS

Technology HDMI

SPECIAL FEATURES

Fire Rating CL2 Rated

WARRANTY

Product Warranty Period
(Worldwide)

Lifetime limited warranty
