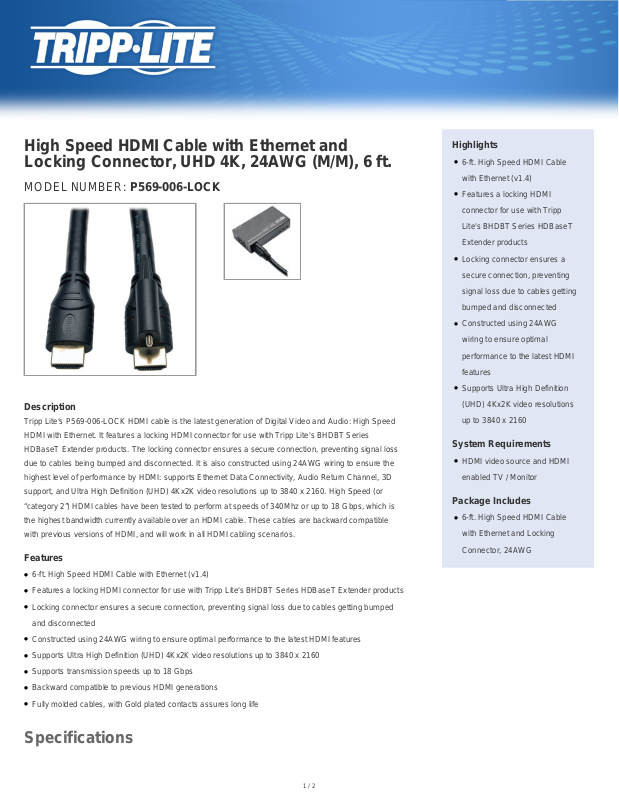

Tripp-Lite P569-006-LOCK Data Sheet

High Speed HDMI Cable with Ethernet and
Locking Connector, UHD 4K, 24AWG (M/M), 6 ft.

MODEL NUMBER: P569-006-LOCK

Description

Tripp Lite's P569-006-LOCK HDMI cable is the latest generation of Digital Video and Audio: High Speed
HDMI with Ethernet. It features a locking HDMI connector for use with Tripp Lite's BHDBT Series
HDBaseT Extender products. The locking connector ensures a secure connection, preventing signal loss
due to cables being bumped and disconnected. It is also constructed using 24AWG wiring to ensure the
highest level of performance by HDMI: supports Ethernet Data Connectivity, Audio Return Channel, 3D
support, and Ultra High Definition (UHD) 4Kx2K video resolutions up to 3840 x 2160. High Speed (or
“category 2”) HDMI cables have been tested to perform at speeds of 340Mhz or up to 18 Gbps, which is
the highest bandwidth currently available over an HDMI cable. These cables are backward compatible
with previous versions of HDMI, and will work in all HDMI cabling scenarios.

Features

●

6-ft. High Speed HDMI Cable with Ethernet (v1.4)

●

Features a locking HDMI connector for use with Tripp Lite's BHDBT Series HDBaseT Extender products

●

Locking connector ensures a secure connection, preventing signal loss due to cables getting bumped
and disconnected

●

Constructed using 24AWG wiring to ensure optimal performance to the latest HDMI features

●

Supports Ultra High Definition (UHD) 4Kx2K video resolutions up to 3840 x 2160

●

Supports transmission speeds up to 18 Gbps

●

Backward compatible to previous HDMI generations

●

Fully molded cables, with Gold plated contacts assures long life

Highlights

●

6-ft. High Speed HDMI Cable
with Ethernet (v1.4)

●

Features a locking HDMI
connector for use with Tripp
Lite's BHDBT Series HDBaseT
Extender products

●

Locking connector ensures a
secure connection, preventing
signal loss due to cables getting
bumped and disconnected

●

Constructed using 24AWG
wiring to ensure optimal
performance to the latest HDMI
features

●

Supports Ultra High Definition
(UHD) 4Kx2K video resolutions
up to 3840 x 2160

System Requirements

●

HDMI video source and HDMI
enabled TV / Monitor

Package Includes

●

6-ft. High Speed HDMI Cable
with Ethernet and Locking
Connector, 24AWG

Specifications

1 / 2

OVERVIEW

UPC Code 037332188533

INPUT

Cable Length (ft.) 6
Cable Length (m) 1.8

PHYSICAL

Color Black
Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 1.27
Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Weight (kg) 0.15
Shipping Weight (lbs.) 0.32

CONNECTIONS

Side A - Connector 1 HDMI (MALE)
Side B - Connector 1 HDMI (MALE)

FEATURES & SPECIFICATIONS

Technology HDMI

WARRANTY

Product Warranty Period
(Worldwide)

Lifetime limited warranty
