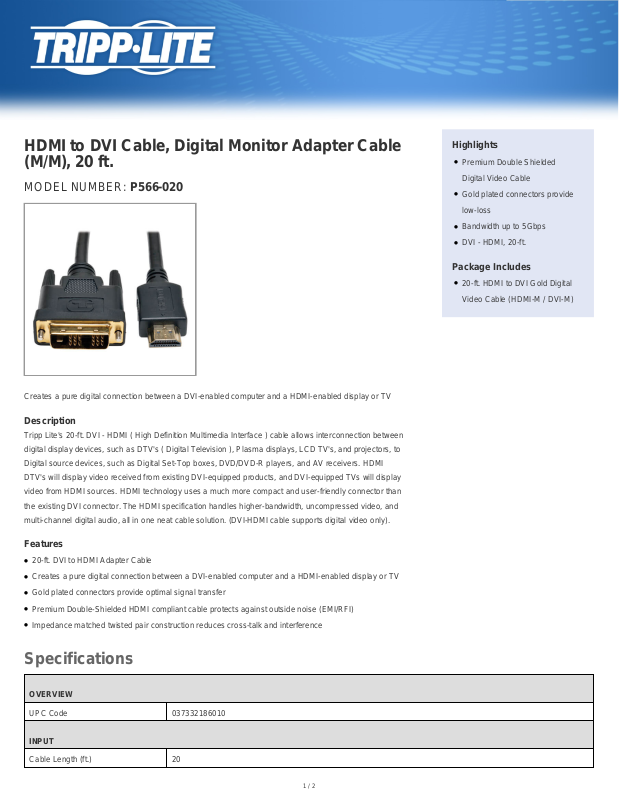

Tripp-Lite P566-020 Data Sheet

HDMI to DVI Cable, Digital Monitor Adapter Cable
(M/M), 20 ft.

MODEL NUMBER: P566-020

Creates a pure digital connection between a DVI-enabled computer and a HDMI-enabled display or TV

Description

Tripp Lite's 20-ft. DVI - HDMI ( High Definition Multimedia Interface ) cable allows interconnection between
digital display devices, such as DTV's ( Digital Television ), Plasma displays, LCD TV's, and projectors, to
Digital source devices, such as Digital Set-Top boxes, DVD/DVD-R players, and AV receivers. HDMI
DTV's will display video received from existing DVI-equipped products, and DVI-equipped TVs will display
video from HDMI sources. HDMI technology uses a much more compact and user-friendly connector than
the existing DVI connector. The HDMI specification handles higher-bandwidth, uncompressed video, and
multi-channel digital audio, all in one neat cable solution. (DVI-HDMI cable supports digital video only).

Highlights

●

Premium Double Shielded
Digital Video Cable

●

Gold plated connectors provide
low-loss

●

Bandwidth up to 5Gbps

●

DVI - HDMI, 20-ft.

Package Includes

●

20-ft. HDMI to DVI Gold Digital
Video Cable (HDMI-M / DVI-M)

Features

●

20-ft. DVI to HDMI Adapter Cable

●

Creates a pure digital connection between a DVI-enabled computer and a HDMI-enabled display or TV

●

Gold plated connectors provide optimal signal transfer

●

Premium Double-Shielded HDMI compliant cable protects against outside noise (EMI/RFI)

●

Impedance matched twisted pair construction reduces cross-talk and interference

Specifications

OVERVIEW

UPC Code 037332186010

INPUT

Cable Length (ft.) 20

1 / 2

Cable Length (m) 6.1

PHYSICAL

Color Black
Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 1.27
Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Weight (kg) 0.39
Shipping Weight (lbs.) 0.85

CONNECTIONS

Side A - Connector 1 HDMI (MALE)
Side B - Connector 1 DVI-D SINGLE LINK (MALE)

FEATURES & SPECIFICATIONS

Technology DVI; HDMI

WARRANTY

Product Warranty Period
(Worldwide)

Lifetime limited warranty
