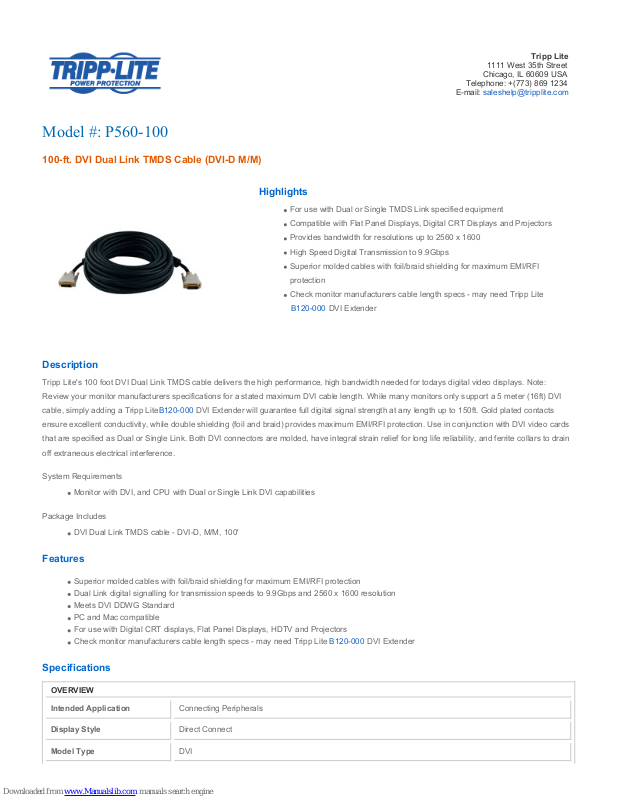

Tripp Lite P560-050, P561-010, P560-100 Specification Sheet
Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail: saleshelp@tripplite.com
Model #: P560-100
100-ft. DVI Dual Link TMDS Cable (DVI-D M/M)
Highlights
For use with Dual or Single TMDS Link specified equipment
Compatible with Flat Panel Displays, Digital CRT Displays and Projectors
Provides bandwidth for resolutions up to 2560 x 1600
High Speed Digital Transmission to 9.9Gbps
Superior molded cables with foil/braid shielding for maximum EMI/RFI
protection
Check monitor manufacturers cable length specs - may need Tripp Lite
B120-000 DVI Extender
Description
Tripp Lite's 100 foot DVI Dual Link TMDS cable delivers the high performance, high bandwidth needed for todays digital video displays. Note:
Review your monitor manufacturers specifications for a stated maximum DVI cable length. While many monitors only support a 5 meter (16ft) DVI
cable, simply adding a Tripp Lite B120-000 DVI Extender will guarantee full digital signal strength at any length up to 150ft. Gold plated contacts
ensure excellent conductivity, while double shielding (foil and braid) provides maximum EMI/RFI protection. Use in conjunction with DVI video cards
that are specified as Dual or Single Link. Both DVI connectors are molded, have integral strain relief for long life reliability, and ferrite collars to drain
off extraneous electrical interference.
System Requirements
Monitor with DVI, and CPU with Dual or Single Link DVI capabilities
Package Includes
DVI Dual Link TMDS cable - DVI-D, M/M, 100'
Features
Superior molded cables with foil/braid shielding for maximum EMI/RFI protection
Dual Link digital signalling for transmission speeds to 9.9Gbps and 2560 x 1600 resolution
Meets DVI DDWG Standard
PC and Mac compatible
For use with Digital CRT displays, Flat Panel Displays, HDTV and Projectors
Check monitor manufacturers cable length specs - may need Tripp Lite B120-000 DVI Extender
Specifications
OVERVIEW
Intended Application Connecting Peripherals
Display Style Direct Connect
Model Type DVI
INPUT
Cable Length (ft.) 100
Cable Length (m) 30.48
PHYSICAL
Color Black
Style DVI
CONNECTIONS
Connector A
DVI-D DUAL LINK (MALE)
Connector B
DVI-D DUAL LINK (MALE)
Number of Connectors 2
CERTIFICATIONS
Certifications RoHS
WARRANTY
Product Warranty Period
(Worldwide)
Lifetime limited warranty
Related Items
Optional Products
Product Type Related Model Description Qty.
Cables and Accessories P120-000 DVI Male to VGA Female Adapter
(Analog DVI-M to HD15F)
1
Extenders/Signal Boosters B120-000 DVI Dual Link Signal Extender
(DVI F/F)
1
Video Cables & Adapters P126-000 DVI Female to VGA Male Adapter
(Analog DVI-F to HD15M)
1
Video Cables & Adapters P560-006 6-ft. DVI Dual Link TDMS Cable
(DVI-D M/M)
1
Video Cables & Adapters P560-010 10-ft. DVI Dual Link TDMS Cable
(DVI-D M/M)
1
Video Cables & Adapters P560-050 50-ft. DVI Dual Link TDMS Cable
(DVI-D M/M)
1
Video Cables & Adapters P561-006 6-ft. DVI Single Link TMDS Cable (DVI-D M/M) 1
Video Cables & Adapters P561-010 10-ft. DVI Single Link TMDS Cable (DVI-D M/M) 1
Video Cables & Adapters P562-006 6-ft. DVI Dual Link Extension TDMS Cable
(DVI-D M/F)
1
More information, including related products, owner's manuals, and additional technical specifications, can be found online at
www.tripplite.com/en/products/model.cfm?txtModelID=3327.
Copyright © 2012 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous
improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
