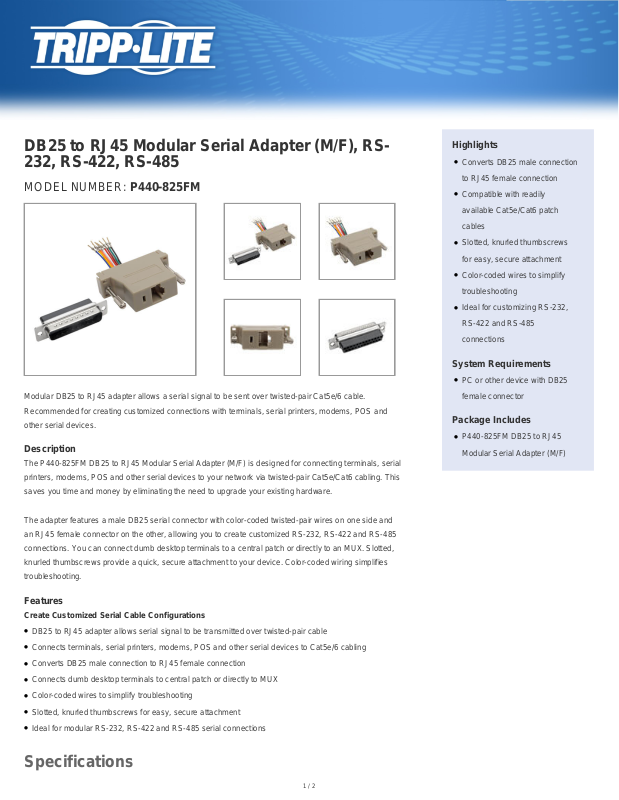

Tripp-Lite P440-825FM Data Sheet
DB25 to RJ45 Modular Serial Adapter (M/F), RS232, RS-422, RS-485
MODEL NUMBER: P440-825FM
Modular DB25 to RJ45 adapter allows a serial signal to be sent over twisted-pair Cat5e/6 cable.
Recommended for creating customized connections with terminals, serial printers, modems, POS and
other serial devices.
Description
The P440-825FM DB25 to RJ45 Modular Serial Adapter (M/F) is designed for connecting terminals, serial
printers, modems, POS and other serial devices to your network via twisted-pair Cat5e/Cat6 cabling. This
saves you time and money by eliminating the need to upgrade your existing hardware.
Highlights
●
Converts DB25 male connection
to RJ45 female connection
●
Compatible with readily
available Cat5e/Cat6 patch
cables
●
Slotted, knurled thumbscrews
for easy, secure attachment
●
Color-coded wires to simplify
troubleshooting
●
Ideal for customizing RS-232,
RS-422 and RS-485
connections
System Requirements
●
PC or other device with DB25
female connector
Package Includes
●
P440-825FM DB25 to RJ45
Modular Serial Adapter (M/F)
The adapter features a male DB25 serial connector with color-coded twisted-pair wires on one side and
an RJ45 female connector on the other, allowing you to create customized RS-232, RS-422 and RS-485
connections. You can connect dumb desktop terminals to a central patch or directly to an MUX. Slotted,
knurled thumbscrews provide a quick, secure attachment to your device. Color-coded wiring simplifies
troubleshooting.
Features
Create Customized Serial Cable Configurations
●
DB25 to RJ45 adapter allows serial signal to be transmitted over twisted-pair cable
●
Connects terminals, serial printers, modems, POS and other serial devices to Cat5e/6 cabling
●
Converts DB25 male connection to RJ45 female connection
●
Connects dumb desktop terminals to central patch or directly to MUX
●
Color-coded wires to simplify troubleshooting
●
Slotted, knurled thumbscrews for easy, secure attachment
●
Ideal for modular RS-232, RS-422 and RS-485 serial connections
Specifications
1 / 2
OVERVIEW
UPC Code 037332206336
PHYSICAL
Color Beige
Shipping Dimensions (hwd / cm) 1.27 x 10.01 x 15.24
Shipping Dimensions (hwd / in.) 0.50 x 3.94 x 6.00
Shipping Weight (kg) 0.09
Shipping Weight (lbs.) 0.20
CONNECTIONS
Side A - Connector 1 DB25 (MALE)
Side B - Connector 1 RJ45 (FEMALE)
FEATURES & SPECIFICATIONS
Technology Cat5/5e; Cat6; Cat6a; DB25; Modem; Null Modem; Parallel; Serial (RS232)
STANDARDS & COMPLIANCE
Certifications RoHS Compliant
WARRANTY
Product Warranty Period
(Worldwide)
Lifetime limited warranty
