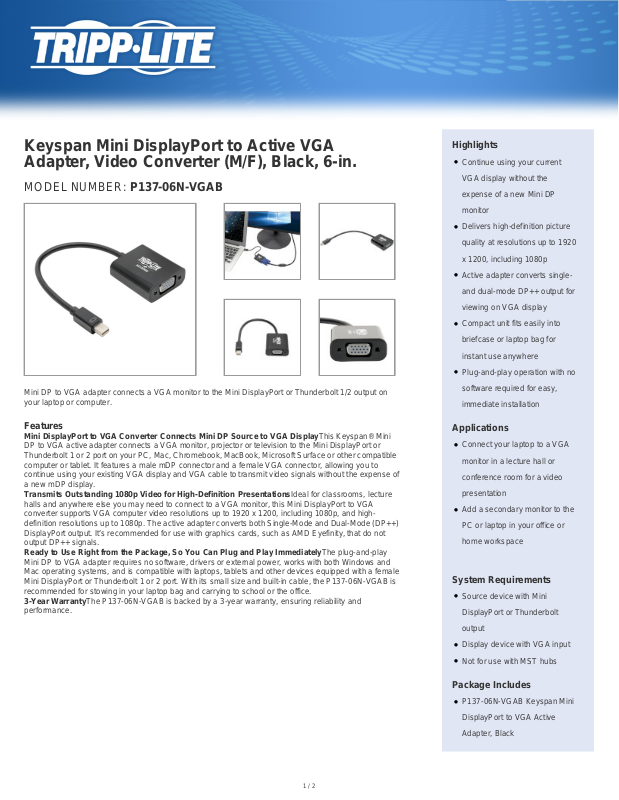

Tripp-Lite P137-06N-VGAB Data Sheet
Keyspan Mini DisplayPort to Active VGA
Adapter, Video Converter (M/F), Black, 6-in.
MODEL NUMBER: P137-06N-VGAB
Mini DP to VGA adapter connects a VGA monitor to the Mini DisplayPort or Thunderbolt 1/2 output on
your laptop or computer.
Highlights
●
Continue using your current
VGA display without the
expense of a new Mini DP
monitor
●
Delivers high-definition picture
quality at resolutions up to 1920
x 1200, including 1080p
●
Active adapter converts singleand dual-mode DP++ output for
viewing on VGA display
●
Compact unit fits easily into
briefcase or laptop bag for
instant use anywhere
●
Plug-and-play operation with no
software required for easy,
immediate installation
Features
Mini DisplayPort to VGA Converter Connects Mini DP Source to VGA DisplayThis Keyspan® Mini
DP to VGA active adapter connects a VGA monitor, projector or television to the Mini DisplayPort or
Thunderbolt 1 or 2 port on your PC, Mac, Chromebook, MacBook, Microsoft Surface or other compatible
computer or tablet. It features a male mDP connector and a female VGA connector, allowing you to
continue using your existing VGA display and VGA cable to transmit video signals without the expense of
a new mDP display.
Transmits Outstanding 1080p Video for High-Definition PresentationsIdeal for classrooms, lecture
halls and anywhere else you may need to connect to a VGA monitor, this Mini DisplayPort to VGA
converter supports VGA computer video resolutions up to 1920 x 1200, including 1080p, and highdefinition resolutions up to 1080p. The active adapter converts both Single-Mode and Dual-Mode (DP++)
DisplayPort output. It’s recommended for use with graphics cards, such as AMD Eyefinity, that do not
output DP++ signals.
Ready to Use Right from the Package, So You Can Plug and Play ImmediatelyThe plug-and-play
Mini DP to VGA adapter requires no software, drivers or external power, works with both Windows and
Mac operating systems, and is compatible with laptops, tablets and other devices equipped with a female
Mini DisplayPort or Thunderbolt 1 or 2 port. With its small size and built-in cable, the P137-06N-VGAB is
recommended for stowing in your laptop bag and carrying to school or the office.
3-Year WarrantyThe P137-06N-VGAB is backed by a 3-year warranty, ensuring reliability and
performance.
Applications
●
Connect your laptop to a VGA
monitor in a lecture hall or
conference room for a video
presentation
●
Add a secondary monitor to the
PC or laptop in your office or
home workspace
System Requirements
●
Source device with Mini
DisplayPort or Thunderbolt
output
●
Display device with VGA input
●
Not for use with MST hubs
Package Includes
●
P137-06N-VGAB Keyspan Mini
DisplayPort to VGA Active
Adapter, Black
1 / 2
Specifications
OVERVIEW
UPC Code 037332210579
INPUT
Cable Length (ft.) 1
Cable Length (m) 0
Cable Length (in.) 6
Cable Length (cm) 15
PHYSICAL
Color Black
ENVIRONMENTAL
Operating Temperature Range 32 TO 158 F (0 TO 70 C)
Storage Temperature Range 14 TO 176 F (-10 TO 80 C)
Operating Humidity Range 10% TO 85% RH, NON-CONDENSING
Storage Humidity Range 5% TO 90% RH, NON-CONDENSING
CONNECTIONS
Side A - Connector 1 MINI DISPLAYPORT (MALE)
Side B - Connector 1 HD15 (FEMALE)
FEATURES & SPECIFICATIONS
Technology VGA/SVGA; DisplayPort
STANDARDS & COMPLIANCE
Certifications Tested to CE, FCC, RoHS
WARRANTY
Product Warranty Period
(Worldwide)
3-year limited warranty
