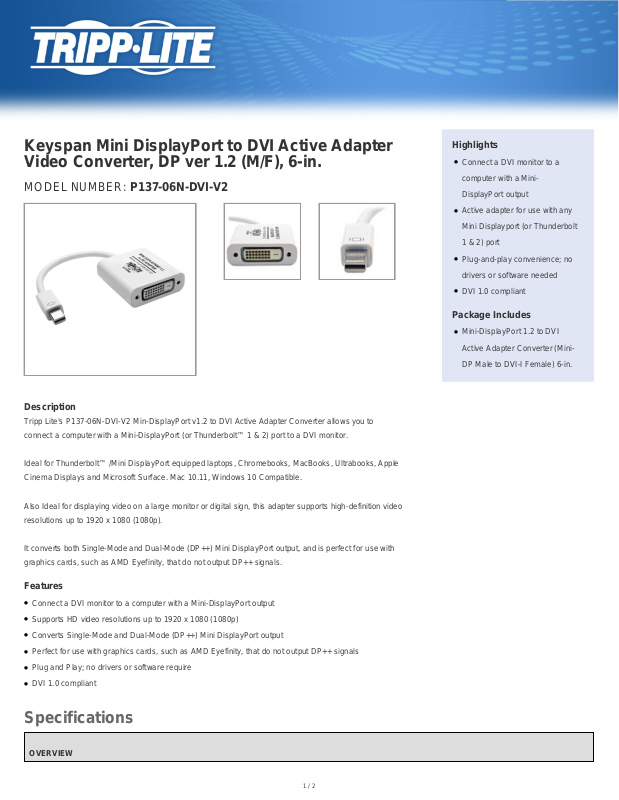

Tripp-Lite P137-06N-DVI-V2 Data Sheet
Keyspan Mini DisplayPort to DVI Active Adapter
Video Converter, DP ver 1.2 (M/F), 6-in.
MODEL NUMBER: P137-06N-DVI-V2
Description
Tripp Lite's P137-06N-DVI-V2 Min-DisplayPort v1.2 to DVI Active Adapter Converter allows you to
connect a computer with a Mini-DisplayPort (or Thunderbolt™ 1 & 2) port to a DVI monitor.
Highlights
●
Connect a DVI monitor to a
computer with a MiniDisplayPort output
●
Active adapter for use with any
Mini Displayport (or Thunderbolt
1 & 2) port
●
Plug-and-play convenience; no
drivers or software needed
●
DVI 1.0 compliant
Package Includes
●
Mini-DisplayPort 1.2 to DVI
Active Adapter Converter (MiniDP Male to DVI-I Female) 6-in.
Ideal for Thunderbolt™ /Mini DisplayPort equipped laptops, Chromebooks, MacBooks, Ultrabooks, Apple
Cinema Displays and Microsoft Surface. Mac 10.11, Windows 10 Compatible.
Also Ideal for displaying video on a large monitor or digital sign, this adapter supports high-definition video
resolutions up to 1920 x 1080 (1080p).
It converts both Single-Mode and Dual-Mode (DP++) Mini DisplayPort output, and is perfect for use with
graphics cards, such as AMD Eyefinity, that do not output DP++ signals.
Features
●
Connect a DVI monitor to a computer with a Mini-DisplayPort output
●
Supports HD video resolutions up to 1920 x 1080 (1080p)
●
Converts Single-Mode and Dual-Mode (DP++) Mini DisplayPort output
●
Perfect for use with graphics cards, such as AMD Eyefinity, that do not output DP++ signals
●
Plug and Play; no drivers or software require
●
DVI 1.0 compliant
Specifications
OVERVIEW
1 / 2
UPC Code 037332187536
INPUT
Cable Length (ft.) 0.5
Cable Length (m) 0.2
Cable Length (in.) 6
Cable Length (cm) 15.24
PHYSICAL
Color White
Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 1.27
Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Weight (kg) 0.04
Shipping Weight (lbs.) 0.08
CONNECTIONS
Side A - Connector 1 MINI DISPLAYPORT (MALE)
Side B - Connector 1 DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK)
FEATURES & SPECIFICATIONS
Technology DVI; DisplayPort
WARRANTY
Product Warranty Period
(Worldwide)
3-year limited warranty
