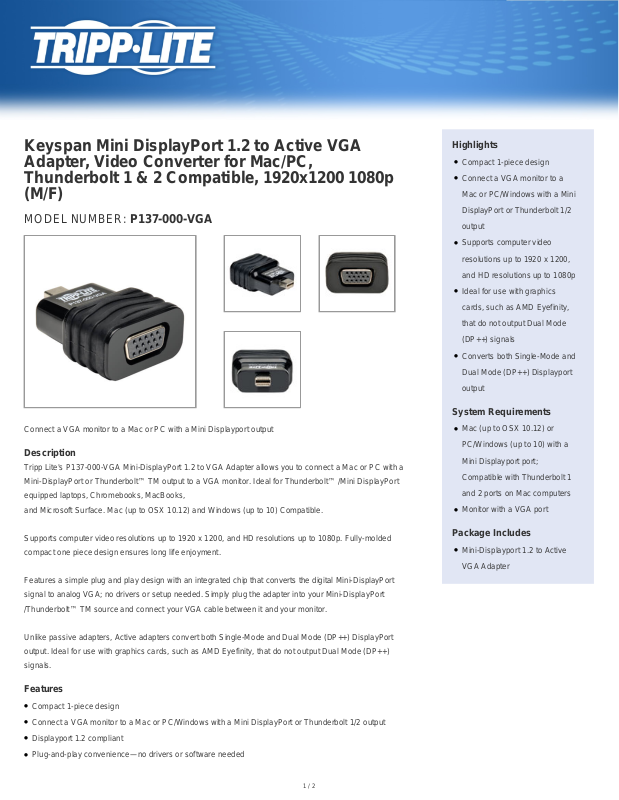

Tripp-Lite P137-000-VGA Data Sheet

Keyspan Mini DisplayPort 1.2 to Active VGA
Adapter, Video Converter for Mac/PC,
Thunderbolt 1 & 2 Compatible, 1920x1200 1080p
(M/F)

MODEL NUMBER: P137-000-VGA

Connect a VGA monitor to a Mac or PC with a Mini Displayport output

Description

Tripp Lite's P137-000-VGA Mini-DisplayPort 1.2 to VGA Adapter allows you to connect a Mac or PC with a
Mini-DisplayPort or Thunderbolt™ TM output to a VGA monitor. Ideal for Thunderbolt™ /Mini DisplayPort
equipped laptops, Chromebooks, MacBooks,
and Microsoft Surface. Mac (up to OSX 10.12) and Windows (up to 10) Compatible.

Highlights

●

Compact 1-piece design

●

Connect a VGA monitor to a
Mac or PC/Windows with a Mini
DisplayPort or Thunderbolt 1/2
output

●

Supports computer video
resolutions up to 1920 x 1200,
and HD resolutions up to 1080p

●

Ideal for use with graphics
cards, such as AMD Eyefinity,
that do not output Dual Mode
(DP++) signals

●

Converts both Single-Mode and
Dual Mode (DP++) Displayport
output

System Requirements

●

Mac (up to OSX 10.12) or
PC/Windows (up to 10) with a
Mini Displayport port;
Compatible with Thunderbolt 1
and 2 ports on Mac computers

●

Monitor with a VGA port

Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p. Fully-molded
compact one piece design ensures long life enjoyment.

Features a simple plug and play design with an integrated chip that converts the digital Mini-DisplayPort
signal to analog VGA; no drivers or setup needed. Simply plug the adapter into your Mini-DisplayPort
/Thunderbolt™ TM source and connect your VGA cable between it and your monitor.

Unlike passive adapters, Active adapters convert both Single-Mode and Dual Mode (DP++) DisplayPort
output. Ideal for use with graphics cards, such as AMD Eyefinity, that do not output Dual Mode (DP++)
signals.

Features

●

Compact 1-piece design

●

Connect a VGA monitor to a Mac or PC/Windows with a Mini DisplayPort or Thunderbolt 1/2 output

●

Displayport 1.2 compliant

●

Plug-and-play convenience—no drivers or software needed

1 / 2

Package Includes

●

Mini-Displayport 1.2 to Active
VGA Adapter

●

Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p

●

Ideal for use with graphics cards, such as AMD Eyefinity, that do not output Dual Mode (DP++) signals

●

Converts both Single-Mode and Dual Mode (DP++) Displayport output

Specifications

OVERVIEW

UPC Code 037332184825

PHYSICAL

Color Black
Shipping Dimensions (hwd / cm) 4.57 x 9.14 x 13.72
Shipping Dimensions (hwd / in.) 1.80 x 3.60 x 5.40
Shipping Weight (kg) 0.09
Shipping Weight (lbs.) 0.20

CONNECTIONS

Side A - Connector 1 MINI DISPLAYPORT (MALE)
Side B - Connector 1 HD15 (FEMALE)

FEATURES & SPECIFICATIONS

Technology VGA/SVGA; DisplayPort

STANDARDS & COMPLIANCE

Certifications RoHS

WARRANTY

Product Warranty Period
(Worldwide)

3-year limited warranty
