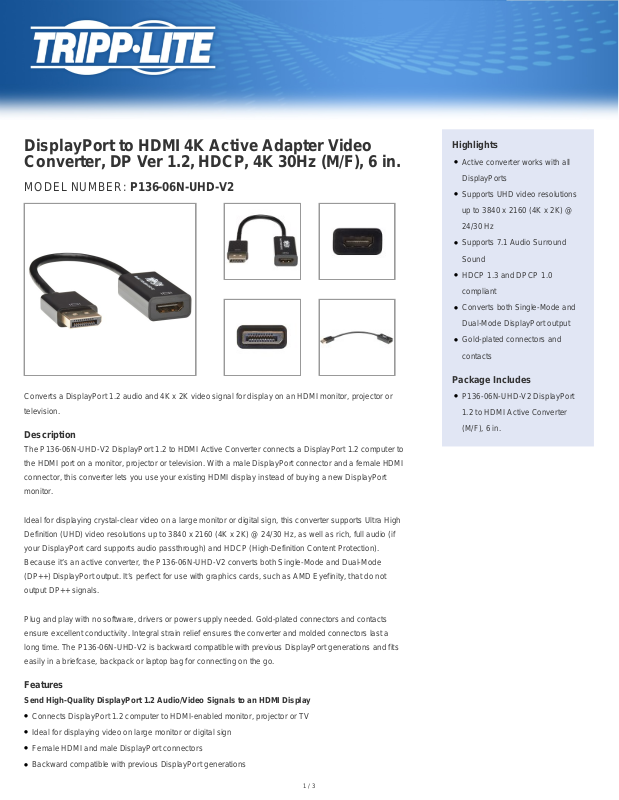

Tripp-Lite P136-06N-UHD-V2 Data Sheet

DisplayPort to HDMI 4K Active Adapter Video
Converter, DP Ver 1.2, HDCP, 4K 30Hz (M/F), 6 in.

MODEL NUMBER: P136-06N-UHD-V2

Converts a DisplayPort 1.2 audio and 4K x 2K video signal for display on an HDMI monitor, projector or
television.

Description

The P136-06N-UHD-V2 DisplayPort 1.2 to HDMI Active Converter connects a DisplayPort 1.2 computer to
the HDMI port on a monitor, projector or television. With a male DisplayPort connector and a female HDMI
connector, this converter lets you use your existing HDMI display instead of buying a new DisplayPort
monitor.

Highlights

●

Active converter works with all
DisplayPorts

●

Supports UHD video resolutions
up to 3840 x 2160 (4K x 2K) @
24/30 Hz

●

Supports 7.1 Audio Surround
Sound

●

HDCP 1.3 and DPCP 1.0
compliant

●

Converts both Single-Mode and
Dual-Mode DisplayPort output

●

Gold-plated connectors and
contacts

Package Includes

●

P136-06N-UHD-V2 DisplayPort

1.2 to HDMI Active Converter
(M/F), 6 in.

Ideal for displaying crystal-clear video on a large monitor or digital sign, this converter supports Ultra High
Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) @ 24/30 Hz, as well as rich, full audio (if
your DisplayPort card supports audio passthrough) and HDCP (High-Definition Content Protection).
Because it’s an active converter, the P136-06N-UHD-V2 converts both Single-Mode and Dual-Mode
(DP++) DisplayPort output. It’s perfect for use with graphics cards, such as AMD Eyefinity, that do not
output DP++ signals.

Plug and play with no software, drivers or power supply needed. Gold-plated connectors and contacts
ensure excellent conductivity. Integral strain relief ensures the converter and molded connectors last a
long time. The P136-06N-UHD-V2 is backward compatible with previous DisplayPort generations and fits
easily in a briefcase, backpack or laptop bag for connecting on the go.

Features

Send High-Quality DisplayPort 1.2 Audio/Video Signals to an HDMI Display

●

Connects DisplayPort 1.2 computer to HDMI-enabled monitor, projector or TV

●

Ideal for displaying video on large monitor or digital sign

●

Female HDMI and male DisplayPort connectors

●

Backward compatible with previous DisplayPort generations

1 / 3

Vibrant, Superior Video Quality

●

Supports Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) @ 24/30 Hz

●

Supports 7.1 Audio Surround Sound

●

HDCP 1.3 and DPCP 1.0 compliant

●

Converts both Single-Mode and Dual-Mode DisplayPort output

●

Works with graphics cards that don’t output DP++ signals, such as AMD Eyefinity

Superior Materials for Superior Performance

●

Gold-plated connectors and contacts for excellent conductivity

●

Integral strain relief for long life

●

Plug-and-play—no software, drivers or power supply necessary

●

Fits easily into briefcase, backpack or laptop bag

Specifications

OVERVIEW

UPC Code 037332192028

INPUT

Cable Length (in.) 6
Cable Length (cm) 15.24

PHYSICAL

Color Black
Shipping Dimensions (hwd / cm) 17.78 x 22.86 x 1.27
Shipping Dimensions (hwd / in.) 7.00 x 9.00 x 0.50
Shipping Weight (kg) 0.04
Shipping Weight (lbs.) 0.09

CONNECTIONS

Side A - Connector 1 DISPLAYPORT (MALE)
Side B - Connector 1 HDMI (FEMALE)

FEATURES & SPECIFICATIONS

HDCP Specification 1.3
Technology HDMI; DisplayPort
