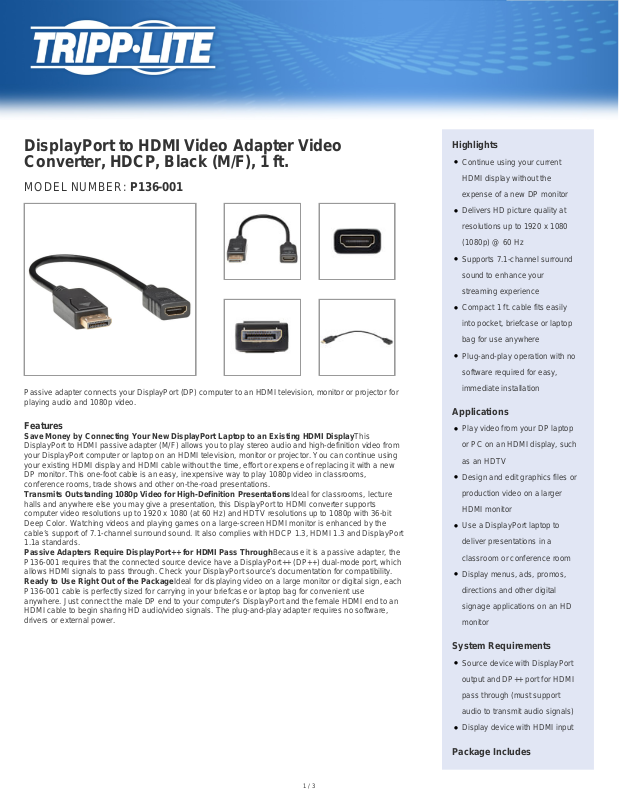

DisplayPort to HDMI Video Adapter Video
Converter, HDCP, Black (M/F), 1 ft.
MODEL NUMBER: P136-001
Passive adapter connects your DisplayPort (DP) computer to an HDMI television, monitor or projector for
playing audio and 1080p video.
Features
Save Money by Connecting Your New DisplayPort Laptop to an Existing HDMI DisplayThis
DisplayPort to HDMI passive adapter (M/F) allows you to play stereo audio and high-definition video from
your DisplayPort computer or laptop on an HDMI television, monitor or projector. You can continue using
your existing HDMI display and HDMI cable without the time, effort or expense of replacing it with a new
DP monitor. This one-foot cable is an easy, inexpensive way to play 1080p video in classrooms,
conference rooms, trade shows and other on-the-road presentations.
Transmits Outstanding 1080p Video for High-Definition PresentationsIdeal for classrooms, lecture
halls and anywhere else you may give a presentation, this DisplayPort to HDMI converter supports
computer video resolutions up to 1920 x 1080 (at 60 Hz) and HDTV resolutions up to 1080p with 36-bit
Deep Color. Watching videos and playing games on a large-screen HDMI monitor is enhanced by the
cable’s support of 7.1-channel surround sound. It also complies with HDCP 1.3, HDMI 1.3 and DisplayPort
1.1a standards.
Passive Adapters Require DisplayPort++ for HDMI Pass ThroughBecause it is a passive adapter, the
P136-001 requires that the connected source device have a DisplayPort++ (DP++) dual-mode port, which
allows HDMI signals to pass through. Check your DisplayPort source’s documentation for compatibility.
Ready to Use Right Out of the PackageIdeal for displaying video on a large monitor or digital sign, each
P136-001 cable is perfectly sized for carrying in your briefcase or laptop bag for convenient use
anywhere. Just connect the male DP end to your computer’s DisplayPort and the female HDMI end to an
HDMI cable to begin sharing HD audio/video signals. The plug-and-play adapter requires no software,
drivers or external power.
Highlights
●
Continue using your current
HDMI display without the
expense of a new DP monitor
●
Delivers HD picture quality at
resolutions up to 1920 x 1080
(1080p) @ 60 Hz
●
Supports 7.1-channel surround
sound to enhance your
streaming experience
●
Compact 1 ft. cable fits easily
into pocket, briefcase or laptop
bag for use anywhere
●
Plug-and-play operation with no
software required for easy,
immediate installation
Applications
●
Play video from your DP laptop
or PC on an HDMI display, such
as an HDTV
●
Design and edit graphics files or
production video on a larger
HDMI monitor
●
Use a DisplayPort laptop to
deliver presentations in a
classroom or conference room
●
Display menus, ads, promos,
directions and other digital
signage applications on an HD
monitor
1 / 3
System Requirements
●
Source device with DisplayPort
output and DP++ port for HDMI
pass through (must support
audio to transmit audio signals)
●
Display device with HDMI input
Package Includes
Specifications
OVERVIEW
UPC Code 037332242587
INPUT
Cable Length (ft.) 1
Cable Length (in.) 12
Bus Powered Yes
Cable Length (cm) 30.48
POWER
LED Indicators N/A
●
P136-001 DisplayPort to HDMI
Video Adapter Converter, M/F, 1
ft., Black
PHYSICAL
Cable Jacket Type VW-1
Cable Outer Diameter (OD) 5.5mm
Color Black
Material of Construction ABS, PVC
ENVIRONMENTAL
Operating Temperature Range 32 to 113 F (0 to 45 C)
Storage Temperature Range 14 to 158 F (-10 to 70 C)
Operating Humidity Range 10% to 85% RH, Non-Condensing
Storage Humidity Range 5% to 90% RH, Non-Condensing
CONNECTIONS
Ports 1
Side A - Connector 1 DISPLAYPORT (MALE)
Side B - Connector 1 HDMI (FEMALE)
Connector Plating Gold
Contact Plating Gold
2 / 3
FEATURES & SPECIFICATIONS
Max Supported Video Resolution 1920 x 1080 @60Hz
Displayport Specification 1.1a
HDMI Specification 1.3
HDCP Specification 1.3
Audio Specification 7.1 Surround Sound
Driver Required No
Max Supported Color Depth 36-bit Deep Color
Technology HDMI; DisplayPort
SPECIAL FEATURES
HDR Support No
Fully Molded Connector Ends Yes
Ohms No
EMI/RFI Line Noise Protection No
Integral Strain Relief No
Impedance-Matched Twisted-Pair
Construction
DIN Mountable No
Integrated/Removable Cable No
MST Support No
Scaler Function No
IP67 Rated No
STANDARDS & COMPLIANCE
Certifications Tested to CE, FCC, RoHS, REACH
WARRANTY
Product Warranty Period
(Worldwide)
No
3-year limited warranty
