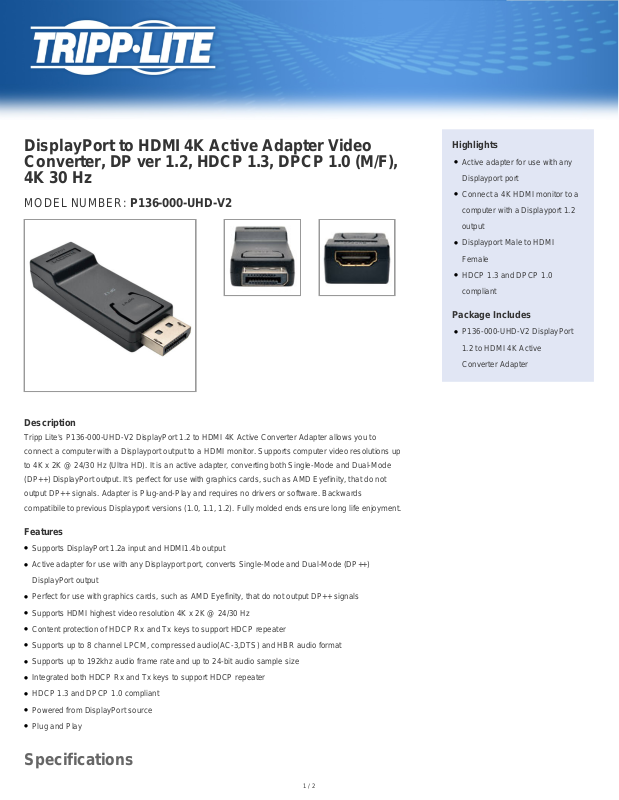

Tripp-Lite P136-000-UHD-V2 Data Sheet

DisplayPort to HDMI 4K Active Adapter Video
Converter, DP ver 1.2, HDCP 1.3, DPCP 1.0 (M/F),
4K 30 Hz

MODEL NUMBER: P136-000-UHD-V2

Description

Tripp Lite's P136-000-UHD-V2 DisplayPort 1.2 to HDMI 4K Active Converter Adapter allows you to
connect a computer with a Displayport output to a HDMI monitor. Supports computer video resolutions up
to 4K x 2K @ 24/30 Hz (Ultra HD). It is an active adapter, converting both Single-Mode and Dual-Mode
(DP++) DisplayPort output. It’s perfect for use with graphics cards, such as AMD Eyefinity, that do not
output DP++ signals. Adapter is Plug-and-Play and requires no drivers or software. Backwards
compatibile to previous Displayport versions (1.0, 1.1, 1.2). Fully molded ends ensure long life enjoyment.

Highlights

●

Active adapter for use with any
Displayport port

●

Connect a 4K HDMI monitor to a
computer with a Displayport 1.2
output

●

Displayport Male to HDMI
Female

●

HDCP 1.3 and DPCP 1.0
compliant

Package Includes

●

P136-000-UHD-V2 DisplayPort

1.2 to HDMI 4K Active
Converter Adapter

Features

●

Supports DisplayPort 1.2a input and HDMI1.4b output

●

Active adapter for use with any Displayport port, converts Single-Mode and Dual-Mode (DP++)
DisplayPort output

●

Perfect for use with graphics cards, such as AMD Eyefinity, that do not output DP++ signals

●

Supports HDMI highest video resolution 4K x 2K @ 24/30 Hz

●

Content protection of HDCP Rx and Tx keys to support HDCP repeater

●

Supports up to 8 channel LPCM, compressed audio(AC-3,DTS) and HBR audio format

●

Supports up to 192khz audio frame rate and up to 24-bit audio sample size

●

Integrated both HDCP Rx and Tx keys to support HDCP repeater

●

HDCP 1.3 and DPCP 1.0 compliant

●

Powered from DisplayPort source

●

Plug and Play

Specifications

1 / 2

OVERVIEW

UPC Code 037332188328

PHYSICAL

Color Black
Shipping Dimensions (hwd / cm) 14.99 x 9.91 x 1.27
Shipping Dimensions (hwd / in.) 5.90 x 3.90 x 0.50
Shipping Weight (kg) 0.02
Shipping Weight (lbs.) 0.04

CONNECTIONS

Side A - Connector 1 DISPLAYPORT (MALE)
Side B - Connector 1 HDMI (FEMALE)

FEATURES & SPECIFICATIONS

HDCP Specification 1.3
Technology HDMI; DisplayPort

WARRANTY

Product Warranty Period
(Worldwide)

3-year limited warranty
