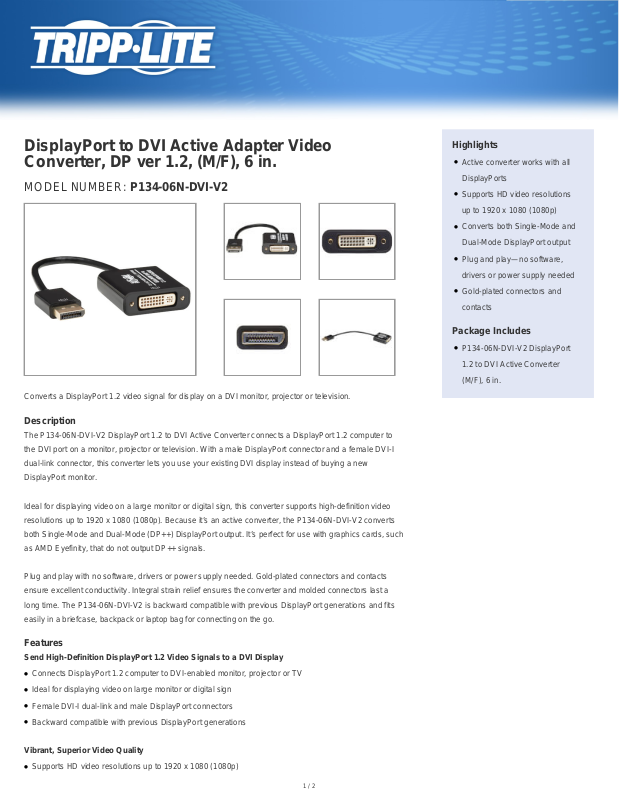

Tripp-Lite P134-06N-DVI-V2 Data Sheet

DisplayPort to DVI Active Adapter Video
Converter, DP ver 1.2, (M/F), 6 in.

MODEL NUMBER: P134-06N-DVI-V2

Converts a DisplayPort 1.2 video signal for display on a DVI monitor, projector or television.

Description

The P134-06N-DVI-V2 DisplayPort 1.2 to DVI Active Converter connects a DisplayPort 1.2 computer to
the DVI port on a monitor, projector or television. With a male DisplayPort connector and a female DVI-I
dual-link connector, this converter lets you use your existing DVI display instead of buying a new
DisplayPort monitor.

Highlights

●

Active converter works with all
DisplayPorts

●

Supports HD video resolutions
up to 1920 x 1080 (1080p)

●

Converts both Single-Mode and
Dual-Mode DisplayPort output

●

Plug and play—no software,
drivers or power supply needed

●

Gold-plated connectors and
contacts

Package Includes

●

P134-06N-DVI-V2 DisplayPort

1.2 to DVI Active Converter
(M/F), 6 in.

Ideal for displaying video on a large monitor or digital sign, this converter supports high-definition video
resolutions up to 1920 x 1080 (1080p). Because it’s an active converter, the P134-06N-DVI-V2 converts
both Single-Mode and Dual-Mode (DP++) DisplayPort output. It’s perfect for use with graphics cards, such
as AMD Eyefinity, that do not output DP++ signals.

Plug and play with no software, drivers or power supply needed. Gold-plated connectors and contacts
ensure excellent conductivity. Integral strain relief ensures the converter and molded connectors last a
long time. The P134-06N-DVI-V2 is backward compatible with previous DisplayPort generations and fits
easily in a briefcase, backpack or laptop bag for connecting on the go.

Features

Send High-Definition DisplayPort 1.2 Video Signals to a DVI Display

●

Connects DisplayPort 1.2 computer to DVI-enabled monitor, projector or TV

●

Ideal for displaying video on large monitor or digital sign

●

Female DVI-I dual-link and male DisplayPort connectors

●

Backward compatible with previous DisplayPort generations

Vibrant, Superior Video Quality

●

Supports HD video resolutions up to 1920 x 1080 (1080p)

1 / 2

●

Converts both Single-Mode and Dual-Mode DisplayPort output

●

Works with graphics cards that don’t output DP++ signals, such as AMD Eyefinity

Superior Materials for Superior Performance

●

Gold-plated connectors and contacts for excellent conductivity

●

Integral strain relief for long life

●

Plug-and-play—no software, drivers or power supply necessary

●

Fits easily into briefcase, backpack or laptop bag

Specifications

OVERVIEW

UPC Code 037332192035

INPUT

Cable Length (in.) 6
Cable Length (cm) 15.24

PHYSICAL

Color Black
Shipping Dimensions (hwd / cm) 17.78 x 22.86 x 1.27
Shipping Dimensions (hwd / in.) 7.00 x 9.00 x 0.50
Shipping Weight (kg) 0.04
Shipping Weight (lbs.) 0.09

CONNECTIONS

Side A - Connector 1 DISPLAYPORT (MALE)
Side B - Connector 1 DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK)

FEATURES & SPECIFICATIONS

Technology DVI; DisplayPort

WARRANTY

Product Warranty Period
(Worldwide)

3-year limited warranty
