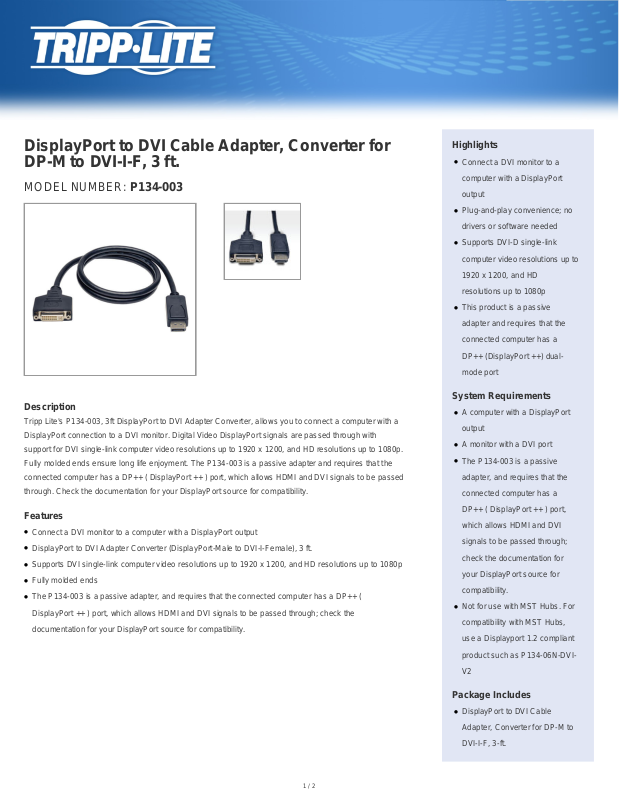

Tripp-Lite P134-003 Data Sheet

DisplayPort to DVI Cable Adapter, Converter for
DP-M to DVI-I-F, 3 ft.

MODEL NUMBER: P134-003

Description

Tripp Lite's P134-003, 3ft DisplayPort to DVI Adapter Converter, allows you to connect a computer with a
DisplayPort connection to a DVI monitor. Digital Video DisplayPort signals are passed through with
support for DVI single-link computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p.
Fully molded ends ensure long life enjoyment. The P134-003 is a passive adapter and requires that the
connected computer has a DP++ ( DisplayPort ++ ) port, which allows HDMI and DVI signals to be passed
through. Check the documentation for your DisplayPort source for compatibility.

Features

●

Connect a DVI monitor to a computer with a DisplayPort output

●

DisplayPort to DVI Adapter Converter (DisplayPort-Male to DVI-I-Female), 3 ft.

●

Supports DVI single-link computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p

●

Fully molded ends

●

The P134-003 is a passive adapter, and requires that the connected computer has a DP++ (
DisplayPort ++ ) port, which allows HDMI and DVI signals to be passed through; check the
documentation for your DisplayPort source for compatibility.

Highlights

●

Connect a DVI monitor to a
computer with a DisplayPort
output

●

Plug-and-play convenience; no
drivers or software needed

●

Supports DVI-D single-link
computer video resolutions up to
1920 x 1200, and HD
resolutions up to 1080p

●

This product is a passive
adapter and requires that the
connected computer has a
DP++ (DisplayPort ++) dual­mode port

System Requirements

●

A computer with a DisplayPort
output

●

A monitor with a DVI port

●

The P134-003 is a passive
adapter, and requires that the
connected computer has a
DP++ ( DisplayPort ++ ) port,
which allows HDMI and DVI
signals to be passed through;
check the documentation for
your DisplayPort source for
compatibility.

●

Not for use with MST Hubs. For
compatibility with MST Hubs,
use a Displayport 1.2 compliant
product such as P134-06N-DVI­V2

1 / 2

Package Includes

●

DisplayPort to DVI Cable
Adapter, Converter for DP-M to
DVI-I-F, 3-ft.

Specifications

OVERVIEW

UPC Code 037332186492

INPUT

Cable Length (m) 1

PHYSICAL

Color Black
Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 1.27
Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Weight (kg) 0.12
Shipping Weight (lbs.) 0.26

CONNECTIONS

Side A - Connector 1 DISPLAYPORT (MALE)
Side B - Connector 1 DVI-I (FEMALE)

FEATURES & SPECIFICATIONS

Technology DVI; DisplayPort

WARRANTY

Product Warranty Period
(Worldwide)

3-year limited warranty

© 2020 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https:// products/product-certification-agencies

2 / 2
