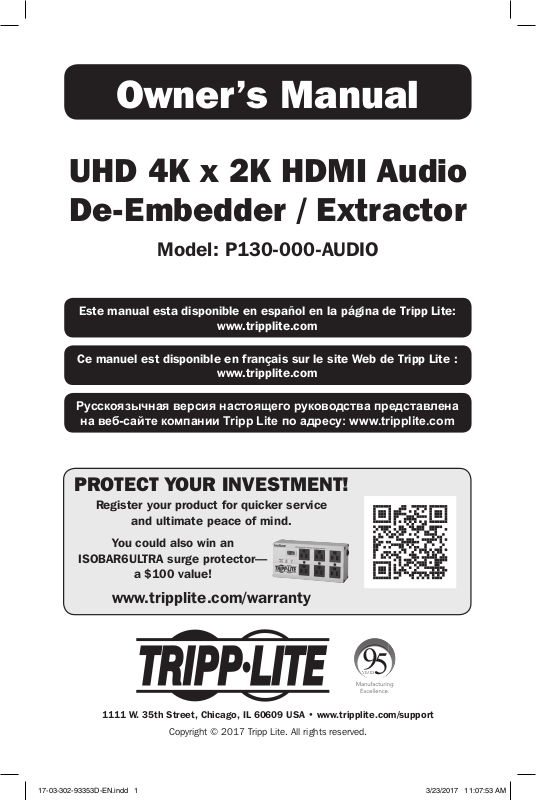

Owner’s Manual
UHD 4K x 2K HDMI Audio
De-Embedder / Extractor
Model: P130-000-AUDIO
Este manual esta disponible en español en la página de Tripp Lite:
www.tripplite.com
Ce manuel est disponible en français sur le site Web de Tripp Lite :
www.tripplite.com
Русскоязычная версия настоящего руководства представлена
на веб-сайте компании Tripp Lite по адресу: www.tripplite.com
PROTECT YOUR INVESTMENT!
Register your product for quicker service
and ultimate peace of mind.
You could also win an
ISOBAR6ULTRA surge protector—
a $100 value!
www.tripplite.com/warranty
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Copyright © 2017 Tripp Lite. All rights reserved.
1
17-03-302-93353D-EN.indd 1 3/23/2017 11:07:53 AM
Page 2
Product Features
• Extracts audio from an HDMI signal for use on a separate audio system
• Supports both 2-channel stereo audio and multichannel audio up to
5.1 surround sound
• Features 3.5 mm stereo audio, TOSLINK, and RCA digital audio outputs
• Supports uncompressed audio such as LPCM
• Supports compressed audio formats such as DTS® and Dolby® Digital
•
Transmits Ultra High Definition (UHD) video resolutions up to 3840 x 2160 @ 30 MHz
• Supports up to 24-bit True Color (8 bits per channel) at 4K and up to 36-bit Deep
Color (12 bits per channel) at 1080p
• Supports optional 3D formats up to 50/60 Hz
• Includes an international power supply with compatible North American, UK, European and Australian plug adapters
Package Contents
• P130-000-AUDIO
• External Power Supply* (Input: 100-240V, 50/60 Hz, 0.3A; Output: 5V, 1A)
• Mounting Hardware
• Owner’s Manual
* Includes NEMA 5-15P (North America), CEE 7/16 Schuko (Europe), BS 1363 (UK) and AS/NZS
3112 (Australia) plugs.
Optional Accessories
• A060-Series RF Digital Coax Audio Cables
• A102-Series TOSLINK Digital Audio Cables
• P312-Series 3.5 mm Stereo Audio Cables
• P568-Series High-Speed HDMI Cables
2
17-03-302-93353D-EN.indd 2 3/23/2017 11:07:53 AM
Page 3
Installation
Note: Make sure all devices you are connecting are powered off prior to installation.
1. Optional: Mount the unit to a wall or other surface using the included mounting
hardware.
2. Using an HDMI audio/video cable, connect the HDMI source to the HDMI input port
on the unit.
3. Using a second HDMI audio/video cable, connect an HDMI monitor to the HDMI
output port on the unit.
4. Connect the unit to a set of speakers, an audio receiver or other audio system
using the 3.5 mm stereo, TOSLINK or RCA digital outputs.
5. Connect the included external power supply to the unit and plug it into a Tripp Lite
Surge Protector, Power Distribution Unit (PDU) or Uninterruptible Power Supply
(UPS). The unit’s red Power LED will illuminate to indicate it is receiving power.
6. Turn on the power to the connected devices. The red Power LED will change to blue
to indicate the unit is transmitting video and audio from the source to the display
and sound system.
7. To switch between 2-channel stereo and 5.1-channel surround sound, press the
button next to the HDMI input port. When 2-channel stereo audio is selected, the
LED next to the button will not illuminate. When 5.1-channel surround sound is
selected, the LED will illuminate red.
Specifications
Input Port HDMI (Female)
Output Ports
Operating Temperature 32ºF to 158ºF / 0ºC to 70ºC
Storage Temperature 14ºF to 176ºF / -10ºC to 80ºC
Operating Humidity 10 to 85% RH, Non-Condensing
Storage Humidity 5 to 90% RH, Non-Condensing
External Power Supply Input: 100-240V, 50/60 Hz, 0.3A
Power Consumption 2.5W Max
Max Video Resolutions 3840 x 2160 @ 30 Hz / 1080p @ 60 Hz
Unit Dimensions (H x W x D) 0.83 x 2.8 x 2.4 in.
Unit Weight 0.3 lb
17-03-302-93353D-EN.indd 3 3/23/2017 11:07:54 AM
HDMI (Female), TOSLINK (Female), RCA (Female),
3.5 mm Stereo (Female)
Output: 5V, 1A
21 x 71 x 61 mm
0.14 kg
3
Page 4
Warranty and Product Registration
Tripp Lite warrants its products to be free from defects in materials and workmanship for a period of one (1) year from the date of
initial purchase. Tripp Lite’s obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective
products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from
Tripp Lite or an authorized Tripp Lite service center. Products must be returned to Tripp Lite or an authorized Tripp Lite service
center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof
of date and place of purchase. This warranty does not apply to equipment, which has been damaged by accident, negligence or
misapplication or has been altered or modified in any way.
EXCEPT AS PROVIDED HEREIN, Tripp Lite MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied
warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL Tripp Lite BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE. Specifically, Tripp Lite is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of
equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.
PRODUCT REGISTRATION
Visit www.tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a
chance to win a FREE Tripp Lite product!*
* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers
buy new electrical and electronic equipment from Tripp Lite they are entitled to:
• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste
FCC Notice, Class B
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user’s authority to operate this
equipment.
Warning
Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure
of the life support equipment or to significantly affect its safety or effectiveness is not recommended.
Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
