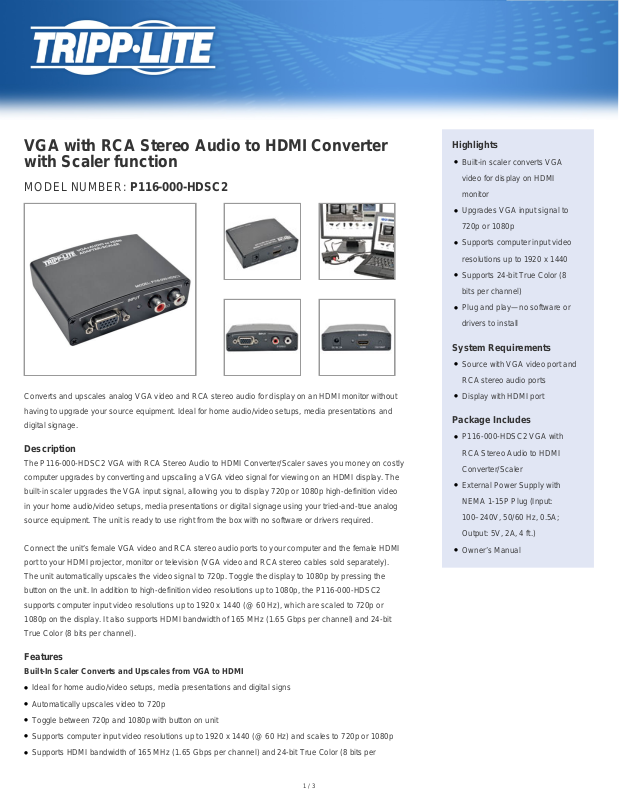

Tripp-Lite P116-000-HDSC2 Data Sheet

VGA with RCA Stereo Audio to HDMI Converter
with Scaler function

MODEL NUMBER: P116-000-HDSC2

Converts and upscales analog VGA video and RCA stereo audio for display on an HDMI monitor without
having to upgrade your source equipment. Ideal for home audio/video setups, media presentations and
digital signage.

Description

The P116-000-HDSC2 VGA with RCA Stereo Audio to HDMI Converter/Scaler saves you money on costly
computer upgrades by converting and upscaling a VGA video signal for viewing on an HDMI display. The
built-in scaler upgrades the VGA input signal, allowing you to display 720p or 1080p high-definition video
in your home audio/video setups, media presentations or digital signage using your tried-and-true analog
source equipment. The unit is ready to use right from the box with no software or drivers required.

Connect the unit’s female VGA video and RCA stereo audio ports to your computer and the female HDMI
port to your HDMI projector, monitor or television (VGA video and RCA stereo cables sold separately).
The unit automatically upscales the video signal to 720p. Toggle the display to 1080p by pressing the
button on the unit. In addition to high-definition video resolutions up to 1080p, the P116-000-HDSC2
supports computer input video resolutions up to 1920 x 1440 (@ 60 Hz), which are scaled to 720p or
1080p on the display. It also supports HDMI bandwidth of 165 MHz (1.65 Gbps per channel) and 24-bit
True Color (8 bits per channel).

Highlights

●

Built-in scaler converts VGA
video for display on HDMI
monitor

●

Upgrades VGA input signal to
720p or 1080p

●

Supports computer input video
resolutions up to 1920 x 1440

●

Supports 24-bit True Color (8
bits per channel)

●

Plug and play—no software or
drivers to install

System Requirements

●

Source with VGA video port and
RCA stereo audio ports

●

Display with HDMI port

Package Includes

●

P116-000-HDSC2 VGA with
RCA Stereo Audio to HDMI
Converter/Scaler

●

External Power Supply with
NEMA 1-15P Plug (Input:
100–240V, 50/60 Hz, 0.5A;
Output: 5V, 2A, 4 ft.)

●

Owner’s Manual

Features

Built-In Scaler Converts and Upscales from VGA to HDMI

●

Ideal for home audio/video setups, media presentations and digital signs

●

Automatically upscales video to 720p

●

Toggle between 720p and 1080p with button on unit

●

Supports computer input video resolutions up to 1920 x 1440 (@ 60 Hz) and scales to 720p or 1080p

●

Supports HDMI bandwidth of 165 MHz (1.65 Gbps per channel) and 24-bit True Color (8 bits per

1 / 3

channel)

Plug-and-Play Convenience

●

Ready to use right from the box—no software or drivers required

●

Connects easily to source’s VGA and RCA stereo ports and display’s HDMI port (VGA video and RCA
stereo cables sold separately)

●

Eliminates the need for costly equipment upgrades

Specifications

OVERVIEW

UPC Code 037332188342
AC Adapter Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 4 ft.

PHYSICAL

Color Black
Shipping Dimensions (hwd / cm) 6.10 x 17.02 x 12.70
Shipping Dimensions (hwd / in.) 2.40 x 6.70 x 5.00
Shipping Weight (kg) 0.91
Shipping Weight (lbs.) 2.00
Unit Dimensions (hwd / cm) 2.5 x 8.9 x 7.1
Unit Dimensions (hwd / in.) 1 x 3.5 x 2.8
Unit Weight (kg) 0.14
Unit Weight (lbs.) 0.3

ENVIRONMENTAL

Operating Temperature Range 32 to 158 F (0 to 70 C)
Storage Temperature Range 14 to 176 F (-10 to 80 C)
Operating Humidity Range 10 to 85% RH, Non-Condensing
Storage Humidity Range 5 to 95% RH, Non-Condensing

CONNECTIONS

Side A - Connector 1 HD15 (FEMALE)
Side A - Connector 2 (2) RCA (FEMALE)
Side B - Connector 1 HDMI (FEMALE)

FEATURES & SPECIFICATIONS

2 / 3
