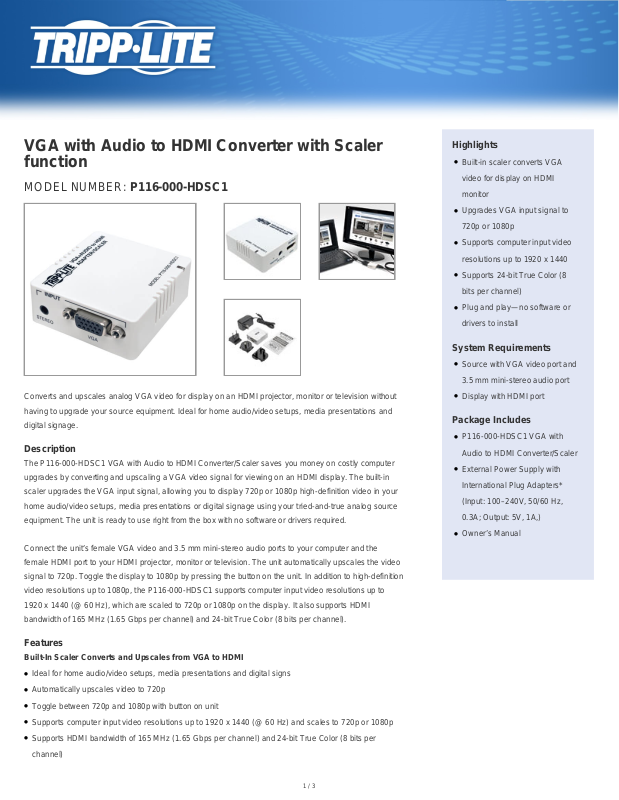

Tripp-Lite P116-000-HDSC1 Data Sheet

VGA with Audio to HDMI Converter with Scaler
function

MODEL NUMBER: P116-000-HDSC1

Converts and upscales analog VGA video for display on an HDMI projector, monitor or television without
having to upgrade your source equipment. Ideal for home audio/video setups, media presentations and
digital signage.

Description

The P116-000-HDSC1 VGA with Audio to HDMI Converter/Scaler saves you money on costly computer
upgrades by converting and upscaling a VGA video signal for viewing on an HDMI display. The built-in
scaler upgrades the VGA input signal, allowing you to display 720p or 1080p high-definition video in your
home audio/video setups, media presentations or digital signage using your tried-and-true analog source
equipment. The unit is ready to use right from the box with no software or drivers required.

Connect the unit’s female VGA video and 3.5 mm mini-stereo audio ports to your computer and the
female HDMI port to your HDMI projector, monitor or television. The unit automatically upscales the video
signal to 720p. Toggle the display to 1080p by pressing the button on the unit. In addition to high-definition
video resolutions up to 1080p, the P116-000-HDSC1 supports computer input video resolutions up to
1920 x 1440 (@ 60 Hz), which are scaled to 720p or 1080p on the display. It also supports HDMI
bandwidth of 165 MHz (1.65 Gbps per channel) and 24-bit True Color (8 bits per channel).

Highlights

●

Built-in scaler converts VGA
video for display on HDMI
monitor

●

Upgrades VGA input signal to
720p or 1080p

●

Supports computer input video
resolutions up to 1920 x 1440

●

Supports 24-bit True Color (8
bits per channel)

●

Plug and play—no software or
drivers to install

System Requirements

●

Source with VGA video port and

3.5 mm mini-stereo audio port

●

Display with HDMI port

Package Includes

●

P116-000-HDSC1 VGA with
Audio to HDMI Converter/Scaler

●

External Power Supply with
International Plug Adapters*
(Input: 100–240V, 50/60 Hz,

0.3A; Output: 5V, 1A,)

●

Owner’s Manual

Features

Built-In Scaler Converts and Upscales from VGA to HDMI

●

Ideal for home audio/video setups, media presentations and digital signs

●

Automatically upscales video to 720p

●

Toggle between 720p and 1080p with button on unit

●

Supports computer input video resolutions up to 1920 x 1440 (@ 60 Hz) and scales to 720p or 1080p

●

Supports HDMI bandwidth of 165 MHz (1.65 Gbps per channel) and 24-bit True Color (8 bits per
channel)

1 / 3

Plug-and-Play Convenience

●

Ready to use right from the box—no software or drivers required

●

Connects easily to source’s VGA and 3.5 mm mini-stereo ports and display’s HDMI port

●

Eliminates the need for costly equipment upgrades

●

Includes an International power supply with compatible North American, UK, European and Australian
plug adapters

Specifications

OVERVIEW

UPC Code 037332188335
AC Adapter Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 4 ft.

PHYSICAL

Color White
Shipping Dimensions (hwd / cm) 5.59 x 11.68 x 17.02
Shipping Dimensions (hwd / in.) 2.20 x 4.60 x 6.70
Shipping Weight (kg) 0.36
Shipping Weight (lbs.) 0.80
Unit Dimensions (hwd / cm) 2 x 5.6 x 6.1
Unit Dimensions (hwd / in.) 0.8 x 2.2 x 2.4
Unit Weight (kg) 0.05
Unit Weight (lbs.) 0.1

ENVIRONMENTAL

Operating Temperature Range 32 to 158 F (0 to 70 C)
Storage Temperature Range 14 to 176 F (-10 to 80 C)
Operating Humidity Range 10 to 85% RH, Non-Condensing
Storage Humidity Range 5 to 95% RH, Non-Condensing

CONNECTIONS

Side A - Connector 1 HD15 (FEMALE)
Side A - Connector 2 3.5MM (FEMALE)
Side B - Connector 1 HDMI (FEMALE)

FEATURES & SPECIFICATIONS
