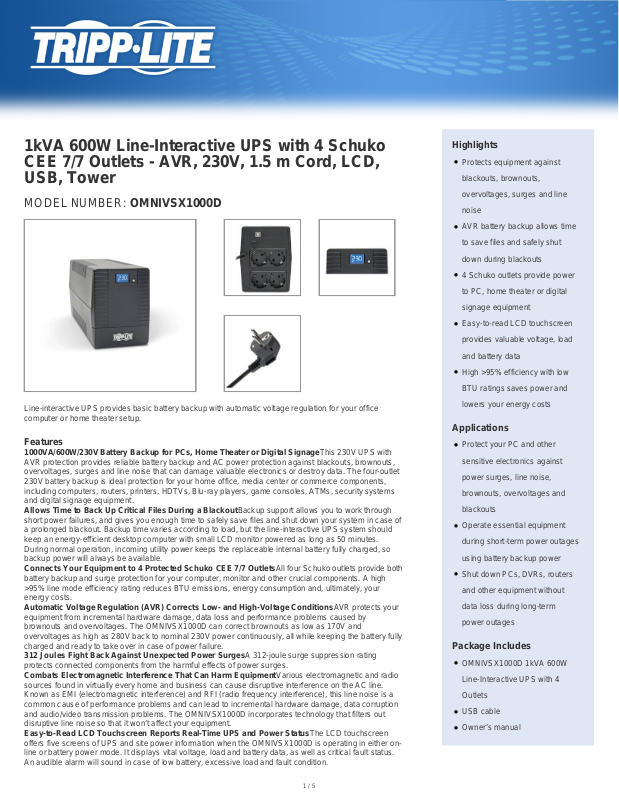

Page 1
1kVA 600W Line-Interactive UPS with 4 Schuko
CEE 7/7 Outlets - AVR, 230V, 1.5 m Cord, LCD,
USB, Tower
MODEL NUMBER: OMNIVSX1000D
Line-interactive UPS provides basic battery backup with automatic voltage regulation for your office
computer or home theater setup.
Features
1000VA/600W/230V Battery Backup for PCs, Home Theater or Digital SignageThis 230V UPS with
AVR protection provides reliable battery backup and AC power protection against blackouts, brownouts,
overvoltages, surges and line noise that can damage valuable electronics or destroy data. The four-outlet
230V battery backup is ideal protection for your home office, media center or commerce components,
including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems
and digital signage equipment.
Allows Time to Back Up Critical Files During a BlackoutBackup support allows you to work through
short power failures, and gives you enough time to safely save files and shut down your system in case of
a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should
keep an energy-efficient desktop computer with small LCD monitor powered as long as 50 minutes.
During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so
backup power will always be available.
Connects Your Equipment to 4 Protected Schuko CEE 7/7 OutletsAll four Schuko outlets provide both
battery backup and surge protection for your computer, monitor and other crucial components. A high
>95% line mode efficiency rating reduces BTU emissions, energy consumption and, ultimately, your
energy costs.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage ConditionsAVR protects your
equipment from incremental hardware damage, data loss and performance problems caused by
brownouts and overvoltages. The OMNIVSX1000D can correct brownouts as low as 170V and
overvoltages as high as 280V back to nominal 230V power continuously, all while keeping the battery fully
charged and ready to take over in case of power failure.
312 Joules Fight Back Against Unexpected Power SurgesA 312-joule surge suppression rating
protects connected components from the harmful effects of power surges.
Combats Electromagnetic Interference That Can Harm EquipmentVarious electromagnetic and radio
sources found in virtually every home and business can cause disruptive interference on the AC line.
Known as EMI (electromagnetic interference) and RFI (radio frequency interference), this line noise is a
common cause of performance problems and can lead to incremental hardware damage, data corruption
and audio/video transmission problems. The OMNIVSX1000D incorporates technology that filters out
disruptive line noise so that it won’t affect your equipment.
Easy-to-Read LCD Touchscreen Reports Real-Time UPS and Power StatusThe LCD touchscreen
offers five screens of UPS and site power information when the OMNIVSX1000D is operating in either online or battery power mode. It displays vital voltage, load and battery data, as well as critical fault status.
An audible alarm will sound in case of low battery, excessive load and fault condition.
Highlights
●
Protects equipment against
blackouts, brownouts,
overvoltages, surges and line
noise
●
AVR battery backup allows time
to save files and safely shut
down during blackouts
●
4 Schuko outlets provide power
to PC, home theater or digital
signage equipment
●
Easy-to-read LCD touchscreen
provides valuable voltage, load
and battery data
●
High >95% efficiency with low
BTU ratings saves power and
lowers your energy costs
Applications
●
Protect your PC and other
sensitive electronics against
power surges, line noise,
brownouts, overvoltages and
blackouts
●
Operate essential equipment
during short-term power outages
using battery backup power
●
Shut down PCs, DVRs, routers
and other equipment without
data loss during long-term
power outages
Package Includes
●
OMNIVSX1000D 1kVA 600W
Line-Interactive UPS with 4
Outlets
●
USB cable
●
Owner’s manual
1 / 5
Page 2
HID-Compliant USB Port Allows for Automatic Saves and ShutdownsThis port connects the
OMNIVSX1000D to a computer running Tripp Lite’s free downloadable PowerAlert® software to enable
safe unattended file saves and system shutdown in case of a prolonged power failure. USB cable is
included. The UPS works with Windows, Mac and Linux operating systems.
Tower Form Factor for Easy Placement in Your Workspace or Media CenterThe compact ABS
housing fits easily on a desktop, shelf or anywhere else convenient to your workstation or home theater.
The 1.5-meter power cord with Schuko CEE 7/7 plug connects to a properly grounded AC wall outlet.
Specifications
OVERVIEW
UPC Code 037332218193
UPS Type Line-Interactive
INPUT
Rated input current (Maximum Load) 4.3
Nominal Input Voltage(s) Supported 230V AC
UPS Input Connection Type CEE 7/7 Schuko
Input Circuit Breakers 7A breaker
UPS Input Cord Length (ft.) 5
UPS Input Cord Length (m) 1.5
Input Phase Single-Phase
OUTPUT
Output Volt Amp Capacity (VA) 1000
Output kVA Capacity (kVA) 1.0
Output Watt Capacity (Watts) 600
Nominal Voltage Details 230V nominal output in battery mode
Frequency Compatibility 50 / 60 Hz
Frequency Compatibility Details Automatic frequency selection
Output Voltage Regulation (Battery
Mode)
Output Receptacle Details Includes Schuko CEE 7/7 outlets
Output AC Waveform (AC Mode) Sine wave
Output AC Waveform (Battery
Mode)
Nominal Output Voltage(s)
Supported
Output Receptacles (4) CEE7/7
±10%
PWM sine wave
220V; 230V; 240V
Individually Controllable Load Banks No
2 / 5
Page 3
BATTERY
Half Load Runtime (min.) 5 minutes (300 watts)
DC System Voltage (VDC) 12
Battery Recharge Rate (Included
Batteries)
Internal UPS Replacement Battery
Cartridge
Less than 8 hours from 10% to 90%
<a class="productLink" href="// UPS-Replacement-Battery-Cartridge-Tripp-Lite-APC-Belkin-
Best-Powerware-Liebert-other-UPS~RBC51">RBC51</a>
Battery Replacement Description See manual for battery replacement information
Expandable Runtime No
VOLTAGE REGULATION
Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with a correction range from 170V to 280V
Overvoltage Correction Input voltages between 247 and 280 are reduced by 15%
Undervoltage Correction Input voltages between 170 and 207 are boosted by 18%
USER INTERFACE, ALERTS & CONTROLS
Front Panel LCD Display Touchscreen LCD indicates input voltage, output voltage, output load percentage and battery charge percentage;
Supports additional fault reporting (see manual); Touchscreen LCD remains lighted for 20 seconds in line power
mode after any user interaction and remains lighted full time in battery mode
Switches Power switch offers whole UPS off/on power control
Alarm Cancel Operation Alarm remains silent in battery power mode until low-battery condition occurs
Audible Alarm Audible alarm indicates low-battery condition during battery mode operation
SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating 312
UPS AC Suppression Response
Time
Instantaneous
EMI / RFI AC Noise Suppression Yes
PHYSICAL
Installation Form Factors Supported
with Included Accessories
Tower
Primary Form Factor Tower
Primary UPS Depth (mm) 345
Primary UPS Height (mm) 160
Primary UPS Width (mm) 122
Shipping Dimensions (hwd / in.) 9.80 x 14.20 x 23.60
Shipping Weight (kg) 6.99
UPS Housing Material ABS
3 / 5
Page 4
UPS Power Module Dimensions
(hwd, in.)
6.3 x 4.8 x 13.6
UPS Power Module Weight (kg) 6.49
UPS Power Module Weight (lbs.) 14.3
ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity Up to 90%, non-condensing
AC Mode BTU / Hr. (Full Load) 62
AC Mode Efficiency Rating (100%
Load)
>95%
Audible Noise Less than 40dB front side 1m
COMMUNICATIONS
Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions
PowerAlert Software For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at
http:// poweralert
Communications Cable USB cabling included
WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
Communications Interface USB (HID enabled)
LINE / BATTERY TRANSFER
Transfer Time 6 milliseconds
Low Voltage Transfer to Battery
Power (Setpoint)
High Voltage Transfer to Battery
Power (Setpoint)
170V
280V
SPECIAL FEATURES
Cold Start (Startup in Battery Mode
During a Power Failure)
Cold-start operation supported
High Availability UPS Features Automatic Voltage Regulation (AVR); Surge/noise protection
Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS
STANDARDS & COMPLIANCE
UPS Certifications CE; Tested to EAC (Belarus, Kazakhstan, Russia)
Certification Details IEC 62040-1:2008+A1:2013; EN62040-2:2006, IEC62040-2:2016, Category C2
WARRANTY
4 / 5
Page 5
Product Warranty Period
(International)
2-year limited warranty
© 2020 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https:// products/product-certification-agencies
5 / 5
