NEW! NetCommander®
Multi-User Cat5 IP KVM Switches
All-in-One System Control
at Your Fingertips
B072-0 32-I P4
Simple, Flexible System Control
Tripp Lite’s NetCommander Multi-User Cat5
IP KVM Switches are the smart solution for
controlling multiple servers and serial devices
from one monitor, keyboard and mouse. Designed
using the most advanced technology available,
these 1U switches feature rugged construction,
premium connectors and superior functionality
at prices that won’t break the bank. Intuitive
Web Configuration Interface with multi-level
authentication allows you to quickly and efficiently
manage your installation, while dual LAN and

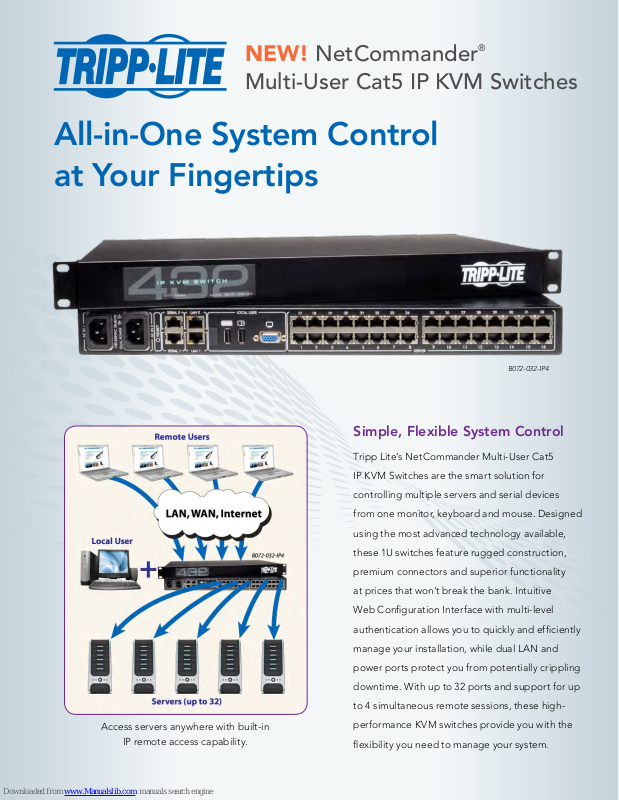

Access servers anywhere with built-in
IP remote access capability.
power ports protect you from potentially crippling
downtime. With up to 32 ports and support for up
to 4 simultaneous remote sessions, these high-
performance KVM switches provide you with the
flexibility you need to manage your system.
Page 2
Key Features
• Enable direct connection of up to 16 (B072-016-IP2
or B072-016-IP4) or 32 (B072-032-IP2 or B072-032-IP4)
computers/servers
• Support for 1 local and up to 2 (B072-016-IP2 or
B072-032-IP2) or 4 (B072-016-IP4 or B072-032-IP4)
simultaneous remote sessions
• Allow connected computers/servers to be located up
to 100 ft. from the KVM using inexpensive Cat5e/6
cabling and a B078-101-USB, B078-101-USB-1 or
B078-101-PS2 server interface module
• Dual serial ports enable connection of serial
manageable devices, like PDUs, firewalls and routers,
for access over IP
• Dual Ethernet ports and power supplies provide
redundancy in the event of a crash
• Enable control of a target server from any location
over a secure IP connection
• Make accessing connected computers a breeze; a
wide range of video and mouse sync settings ensure
optimal remote session performance in any situation
• Allow users to remotely control connected PDUs—
individual ports on the KVM can be assigned to a port
on the PDU, allowing you to Power Cycle or Power
ON/OFF connected servers without leaving the KVM
session screen
• Provide multi-level account access with the ability to
add up to 256 accounts
• Allow “system sent” messages to SNMP server to
notify of LAN or power failures
• Event logs record events that take place on the
installation, such as logins, reboots and changes to
network settings
• Support the highest levels of security standards for
encryption (128-bit AES and HTTPS)
• Support video with resolutions up to 1920 x 1080
(60 Hz)
• Upgradable firmware fine-tunes compatibility with
emerging standards
• Offer a level of affordability never before seen in a
multi-user IP KVM switch
A
A
Power Outlets
Reset Button
B
Image shows the back panel of a B072-032-IP4, but the back panel will be functionally the same for all models, with the only difference being the number of server ports.
SPECIFICATIONS
Model
B072-016-IP2 1 Local/2 Remote 16 x RJ45 (Female) YES YES YES B078-Series* VGA, USB, PS/2 2-year
B072-016-IP4 1 Local/4 Remote 16 x RJ45 (Female) YES YES YES B078-Series* VGA, USB, PS/2 2-year
B072-032-IP2 1 Local/2 Remote 32 x RJ45 (Female) YES YES YES B078-Series* VGA, USB, PS/2 2-year
B072-032-IP4 1 Local/4 Remote 32 x RJ45 (Female) YES YES YES B078-Series* VGA, USB, PS/2 2-year
* See owner’s manual or www.tripplite.com for exact model numbers.
# of Users
(Local/Remote) PC/Server Ports
Serial Ports 1 and 2
C
LAN Ports 1 and 2
D
Dual
Serial Ports
Dual LAN Ports/
Power Supplies
Control
IP PDU
FB C D E
Interface
Modules
Console KVM Ports
E
Server Ports
F
PC/Server
Compatibility Warranty
Tripp Lite manufactures more than 2,500
IT infrastructure solutions for data centers, server
rooms, network closets and other applications.
Visit www.tripplite.com for more information.
© 2013 Tripp Lite. All trademarks are the property of their respective owners. Photos may
differ slightly from actual products. Tripp Lite has a policy of continuous improvement.
Specifications are subject to change without notice.
