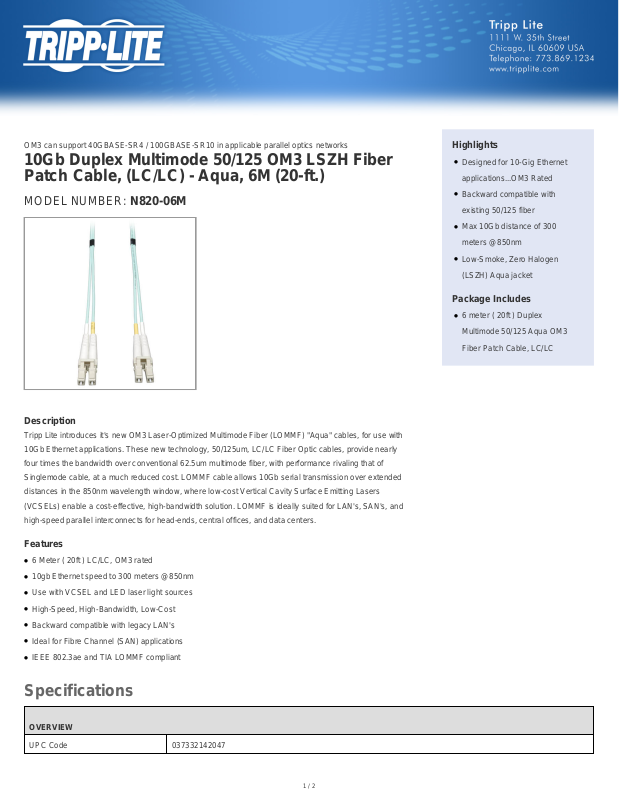

Tripp-Lite N820-06M Data Sheet

OM3 can support 40GBASE-SR4 / 100GBASE-SR10 in applicable parallel optics networks

10Gb Duplex Multimode 50/125 OM3 LSZH Fiber
Patch Cable, (LC/LC) - Aqua, 6M (20-ft.)

MODEL NUMBER: N820-06M

Description

Tripp Lite introduces it's new OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables, for use with
10Gb Ethernet applications. These new technology, 50/125um, LC/LC Fiber Optic cables, provide nearly
four times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of
Singlemode cable, at a much reduced cost. LOMMF cable allows 10Gb serial transmission over extended
distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers
(VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and
high-speed parallel interconnects for head-ends, central offices, and data centers.

Highlights

●

Designed for 10-Gig Ethernet
applications...OM3 Rated

●

Backward compatible with
existing 50/125 fiber

●

Max 10Gb distance of 300
meters @850nm

●

Low-Smoke, Zero Halogen
(LSZH) Aqua jacket

Package Includes

●

6 meter ( 20ft ) Duplex
Multimode 50/125 Aqua OM3
Fiber Patch Cable, LC/LC

Features

●

6 Meter ( 20ft ) LC/LC, OM3 rated

●

10gb Ethernet speed to 300 meters @850nm

●

Use with VCSEL and LED laser light sources

●

High-Speed, High-Bandwidth, Low-Cost

●

Backward compatible with legacy LAN's

●

Ideal for Fibre Channel (SAN) applications

●

IEEE 802.3ae and TIA LOMMF compliant

Specifications

OVERVIEW

UPC Code 037332142047

1 / 2

Optical Mode OM3

INPUT

Cable Length (ft.) 19.7
Cable Length (m) 6

PHYSICAL

Shipping Dimensions (hwd / in.) 0.10 x 6.20 x 8.00
Shipping Dimensions (hwd / cm) 0.25 x 15.75 x 20.32
Shipping Weight (lbs.) 0.20
Shipping Weight (kg) 0.09
Color Aqua

COMMUNICATIONS

Network Speed 10Gbps / 40Gbps / 100Gbps

CONNECTIONS

Side A - Connector 1 LC DUPLEX (MALE)
Side B - Connector 1 LC DUPLEX (MALE)

FEATURES & SPECIFICATIONS

Technology Multimode

WARRANTY

Product Warranty Period
(Worldwide)

Lifetime limited warranty
