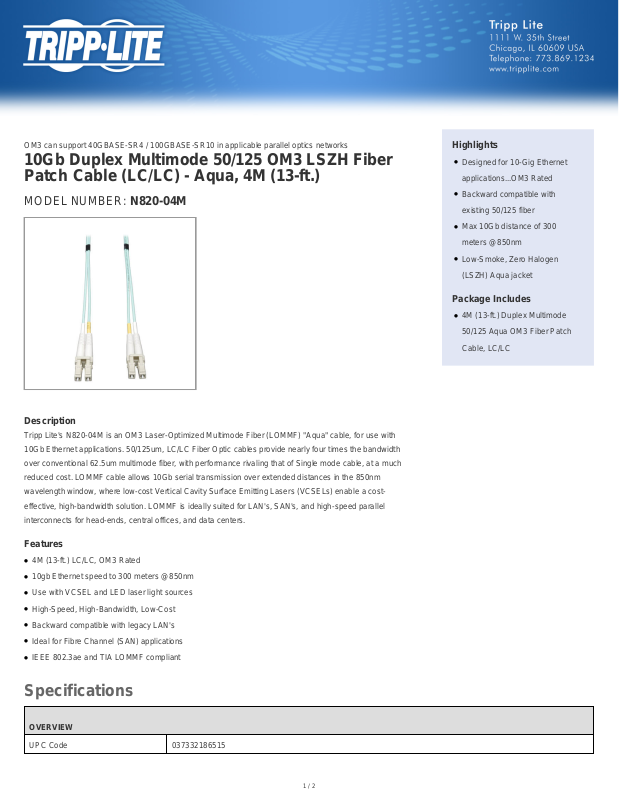

Tripp-Lite N820-04M Data Sheet

OM3 can support 40GBASE-SR4 / 100GBASE-SR10 in applicable parallel optics networks

10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable (LC/LC) - Aqua, 4M (13-ft.)

MODEL NUMBER: N820-04M

Description

Tripp Lite's N820-04M is an OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cable, for use with 10Gb Ethernet applications. 50/125um, LC/LC Fiber Optic cables provide nearly four times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Single mode cable, at a much reduced cost. LOMMF cable allows 10Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a costeffective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers.

Highlights

●

Designed for 10-Gig Ethernet applications...OM3 Rated

●

Backward compatible with existing 50/125 fiber

●

Max 10Gb distance of 300 meters @850nm

●

Low-Smoke, Zero Halogen (LSZH) Aqua jacket

Package Includes

●

4M (13-ft.) Duplex Multimode 50/125 Aqua OM3 Fiber Patch Cable, LC/LC

Features

●

4M (13-ft.) LC/LC, OM3 Rated

●

10gb Ethernet speed to 300 meters @850nm

●

Use with VCSEL and LED laser light sources

●

High-Speed, High-Bandwidth, Low-Cost

●

Backward compatible with legacy LAN's

●

Ideal for Fibre Channel (SAN) applications

●

IEEE 802.3ae and TIA LOMMF compliant

Specifications

OVERVIEW

UPC Code 037332186515

1 / 2

Clad Diameter 125um Core Diameter 50um Number of Fibers 2 Optical Mode OM3

INPUT

Cable Length (ft.) 13.1 Cable Length (m) 4

PHYSICAL

Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50 Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 1.27 Shipping Weight (lbs.) 0.08 Shipping Weight (kg) 0.04 Color Aqua

COMMUNICATIONS

Network Speed 10Gbps / 40Gbps / 100Gbps

CONNECTIONS

Side A - Connector 1 LC DUPLEX (MALE) Side B - Connector 1 LC DUPLEX (MALE)

FEATURES & SPECIFICATIONS

Technology Multimode

WARRANTY

Product Warranty Period (Worldwide)

Lifetime limited warranty
