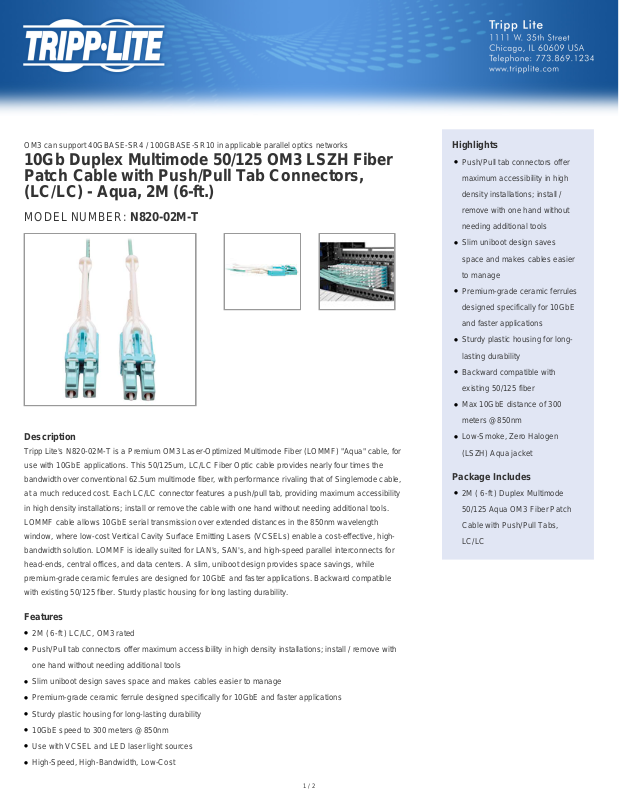

Tripp-Lite N820-02M-T Data Sheet

OM3 can support 40GBASE-SR4 / 100GBASE-SR10 in applicable parallel optics networks

10Gb Duplex Multimode 50/125 OM3 LSZH Fiber
Patch Cable with Push/Pull Tab Connectors,
(LC/LC) - Aqua, 2M (6-ft.)

MODEL NUMBER: N820-02M-T

Description

Tripp Lite's N820-02M-T is a Premium OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cable, for
use with 10GbE applications. This 50/125um, LC/LC Fiber Optic cable provides nearly four times the
bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable,
at a much reduced cost. Each LC/LC connector features a push/pull tab, providing maximum accessibility
in high density installations; install or remove the cable with one hand without needing additional tools.
LOMMF cable allows 10GbE serial transmission over extended distances in the 850nm wavelength
window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high­bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for
head-ends, central offices, and data centers. A slim, uniboot design provides space savings, while
premium-grade ceramic ferrules are designed for 10GbE and faster applications. Backward compatible
with existing 50/125 fiber. Sturdy plastic housing for long lasting durability.

Highlights

●

Push/Pull tab connectors offer
maximum accessibility in high
density installations; install /
remove with one hand without
needing additional tools

●

Slim uniboot design saves
space and makes cables easier
to manage

●

Premium-grade ceramic ferrules
designed specifically for 10GbE
and faster applications

●

Sturdy plastic housing for long­lasting durability

●

Backward compatible with
existing 50/125 fiber

●

Max 10GbE distance of 300
meters @850nm

●

Low-Smoke, Zero Halogen
(LSZH) Aqua jacket

Package Includes

●

2M ( 6-ft ) Duplex Multimode
50/125 Aqua OM3 Fiber Patch
Cable with Push/Pull Tabs,
LC/LC

Features

●

2M ( 6-ft ) LC/LC, OM3 rated

●

Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with
one hand without needing additional tools

●

Slim uniboot design saves space and makes cables easier to manage

●

Premium-grade ceramic ferrule designed specifically for 10GbE and faster applications

●

Sturdy plastic housing for long-lasting durability

●

10GbE speed to 300 meters @850nm

●

Use with VCSEL and LED laser light sources

●

High-Speed, High-Bandwidth, Low-Cost

1 / 2

●

Backward compatible with legacy LAN's

●

Ideal for Fibre Channel (SAN) applications

●

IEEE 802.3ae and TIA LOMMF compliant

Specifications

OVERVIEW

UPC Code 037332184481
Optical Mode OM3

INPUT

Cable Length (ft.) 6.6
Cable Length (m) 2

PHYSICAL

Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 1.27
Shipping Weight (lbs.) 0.04
Shipping Weight (kg) 0.02
Color Aqua

COMMUNICATIONS

Network Speed 10Gbps / 40Gbps / 100Gbps

CONNECTIONS

Side A - Connector 1 LC DUPLEX (MALE) WITH PULL/PUSH TAB
Side B - Connector 1 LC DUPLEX (MALE) WITH PULL/PUSH TAB

FEATURES & SPECIFICATIONS

Technology Multimode

WARRANTY

Product Warranty Period
(Worldwide)

Lifetime limited warranty
