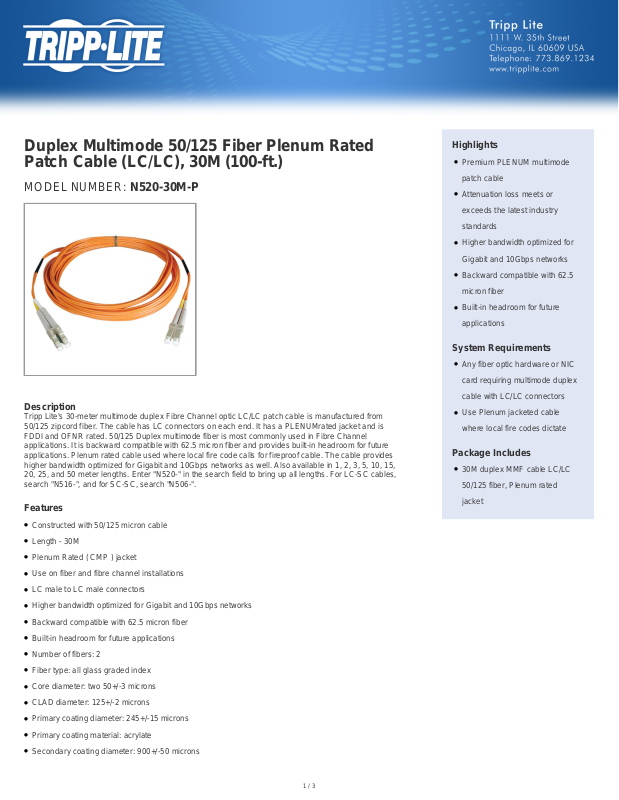

Tripp-Lite N520-30M-P Data Sheet
Duplex Multimode 50/125 Fiber Plenum Rated
Patch Cable (LC/LC), 30M (100-ft.)
MODEL NUMBER: N520-30M-P
Description
Tripp Lite's 30-meter multimode duplex Fibre Channel optic LC/LC patch cable is manufactured from
50/125 zipcord fiber. The cable has LC connectors on each end. It has a PLENUMrated jacket and is
FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel
applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future
applications. Plenum rated cable used where local fire code calls for fireproof cable. The cable provides
higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 1, 2, 3, 5, 10, 15,
20, 25, and 50 meter lengths. Enter "N520-" in the search field to bring up all lengths. For LC-SC cables,
search "N516-", and for SC-SC, search "N506-".
Features
●
Constructed with 50/125 micron cable
●
Length - 30M
●
Plenum Rated ( CMP ) jacket
●
Use on fiber and fibre channel installations
●
LC male to LC male connectors
●
Higher bandwidth optimized for Gigabit and 10Gbps networks
●
Backward compatible with 62.5 micron fiber
●
Built-in headroom for future applications
●
Number of fibers: 2
●
Fiber type: all glass graded index
●
Core diameter: two 50+/-3 microns
●
CLAD diameter: 125+/-2 microns
●
Primary coating diameter: 245+/-15 microns
●
Primary coating material: acrylate
●
Secondary coating diameter: 900+/-50 microns
Highlights
●
Premium PLENUM multimode
patch cable
●
Attenuation loss meets or
exceeds the latest industry
standards
●
Higher bandwidth optimized for
Gigabit and 10Gbps networks
●
Backward compatible with 62.5
micron fiber
●
Built-in headroom for future
applications
System Requirements
●
Any fiber optic hardware or NIC
card requiring multimode duplex
cable with LC/LC connectors
●
Use Plenum jacketed cable
where local fire codes dictate
Package Includes
●
30M duplex MMF cable LC/LC
50/125 fiber, Plenum rated
jacket
1 / 3
●
Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
●
Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
●
Numeric aperture: .275 nominal
●
Proof test level: 100,000 PSI
●
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
●
Beveled edge on ends of glass makes insertion of plug a breeze
Specifications
OVERVIEW
UPC Code 037332145314
Optical Mode OM2
INPUT
Cable Length (ft.) 98.4
Cable Length (m) 30
PHYSICAL
Shipping Dimensions (hwd / in.) 12.00 x 10.50 x 0.50
Shipping Dimensions (hwd / cm) 30.48 x 26.67 x 1.27
Shipping Weight (lbs.) 0.45
Shipping Weight (kg) 0.20
Color Orange
COMMUNICATIONS
Network Speed 1Gbps
CONNECTIONS
Side A - Connector 1 LC DUPLEX (MALE)
Side B - Connector 1 LC DUPLEX (MALE)
FEATURES & SPECIFICATIONS
Technology Multimode
WARRANTY
Product Warranty Period
(Worldwide)
Lifetime limited warranty
© 2018 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
