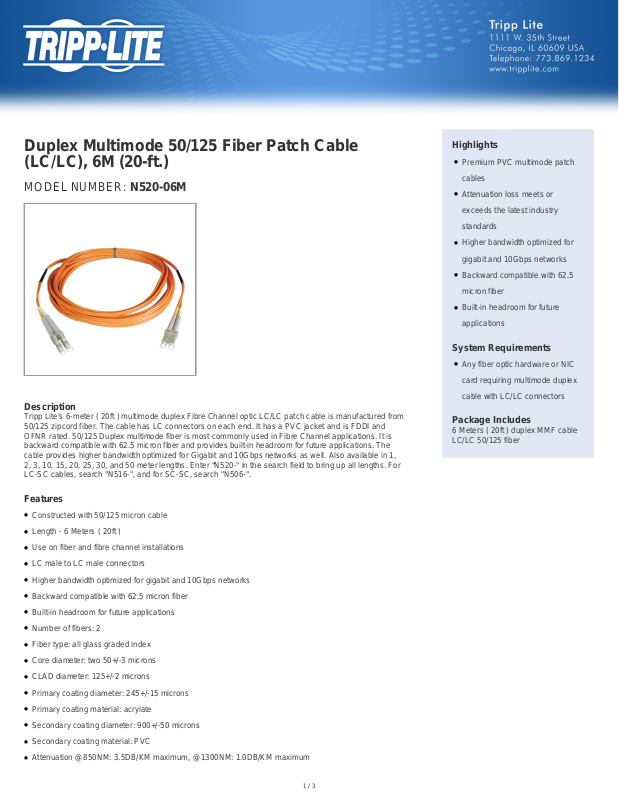

Tripp-Lite N520-06M Data Sheet

Duplex Multimode 50/125 Fiber Patch Cable
(LC/LC), 6M (20-ft.)

MODEL NUMBER: N520-06M

Description

Tripp Lite's 6-meter ( 20ft ) multimode duplex Fibre Channel optic LC/LC patch cable is manufactured from
50/125 zipcord fiber. The cable has LC connectors on each end. It has a PVC jacket and is FDDI and
OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is
backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The
cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 1,
2, 3, 10, 15, 20, 25, 30, and 50 meter lengths. Enter "N520-" in the search field to bring up all lengths. For
LC-SC cables, search "N516-", and for SC-SC, search "N506-".

Highlights

●

Premium PVC multimode patch
cables

●

Attenuation loss meets or
exceeds the latest industry
standards

●

Higher bandwidth optimized for
gigabit and 10Gbps networks

●

Backward compatible with 62.5
micron fiber

●

Built-in headroom for future
applications

System Requirements

●

Any fiber optic hardware or NIC
card requiring multimode duplex
cable with LC/LC connectors

Package Includes

6 Meters ( 20ft ) duplex MMF cable
LC/LC 50/125 fiber

Features

●

Constructed with 50/125 micron cable

●

Length - 6 Meters ( 20ft )

●

Use on fiber and fibre channel installations

●

LC male to LC male connectors

●

Higher bandwidth optimized for gigabit and 10Gbps networks

●

Backward compatible with 62.5 micron fiber

●

Built-in headroom for future applications

●

Number of fibers: 2

●

Fiber type: all glass graded index

●

Core diameter: two 50+/-3 microns

●

CLAD diameter: 125+/-2 microns

●

Primary coating diameter: 245+/-15 microns

●

Primary coating material: acrylate

●

Secondary coating diameter: 900+/-50 microns

●

Secondary coating material: PVC

●

Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum

1 / 3

●

Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum

●

Numeric aperture: .275 nominal

●

Proof test level: 100,000 PSI

●

Insertion loss testing performed on every connector (0.2db typical) and provided with cable

●

Beveled edge on ends of glass makes insertion of plug a breeze

Specifications

OVERVIEW

UPC Code 037332149244
Optical Mode OM2

INPUT

Cable Length (ft.) 19.7
Cable Length (m) 6

PHYSICAL

Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 1.27
Shipping Weight (lbs.) 0.10
Shipping Weight (kg) 0.05
Color Orange

COMMUNICATIONS

Network Speed 1Gbps

CONNECTIONS

Side A - Connector 1 LC DUPLEX (MALE)
Side B - Connector 1 LC DUPLEX (MALE)

FEATURES & SPECIFICATIONS

Technology Multimode

WARRANTY

Product Warranty Period
(Worldwide)

Lifetime limited warranty
