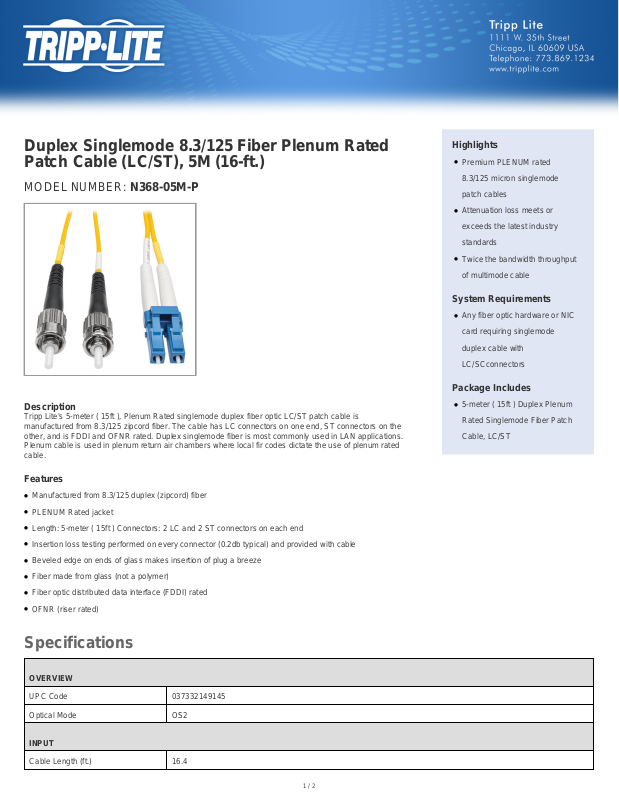

Tripp-Lite N368-05M-P Data Sheet

Duplex Singlemode 8.3/125 Fiber Plenum Rated
Patch Cable (LC/ST), 5M (16-ft.)

MODEL NUMBER: N368-05M-P

Description

Tripp Lite's 5-meter ( 15ft ), Plenum Rated singlemode duplex fiber optic LC/ST patch cable is
manufactured from 8.3/125 zipcord fiber. The cable has LC connectors on one end, ST connectors on the
other, and is FDDI and OFNR rated. Duplex singlemode fiber is most commonly used in LAN applications.
Plenum cable is used in plenum return air chambers where local fir codes dictate the use of plenum rated
cable.

Highlights

●

Premium PLENUM rated

8.3/125 micron singlemode
patch cables

●

Attenuation loss meets or
exceeds the latest industry
standards

●

Twice the bandwidth throughput
of multimode cable

System Requirements

●

Any fiber optic hardware or NIC
card requiring singlemode
duplex cable with
LC/SCconnectors

Package Includes

●

5-meter ( 15ft ) Duplex Plenum
Rated Singlemode Fiber Patch
Cable, LC/ST

Features

●

Manufactured from 8.3/125 duplex (zipcord) fiber

●

PLENUM Rated jacket

●

Length: 5-meter ( 15ft ) Connectors: 2 LC and 2 ST connectors on each end

●

Insertion loss testing performed on every connector (0.2db typical) and provided with cable

●

Beveled edge on ends of glass makes insertion of plug a breeze

●

Fiber made from glass (not a polymer)

●

Fiber optic distributed data interface (FDDI) rated

●

OFNR (riser rated)

Specifications

OVERVIEW

UPC Code 037332149145
Optical Mode OS2

INPUT

Cable Length (ft.) 16.4

1 / 2

Cable Length (m) 5

PHYSICAL

Shipping Dimensions (hwd / in.) 9.000 x 7.000 x 0.500
Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 1.27
Shipping Weight (lbs.) 0.0800
Shipping Weight (kg) 0.04
Color Yellow

CONNECTIONS

Side A - Connector 1 LC DUPLEX (MALE)
Side B - Connector 1 ST DUPLEX (MALE)

FEATURES & SPECIFICATIONS

Technology Singlemode

WARRANTY

Product Warranty Period
(Worldwide)

Lifetime limited warranty
