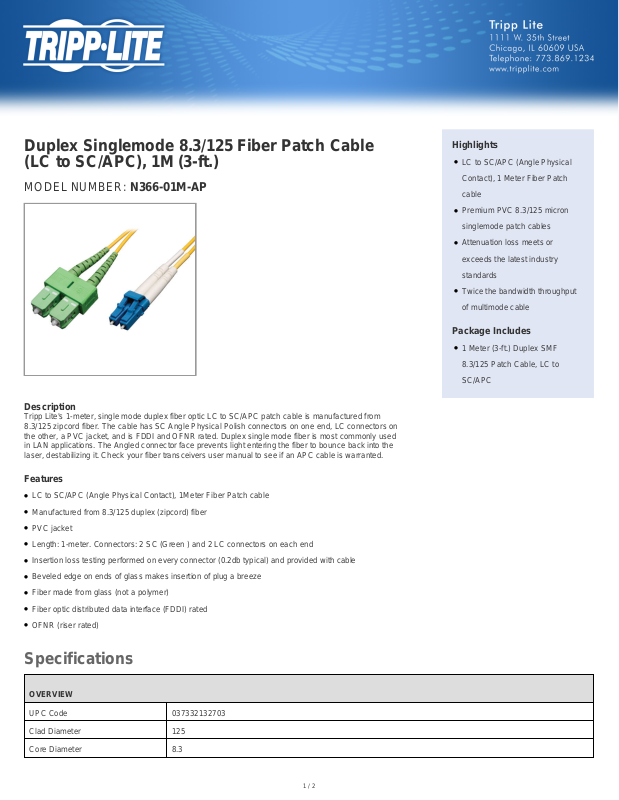

Tripp-Lite N366-01M-AP Data Sheet

Duplex Singlemode 8.3/125 Fiber Patch Cable
(LC to SC/APC), 1M (3-ft.)

MODEL NUMBER: N366-01M-AP

Description

Tripp Lite's 1-meter, single mode duplex fiber optic LC to SC/APC patch cable is manufactured from

8.3/125 zipcord fiber. The cable has SC Angle Physical Polish connectors on one end, LC connectors on
the other, a PVC jacket, and is FDDI and OFNR rated. Duplex single mode fiber is most commonly used
in LAN applications. The Angled connector face prevents light entering the fiber to bounce back into the
laser, destabilizing it. Check your fiber transceivers user manual to see if an APC cable is warranted.

Highlights

●

LC to SC/APC (Angle Physical
Contact), 1 Meter Fiber Patch
cable

●

Premium PVC 8.3/125 micron
singlemode patch cables

●

Attenuation loss meets or
exceeds the latest industry
standards

●

Twice the bandwidth throughput
of multimode cable

Package Includes

●

1 Meter (3-ft.) Duplex SMF

8.3/125 Patch Cable, LC to
SC/APC

Features

●

LC to SC/APC (Angle Physical Contact), 1Meter Fiber Patch cable

●

Manufactured from 8.3/125 duplex (zipcord) fiber

●

PVC jacket

●

Length: 1-meter. Connectors: 2 SC (Green ) and 2 LC connectors on each end

●

Insertion loss testing performed on every connector (0.2db typical) and provided with cable

●

Beveled edge on ends of glass makes insertion of plug a breeze

●

Fiber made from glass (not a polymer)

●

Fiber optic distributed data interface (FDDI) rated

●

OFNR (riser rated)

Specifications

OVERVIEW

UPC Code 037332132703
Clad Diameter 125
Core Diameter 8.3

1 / 2

Number of Fibers 2
Optical Mode OS2

INPUT

Cable Length (ft.) 3.3
Cable Length (m) 0.9

PHYSICAL

Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 1.27
Shipping Weight (lbs.) 0.04
Shipping Weight (kg) 0.02
Color Yellow

CONNECTIONS

Side A - Connector 1 LC DUPLEX (MALE)
Side B - Connector 1 SC DUPLEX (MALE)

FEATURES & SPECIFICATIONS

Technology Singlemode

WARRANTY

Product Warranty Period
(Worldwide)

Lifetime limited warranty
