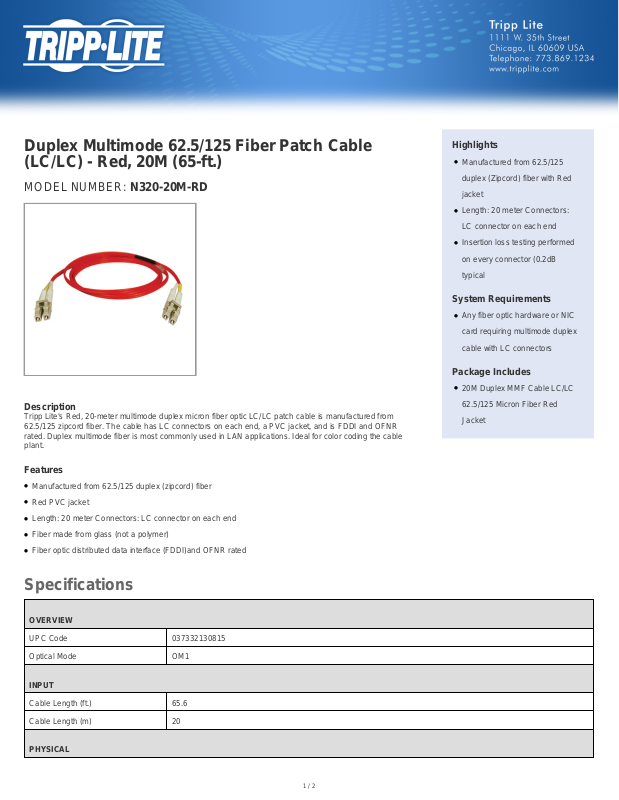

Tripp-Lite N320-20M-RD Data Sheet

Duplex Multimode 62.5/125 Fiber Patch Cable
(LC/LC) - Red, 20M (65-ft.)

MODEL NUMBER: N320-20M-RD

Description

Tripp Lite's Red, 20-meter multimode duplex micron fiber optic LC/LC patch cable is manufactured from

62.5/125 zipcord fiber. The cable has LC connectors on each end, a PVC jacket, and is FDDI and OFNR
rated. Duplex multimode fiber is most commonly used in LAN applications. Ideal for color coding the cable
plant.

Highlights

●

Manufactured from 62.5/125
duplex (Zipcord) fiber with Red
jacket

●

Length: 20 meter Connectors:
LC connector on each end

●

Insertion loss testing performed
on every connector (0.2dB
typical

System Requirements

●

Any fiber optic hardware or NIC
card requiring multimode duplex
cable with LC connectors

Package Includes

●

20M Duplex MMF Cable LC/LC

62.5/125 Micron Fiber Red
Jacket

Features

●

Manufactured from 62.5/125 duplex (zipcord) fiber

●

Red PVC jacket

●

Length: 20 meter Connectors: LC connector on each end

●

Fiber made from glass (not a polymer)

●

Fiber optic distributed data interface (FDDI)and OFNR rated

Specifications

OVERVIEW

UPC Code 037332130815
Optical Mode OM1

INPUT

Cable Length (ft.) 65.6
Cable Length (m) 20

PHYSICAL

1 / 2

Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.80
Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 2.03
Shipping Weight (lbs.) 0.25
Shipping Weight (kg) 0.11
Color Red

COMMUNICATIONS

Network Speed 1Gbps

CONNECTIONS

Side A - Connector 1 LC DUPLEX (MALE)
Side B - Connector 1 LC DUPLEX (MALE)

FEATURES & SPECIFICATIONS

Technology Multimode

WARRANTY

Product Warranty Period
(Worldwide)

Lifetime limited warranty
