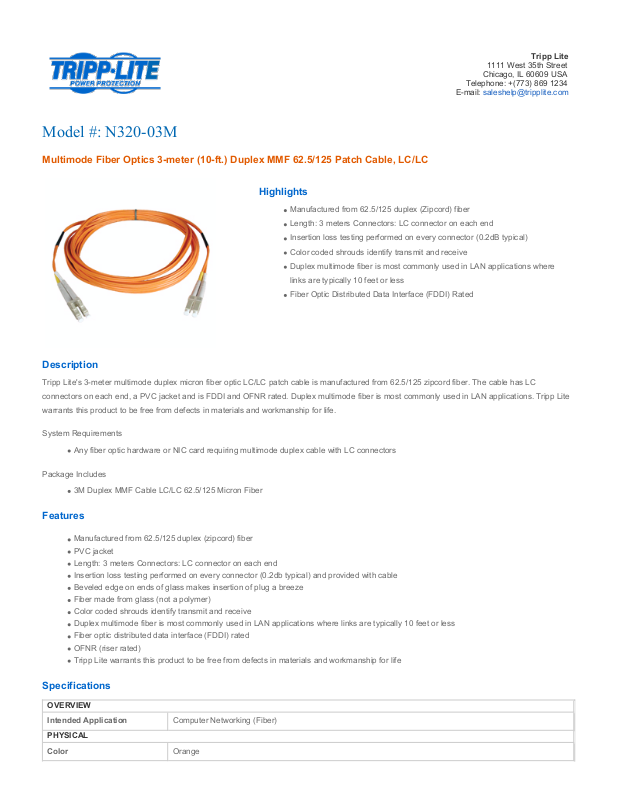

Tripp Lite N320-03M User Manual

Tripp Lite

1111 West 35th Street

Chicago, IL 60609 USA

Telephone: +(773) 869 1234

E-mail: saleshelp@tripplite.com

Model #: N320-03M

Multimode Fiber Optics 3-meter (10-ft.) Duplex MMF 62.5/125 Patch Cable, LC/LC

Highlights

Manufactured from 62.5/125 duplex (Zipcord) fiber

Length: 3 meters Connectors: LC connector on each end

Insertion loss testing performed on every connector (0.2dB typical)

Color coded shrouds identify transmit and receive

Duplex multimode fiber is most commonly used in LAN applications where

links are typically 10 feet or less

Fiber Optic Distributed Data Interface (FDDI) Rated

Description

Tripp Lite's 3-meter multimode duplex micron fiber optic LC/LC patch cable is manufactured from 62.5/125 zipcord fiber. The cable has LC

connectors on each end, a PVC jacket and is FDDI and OFNR rated. Duplex multimode fiber is most commonly used in LAN applications. Tripp Lite

warrants this product to be free from defects in materials and workmanship for life.

System Requirements

Any fiber optic hardware or NIC card requiring multimode duplex cable with LC connectors

Package Includes

3M Duplex MMF Cable LC/LC 62.5/125 Micron Fiber

Features

Manufactured from 62.5/125 duplex (zipcord) fiber

PVC jacket

Length: 3 meters Connectors: LC connector on each end

Insertion loss testing performed on every connector (0.2db typical) and provided with cable

Beveled edge on ends of glass makes insertion of plug a breeze

Fiber made from glass (not a polymer)

Color coded shrouds identify transmit and receive

Duplex multimode fiber is most commonly used in LAN applications where links are typically 10 feet or less

Fiber optic distributed data interface (FDDI) rated

OFNR (riser rated)

Tripp Lite warrants this product to be free from defects in materials and workmanship for life

Specifications

OVERVIEW

Intended Application Computer Networking (Fiber)

PHYSICAL

Color Orange

Style Fiber Optic

Length 3 m

CONNECTIONS

Connector A

Connector B

CERTIFICATIONS

Approvals FDDI and OFNR rated

Related Items

Fiber Optic Cables & Adapters

N302-010 Multimode Fiber Optics 10-ft. (3-meter) Duplex MMF 62.5/125 Patch Cable, ST/ST Qty: [optional]

N304-010 Multimode Fiber Optics 10-ft. (3-meter) Duplex MMF 62.5/125 Patch Cable, SC/ST Qty: [optional]

N306-010 Multimode Fiber Optics 10-ft. (3-meter) Duplex MMF 62.5/125 Patch Cable, SC/SC Qty: [optional]

N308-010 Multimode Fiber Optics 10-ft. (3-meter) Duplex MMF 62.5/125 Patch Cable, MTRJ/ST Qty: [optional]

N310-010 Multimode Fiber Optics 10-ft. (3-meter) Duplex MMF 62.5/125 Patch Cable, MTRJ/SC Qty: [optional]

N314-03M Multimode Fiber Optics 3-meter (10-ft.) Duplex MMF 62.5/125 Patch Cable, MTRJ/LC Qty: [optional]

N316-03M Multimode Fiber Optics 3-meter (10-ft.) Duplex MMF 62.5/125 Patch Cable, LC/SC Qty: [optional]

N320-05M Multimode Fiber Optics 5-meter (16-ft.) Duplex MMF 62.5/125 Patch Cable, LC/LC Qty: [optional]

N318-03M Multimode Fiber Optics 3-meter (10-ft.) Duplex MMF 62.5/125 Patch Cable, LC/ST Qty: [optional]

More information, including related products, owner's manuals, and additional technical specifications, can be found online at

www.tripplite.com/en/products/model.cfm?txtModelID=2526.
