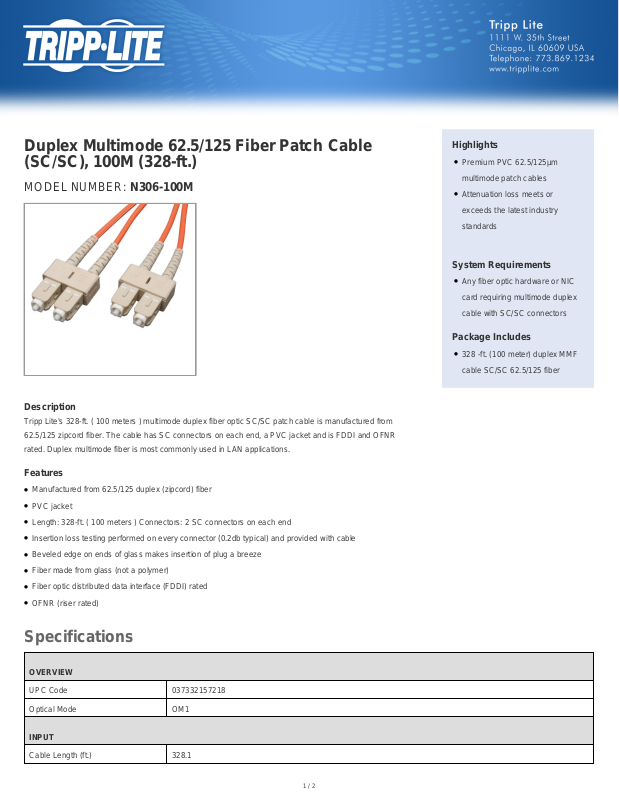

Tripp-Lite N306-100M Data Sheet

Duplex Multimode 62.5/125 Fiber Patch Cable
(SC/SC), 100M (328-ft.)

MODEL NUMBER: N306-100M

Description

Tripp Lite's 328-ft. ( 100 meters ) multimode duplex fiber optic SC/SC patch cable is manufactured from

62.5/125 zipcord fiber. The cable has SC connectors on each end, a PVC jacket and is FDDI and OFNR
rated. Duplex multimode fiber is most commonly used in LAN applications.

Highlights

●

Premium PVC 62.5/125µm
multimode patch cables

●

Attenuation loss meets or
exceeds the latest industry
standards

System Requirements

●

Any fiber optic hardware or NIC
card requiring multimode duplex
cable with SC/SC connectors

Package Includes

●

328 -ft. (100 meter) duplex MMF
cable SC/SC 62.5/125 fiber

Features

●

Manufactured from 62.5/125 duplex (zipcord) fiber

●

PVC jacket

●

Length: 328-ft. ( 100 meters ) Connectors: 2 SC connectors on each end

●

Insertion loss testing performed on every connector (0.2db typical) and provided with cable

●

Beveled edge on ends of glass makes insertion of plug a breeze

●

Fiber made from glass (not a polymer)

●

Fiber optic distributed data interface (FDDI) rated

●

OFNR (riser rated)

Specifications

OVERVIEW

UPC Code 037332157218
Optical Mode OM1

INPUT

Cable Length (ft.) 328.1

1 / 2

Cable Length (m) 100

PHYSICAL

Shipping Dimensions (hwd / in.) 10.20 x 10.20 x 4.70
Shipping Dimensions (hwd / cm) 25.91 x 25.91 x 11.94
Shipping Weight (lbs.) 2.80
Shipping Weight (kg) 1.27
Color Orange

COMMUNICATIONS

Network Speed 1Gbps

CONNECTIONS

Side A - Connector 1 SC DUPLEX (MALE)
Side B - Connector 1 SC DUPLEX (MALE)

FEATURES & SPECIFICATIONS

Technology Multimode

WARRANTY

Product Warranty Period
(Worldwide)

Lifetime limited warranty
