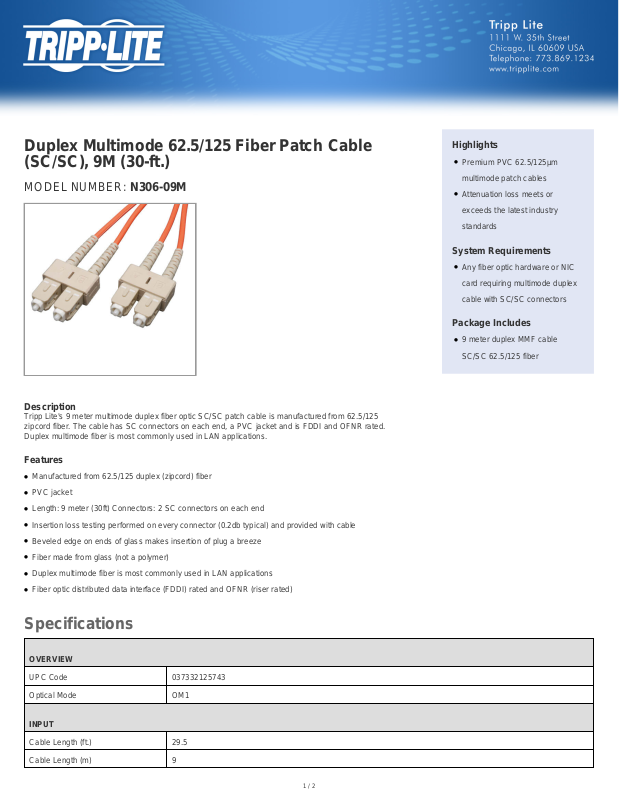

Tripp-Lite N306-09M Data Sheet

Duplex Multimode 62.5/125 Fiber Patch Cable
(SC/SC), 9M (30-ft.)

MODEL NUMBER: N306-09M

Description

Tripp Lite's 9 meter multimode duplex fiber optic SC/SC patch cable is manufactured from 62.5/125
zipcord fiber. The cable has SC connectors on each end, a PVC jacket and is FDDI and OFNR rated.
Duplex multimode fiber is most commonly used in LAN applications.

Highlights

●

Premium PVC 62.5/125µm
multimode patch cables

●

Attenuation loss meets or
exceeds the latest industry
standards

System Requirements

●

Any fiber optic hardware or NIC
card requiring multimode duplex
cable with SC/SC connectors

Package Includes

●

9 meter duplex MMF cable
SC/SC 62.5/125 fiber

Features

●

Manufactured from 62.5/125 duplex (zipcord) fiber

●

PVC jacket

●

Length: 9 meter (30ft) Connectors: 2 SC connectors on each end

●

Insertion loss testing performed on every connector (0.2db typical) and provided with cable

●

Beveled edge on ends of glass makes insertion of plug a breeze

●

Fiber made from glass (not a polymer)

●

Duplex multimode fiber is most commonly used in LAN applications

●

Fiber optic distributed data interface (FDDI) rated and OFNR (riser rated)

Specifications

OVERVIEW

UPC Code 037332125743
Optical Mode OM1

INPUT

Cable Length (ft.) 29.5
Cable Length (m) 9

1 / 2

PHYSICAL

Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 1.27
Shipping Weight (lbs.) 0.26
Shipping Weight (kg) 0.12
Color Orange

COMMUNICATIONS

Network Speed 1Gbps

CONNECTIONS

Side A - Connector 1 SC DUPLEX (MALE)
Side B - Connector 1 SC DUPLEX (MALE)

FEATURES & SPECIFICATIONS

Technology Multimode

WARRANTY

Product Warranty Period
(Worldwide)

Lifetime limited warranty
