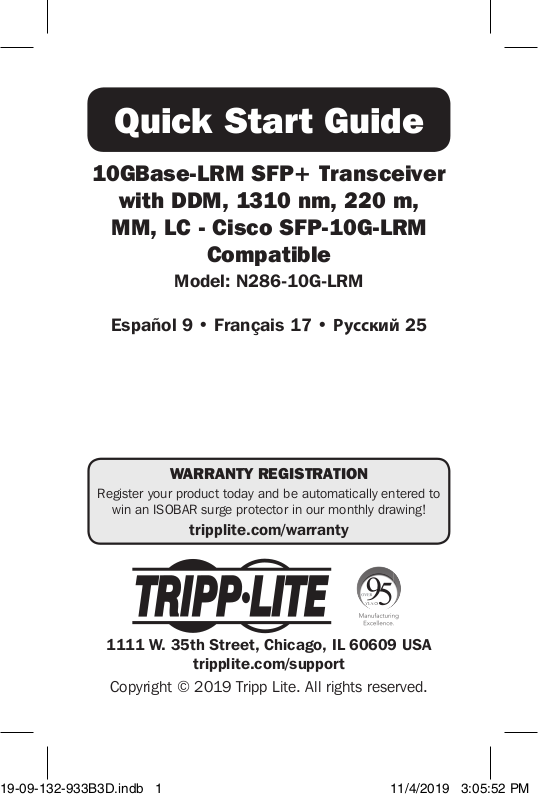

Tripp Lite N286-10G-LRM Quick Start Guide

Quick Start Guide

10GBase-LRM SFP+ Transceiver

with DDM, 1310 nm, 220 m,

MM, LC - Cisco SFP-10G-LRM

Compatible

Model: N286-10G-LRM

Español 9 • Français 17 • Русский 25

win an ISOBAR surge protector in our monthly drawing!

1111 W. 35th Street, Chicago, IL 60609 USA

19-09-132-933B3D.indb 1 11/4/2019 3:05:52 PM

WARRANTY REGISTRATION

tripplite.com/warranty

tripplite.com/support

Product Features

• 10GBase-LRM transceiver supports bi-directional data transfer rates up to

11.1 Gbps

• Transmission distance up to 721 ft. (220 m) when using 50/125 multimode fiber cabling

• Compliant with Common Management Spec SFF-8472 and SFF-8431 (with duplex LC receptacle)

• Supports Digital Diagnostic Monitoring (DDM)

• Full-metal housing emits low EMI

• Hot-pluggable

• Cisco switch compatible

Package Includes

• N286-10G-LRM

• Quick Start Guide

19-09-132-933B3D.indb 2 11/4/2019 3:05:52 PM

Optional Accessories

• N820-Series 10G Duplex Multimode 50/125 LC Fiber Cables

• P999-000 Anti-Static Wrist Strap

Installation

Notes:

• SFP transceiver modules are static-sensitive devices that require proper handling. An anti-static ESD wrist strap or similar device should always be used when handling a transceiver module.

• The transceiver module should never be installed with cables already connected. Always remove cables prior to installation to avoid damaging the cable, cable connectors, and/or optical interface.

• Installing and uninstalling the transceiver module numerous times will shorten its useful lifespan. Do not uninstall and reinstall the module more than is absolutely necessary.

1. Remove the transceiver module from its packaging. Make sure to leave the dust plug inserted in the LC optical bores.

19-09-132-933B3D.indb 3 11/4/2019 3:05:52 PM

Installation

2. Gently insert the transceiver module into the

module socket of your device. Press the dust plug until it locks into place.

3. Verify the transceiver module is locked into place by trying to remove it from the module socket without releasing the latch. If it stays in place, it is seated properly. If not, reinsert it by firmly pressing on the dust plug until it locks into place.

4. Once you have verified the transceiver module is locked securely in place, remove the dust plug from the LC optical bores and connect your cabling.

Note: Save the dust plug so it can be used in the event the transceiver module needs to be uninstalled and reinstalled.

19-09-132-933B3D.indb 4 11/4/2019 3:05:52 PM

Specifications

Industry Standards IEEE 802.3z Fiber Optic

Connector Type LC Duplex Maximum Data Transfer Rate Maximum Transmission Distance Wavelength 1310 nm Fiber Operating Mode Half/Full Duplex DDM (DOM) Support Yes Dimensions [H x W x D] 2.29 x 0.53 x 0.33 in.

Weight 0.68 oz. (19.4 g) Operating Temperature 32°F to 158°F

Storage Temperature -40°F to 185°F

Relative Humidity 5 to 85%, Non-Condensing Maximum TX Power 0 dB Minimum TX Power -4 dB Sensitivity -9 dB Power Budget 5 dB Power Requirement 3.3V Power Consumption 1.5 Watt (Max)

19-09-132-933B3D.indb 5 11/4/2019 3:05:52 PM

Gigabit Ethernet IEEE 802.3ae Fiber Optic 10 Gigabit Ethernet

11.1 Gbps

721 ft. (220 m) using 10G 50/125 MMF Cabling

(58.38 x 13.7 x 8.5 mm)

(0 to 70°C)

(-40 to 85°C)

Warranty and Product Registration

3-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 3 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion. Service under this Warranty can only be obtained by your delivering or shipping the product (with all shipping or delivery charges prepaid) to: Tripp Lite, 1111 W. 35th Street, Chicago, IL 60609 USA. Seller will pay return shipping charges. Visit tripplite.com/support before sending any equipment back for repair.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

19-09-132-933B3D.indb 6 11/4/2019 3:05:52 PM

Warranty and Product Registration

PRODUCT REGISTRATION

Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

19-09-132-933B3D.indb 7 11/4/2019 3:05:52 PM

Warranty and Product Registration

• Consult the dealer or an experienced radio/TV technician

for help.

Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user’s authority to operate this equipment.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)

• Send the new equipment back for recycling when this ultimately becomes waste

Tripp Lite has a policy of continuous improvement. Product specifications are subject to change without notice.

1111 W. 35th Street, Chicago, IL 60609 USA

19-09-132-933B3D.indb 8 11/4/2019 3:05:52 PM

tripplite.com/support

19-09-132 93-3B3D_RevA

Guía de Inicio Rápido

Transceptor SFP+ 10GBase-LRM

con DDM, 1310 nm, 220 m, MM,

LC – Compatible con Cisco

SFP-10G-LRM

Modelo: N286-10G-LRM

English 1 • Français 17 • Русский 25

1111 W. 35th Street, Chicago, IL 60609, EE. UU.

19-09-132-933B3D.indb 9 11/4/2019 3:05:52 PM

tripplite.com/support

Características del Producto

• El transceptor 10Gbase-LRM es compatible con velocidades de transferencia bidireccional de datos de hasta

11.1 Gbps.

• Distancia de transmisión hasta 220 m [721 pies] con cable de fibra multimodo de 50 μm / 125 μm

• Cumple con las Especificaciones SFF-8472 y SFF-8431 de Administración Común (con un conector LC dúplex)

• Soporta Monitoreo de Diagnóstico Digital [DDM]

• El gabinete totalmente de metal emite baja EMI

• Conexión directa

• Compatible con switches Cisco

El Paquete Incluye

• N286-10G-LRM

• Guía de Inicio Rápido

19-09-132-933B3D.indb 10 11/4/2019 3:05:52 PM
