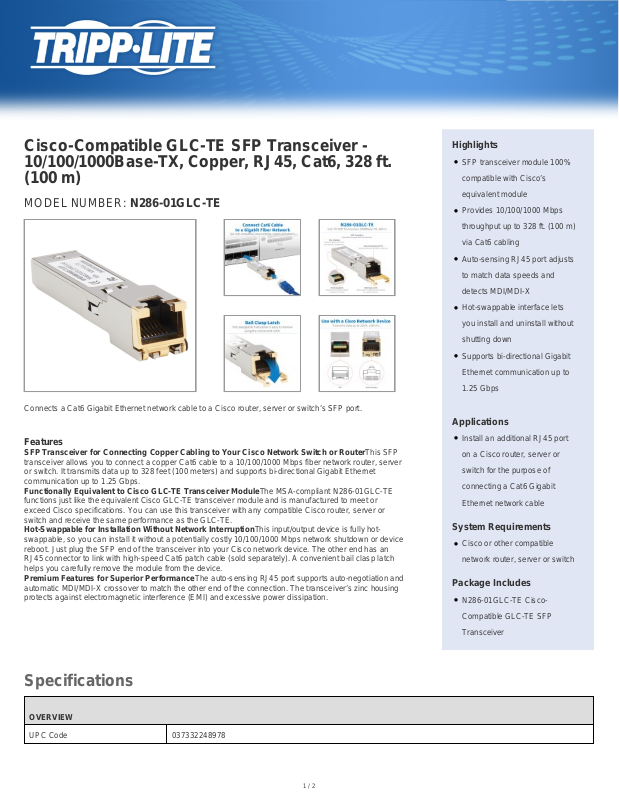

Tripp-Lite N286-01GLC-TE Data Sheet

Cisco-Compatible GLC-TE SFP Transceiver ­10/100/1000Base-TX, Copper, RJ45, Cat6, 328 ft.
(100 m)

MODEL NUMBER: N286-01GLC-TE

Connects a Cat6 Gigabit Ethernet network cable to a Cisco router, server or switch’s SFP port.

Features

SFP Transceiver for Connecting Copper Cabling to Your Cisco Network Switch or RouterThis SFP

transceiver allows you to connect a copper Cat6 cable to a 10/100/1000 Mbps fiber network router, server
or switch. It transmits data up to 328 feet (100 meters) and supports bi-directional Gigabit Ethernet
communication up to 1.25 Gbps.
Functionally Equivalent to Cisco GLC-TE Transceiver ModuleThe MSA-compliant N286-01GLC-TE
functions just like the equivalent Cisco GLC-TE transceiver module and is manufactured to meet or
exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or
switch and receive the same performance as the GLC-TE.
Hot-Swappable for Installation Without Network InterruptionThis input/output device is fully hot­swappable, so you can install it without a potentially costly 10/100/1000 Mbps network shutdown or device
reboot. Just plug the SFP end of the transceiver into your Cisco network device. The other end has an
RJ45 connector to link with high-speed Cat6 patch cable (sold separately). A convenient bail clasp latch
helps you carefully remove the module from the device.
Premium Features for Superior PerformanceThe auto-sensing RJ45 port supports auto-negotiation and
automatic MDI/MDI-X crossover to match the other end of the connection. The transceiver’s zinc housing
protects against electromagnetic interference (EMI) and excessive power dissipation.

Highlights

●

SFP transceiver module 100%
compatible with Cisco’s
equivalent module

●

Provides 10/100/1000 Mbps
throughput up to 328 ft. (100 m)
via Cat6 cabling

●

Auto-sensing RJ45 port adjusts
to match data speeds and
detects MDI/MDI-X

●

Hot-swappable interface lets
you install and uninstall without
shutting down

●

Supports bi-directional Gigabit
Ethernet communication up to

1.25 Gbps

Applications

●

Install an additional RJ45 port
on a Cisco router, server or
switch for the purpose of
connecting a Cat6 Gigabit
Ethernet network cable

System Requirements

●

Cisco or other compatible
network router, server or switch

Package Includes

●

N286-01GLC-TE Cisco­Compatible GLC-TE SFP
Transceiver

Specifications

OVERVIEW

UPC Code 037332248978

1 / 2

PHYSICAL

Color Silver
Unit Dimensions (hwd / cm) 0.85 x 1.34 x 5.66
Unit Dimensions (hwd / in.) 0.33 x 0.53 x 2.23
Unit Dimensions (hwd / mm) 8.5 x 13.4 x 56.6

ENVIRONMENTAL

Operating Temperature Range 32 to 158F (0 to 70C)
Storage Temperature Range -40 to 185F (-40 to 85C)
Relative Humidity 5% to 85%

COMMUNICATIONS

Network Speed 10/100 Mbps; 1Gbps

CONNECTIONS

Side A - Connector 1 SFP (MALE)
Side B - Connector 1 RJ45 (FEMALE)

FEATURES & SPECIFICATIONS

Driver Required No
Technology SFP+/QSPP+/QSFP28
Brand Compatibility Cisco
Transmission Distance 100 m
Multi-Source Agreement (MSA)

Compliant

SPECIAL FEATURES

Data Transfer Rate 1Gbps

WARRANTY

Product Warranty Period
(Worldwide)

Yes

3-year limited warranty
