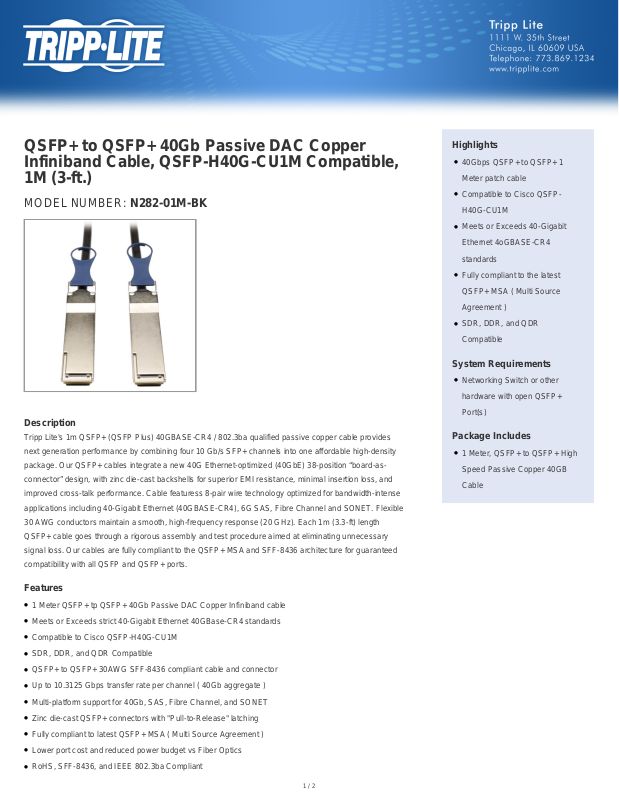

Tripp-Lite N282-01M-BK Data Sheet
QSFP+ to QSFP+ 40Gb Passive DAC Copper
Infiniband Cable, QSFP-H40G-CU1M Compatible,
1M (3-ft.)
MODEL NUMBER: N282-01M-BK
Description
Tripp Lite's 1m QSFP+ (QSFP Plus) 40GBASE-CR4 / 802.3ba qualified passive copper cable provides
next generation performance by combining four 10 Gb/s SFP+ channels into one affordable high-density
package. Our QSFP+ cables integrate a new 40G Ethernet-optimized (40GbE) 38-position “board-asconnector” design, with zinc die-cast backshells for superior EMI resistance, minimal insertion loss, and
improved cross-talk performance. Cable featuress 8-pair wire technology optimized for bandwidth-intense
applications including 40-Gigabit Ethernet (40GBASE-CR4), 6G SAS, Fibre Channel and SONET. Flexible
30 AWG conductors maintain a smooth, high-frequency response (20 GHz). Each 1m (3.3-ft) length
QSFP+ cable goes through a rigorous assembly and test procedure aimed at eliminating unnecessary
signal loss. Our cables are fully compliant to the QSFP+ MSA and SFF-8436 architecture for guaranteed
compatibility with all QSFP and QSFP+ ports.
Highlights
●
40Gbps QSFP+ to QSFP+ 1
Meter patch cable
●
Compatible to Cisco QSFPH40G-CU1M
●
Meets or Exceeds 40-Gigabit
Ethernet 4oGBASE-CR4
standards
●
Fully compliant to the latest
QSFP+ MSA ( Multi Source
Agreement )
●
SDR, DDR, and QDR
Compatible
System Requirements
●
Networking Switch or other
hardware with open QSFP+
Port(s)
Package Includes
●
1 Meter, QSFP+ to QSFP+ High
Speed Passive Copper 40GB
Cable
Features
●
1 Meter QSFP+ tp QSFP+ 40Gb Passive DAC Copper Infiniband cable
●
Meets or Exceeds strict 40-Gigabit Ethernet 40GBase-CR4 standards
●
Compatible to Cisco QSFP-H40G-CU1M
●
SDR, DDR, and QDR Compatible
●
QSFP+ to QSFP+ 30AWG SFF-8436 compliant cable and connector
●
Up to 10.3125 Gbps transfer rate per channel ( 40Gb aggregate )
●
Multi-platform support for 40Gb, SAS, Fibre Channel, and SONET
●
Zinc die-cast QSFP+ connectors with "Pull-to-Release" latching
●
Fully compliant to latest QSFP+ MSA ( Multi Source Agreement )
●
Lower port cost and reduced power budget vs Fiber Optics
●
RoHS, SFF-8436, and IEEE 802.3ba Compliant
1 / 2
●
BER better than 10¹²
Specifications
OVERVIEW
UPC Code 037332181541
INPUT
Cable Length (ft.) 3.3
Cable Length (m) 1
PHYSICAL
Wire Gauge (AWG) 30
Shipping Dimensions (hwd / in.) 0.25 x 9.20 x 11.20
Shipping Dimensions (hwd / cm) 0.64 x 23.37 x 28.45
Shipping Weight (lbs.) 0.30
Shipping Weight (kg) 0.14
Color Black
CONNECTIONS
Side A - Connector 1 QSFP+ (MALE)
Side B - Connector 1 QSFP+ (MALE)
FEATURES & SPECIFICATIONS
Technology SFP+/QSPP+/QSFP28
CERTIFICATIONS
Certifications MSA SFF-8436 and RoHS compliant
WARRANTY
Product Warranty Period
(Worldwide)
Lifetime limited warranty
© 2018 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https://www.tripplite.com/products/product-certification-agencies
