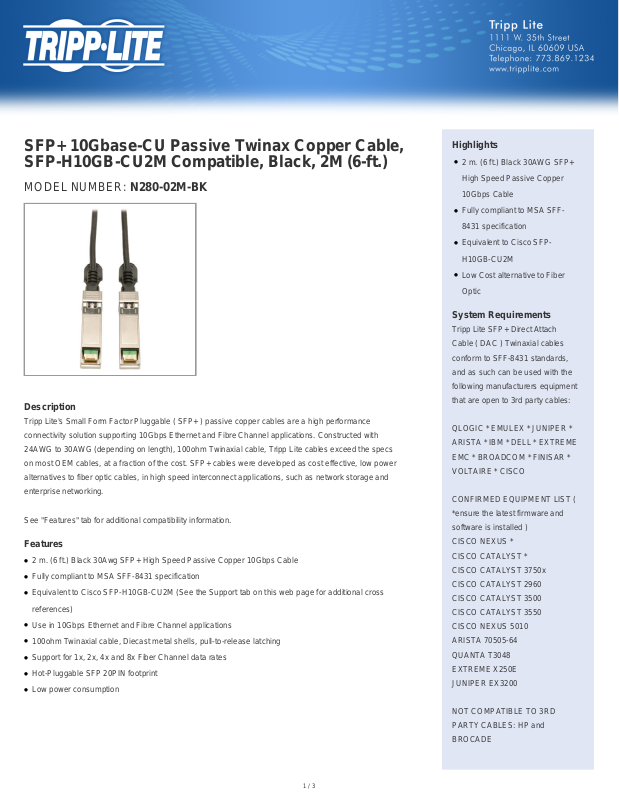

Tripp-Lite N280-02M-BK Data Sheet

SFP+ 10Gbase-CU Passive Twinax Copper Cable,
SFP-H10GB-CU2M Compatible, Black, 2M (6-ft.)

MODEL NUMBER: N280-02M-BK

Description

Tripp Lite's Small Form Factor Pluggable ( SFP+ ) passive copper cables are a high performance
connectivity solution supporting 10Gbps Ethernet and Fibre Channel applications. Constructed with
24AWG to 30AWG (depending on length), 100ohm Twinaxial cable, Tripp Lite cables exceed the specs
on most OEM cables, at a fraction of the cost. SFP+ cables were developed as cost effective, low power
alternatives to fiber optic cables, in high speed interconnect applications, such as network storage and
enterprise networking.

See "Features" tab for additional compatibility information.

Features

●

2 m. (6 ft.) Black 30Awg SFP+ High Speed Passive Copper 10Gbps Cable

●

Fully compliant to MSA SFF-8431 specification

●

Equivalent to Cisco SFP-H10GB-CU2M (See the Support tab on this web page for additional cross
references)

●

Use in 10Gbps Ethernet and Fibre Channel applications

●

100ohm Twinaxial cable, Diecast metal shells, pull-to-release latching

●

Support for 1x, 2x, 4x and 8x Fiber Channel data rates

●

Hot-Pluggable SFP 20PIN footprint

●

Low power consumption

Highlights

●

2 m. (6 ft.) Black 30AWG SFP+
High Speed Passive Copper
10Gbps Cable

●

Fully compliant to MSA SFF­8431 specification

●

Equivalent to Cisco SFP­H10GB-CU2M

●

Low Cost alternative to Fiber
Optic

System Requirements

Tripp Lite SFP+ Direct Attach
Cable ( DAC ) Twinaxial cables
conform to SFF-8431 standards,
and as such can be used with the
following manufacturers equipment
that are open to 3rd party cables:

QLOGIC * EMULEX * JUNIPER *
ARISTA * IBM * DELL * EXTREME
EMC * BROADCOM * FINISAR *
VOLTAIRE * CISCO

CONFIRMED EQUIPMENT LIST (
*ensure the latest firmware and
software is installed )
CISCO NEXUS *
CISCO CATALYST *
CISCO CATALYST 3750x
CISCO CATALYST 2960
CISCO CATALYST 3500
CISCO CATALYST 3550
CISCO NEXUS 5010
ARISTA 70505-64
QUANTA T3048
EXTREME X250E
JUNIPER EX3200

1 / 3

NOT COMPATIBLE TO 3RD
PARTY CABLES: HP and
BROCADE

Specifications

OVERVIEW

UPC Code 037332178145

INPUT

Cable Length (ft.) 6.6
Cable Length (m) 2

PHYSICAL

Wire Gauge (AWG) 30
Shipping Dimensions (hwd / in.) 12.000 x 10.500 x 0.500

Package Includes

●

2 m. (6 ft.) Black 30Awg SFP+
High Speed Passive Copper
10Gbps Cable

Shipping Dimensions (hwd / cm) 30.48 x 26.67 x 1.27
Shipping Weight (lbs.) 0.2600
Shipping Weight (kg) 0.12
Color Black

CONNECTIONS

Side A - Connector 1 SFP+ (MALE)
Side B - Connector 1 SFP+ (MALE)

FEATURES & SPECIFICATIONS

Technology SFP+/QSPP+/QSFP28

CERTIFICATIONS

Certifications RoHS compliant

WARRANTY

Product Warranty Period
(Worldwide)

Lifetime limited warranty
