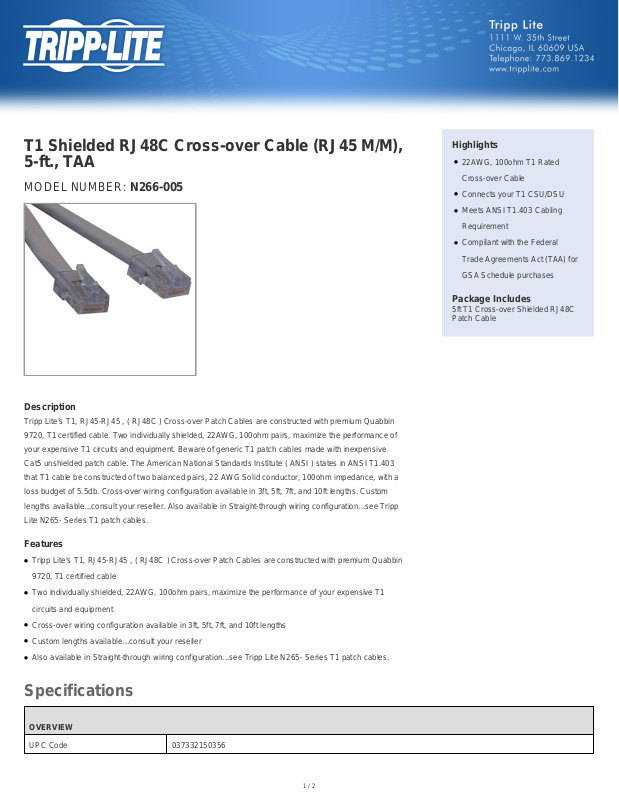

Tripp-Lite N266-005 Data Sheet

T1 Shielded RJ48C Cross-over Cable (RJ45 M/M),
5-ft., TAA

MODEL NUMBER: N266-005

Description

Tripp Lite's T1, RJ45-RJ45 , ( RJ48C ) Cross-over Patch Cables are constructed with premium Quabbin
9720, T1 certified cable. Two individually shielded, 22AWG, 100ohm pairs, maximize the performance of
your expensive T1 circuits and equipment. Beware of generic T1 patch cables made with inexpensive
Cat5 unshielded patch cable. The American National Standards Institute ( ANSI ) states in ANSI T1.403
that T1 cable be constructed of two balanced pairs, 22 AWG Solid conductor, 100ohm impedance, with a
loss budget of 5.5db. Cross-over wiring configuration available in 3ft, 5ft, 7ft, and 10ft lengths. Custom
lengths available...consult your reseller. Also available in Straight-through wiring configuration...see Tripp
Lite N265- Series T1 patch cables.

Highlights

●

22AWG, 100ohm T1 Rated
Cross-over Cable

●

Connects your T1 CSU/DSU

●

Meets ANSI T1.403 Cabling
Requirement

●

Compliant with the Federal
Trade Agreements Act (TAA) for
GSA Schedule purchases

Package Includes

5ft T1 Cross-over Shielded RJ48C
Patch Cable

Features

●

Tripp Lite's T1, RJ45-RJ45 , ( RJ48C ) Cross-over Patch Cables are constructed with premium Quabbin
9720, T1 certified cable

●

Two individually shielded, 22AWG, 100ohm pairs, maximize the performance of your expensive T1
circuits and equipment

●

Cross-over wiring configuration available in 3ft, 5ft, 7ft, and 10ft lengths

●

Custom lengths available...consult your reseller

●

Also available in Straight-through wiring configuration...see Tripp Lite N265- Series T1 patch cables.

Specifications

OVERVIEW

UPC Code 037332150356

1 / 2

INPUT

Cable Length (ft.) 5
Cable Length (m) 1.5

PHYSICAL

Shipping Dimensions (hwd / in.) 12.000 x 10.000 x 0.500
Shipping Dimensions (hwd / cm) 30.48 x 25.40 x 1.27
Shipping Weight (lbs.) 0.1900
Shipping Weight (kg) 0.09
Color Beige

CONNECTIONS

Side A - Connector 1 RJ45 (MALE)
Side B - Connector 1 RJ45 (MALE)

FEATURES & SPECIFICATIONS

Technology T1

WARRANTY

Product Warranty Period
(Worldwide)

Lifetime limited warranty
