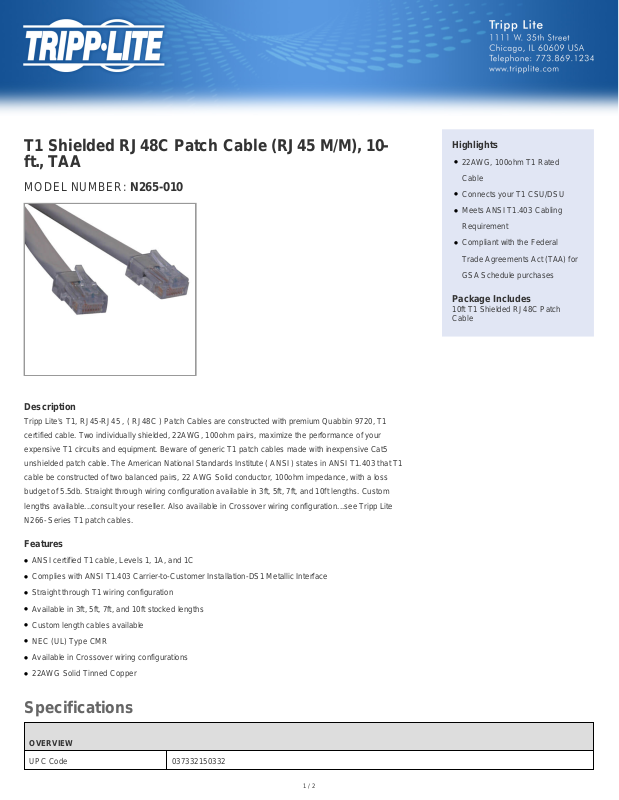

Tripp-Lite N265-010 Data Sheet

T1 Shielded RJ48C Patch Cable (RJ45 M/M), 10ft., TAA

MODEL NUMBER: N265-010

Description

Tripp Lite's T1, RJ45-RJ45 , ( RJ48C ) Patch Cables are constructed with premium Quabbin 9720, T1 certified cable. Two individually shielded, 22AWG, 100ohm pairs, maximize the performance of your expensive T1 circuits and equipment. Beware of generic T1 patch cables made with inexpensive Cat5 unshielded patch cable. The American National Standards Institute ( ANSI ) states in ANSI T1.403 that T1 cable be constructed of two balanced pairs, 22 AWG Solid conductor, 100ohm impedance, with a loss budget of 5.5db. Straight through wiring configuration available in 3ft, 5ft, 7ft, and 10ft lengths. Custom lengths available...consult your reseller. Also available in Crossover wiring configuration...see Tripp Lite N266- Series T1 patch cables.

Highlights

●

22AWG, 100ohm T1 Rated Cable

●

Connects your T1 CSU/DSU

●

Meets ANSI T1.403 Cabling Requirement

●

Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Package Includes

10ft T1 Shielded RJ48C Patch Cable

Features

●

ANSI certified T1 cable, Levels 1, 1A, and 1C

●

Complies with ANSI T1.403 Carrier-to-Customer Installation-DS1 Metallic Interface

●

Straight through T1 wiring configuration

●

Available in 3ft, 5ft, 7ft, and 10ft stocked lengths

●

Custom length cables available

●

NEC (UL) Type CMR

●

Available in Crossover wiring configurations

●

22AWG Solid Tinned Copper

Specifications

OVERVIEW

UPC Code 037332150332

1 / 2

INPUT

Cable Length (ft.) 10 Cable Length (m) 3.1

PHYSICAL

Shipping Dimensions (hwd / in.) 0.500 x 9.000 x 9.300 Shipping Dimensions (hwd / cm) 1.27 x 22.86 x 23.62 Shipping Weight (lbs.) 0.2000 Shipping Weight (kg) 0.09 Color Beige

CONNECTIONS

Side A - Connector 1 RJ45 (MALE) Side B - Connector 1 RJ45 (MALE)

FEATURES & SPECIFICATIONS

Technology T1

WARRANTY

Product Warranty Period (Worldwide)

Lifetime limited warranty
